Suffolk SS100 - Body to Chassis Fixing Locations

SS100 Build Manual (Export Edition) Rev 10 November 2013
Page 88

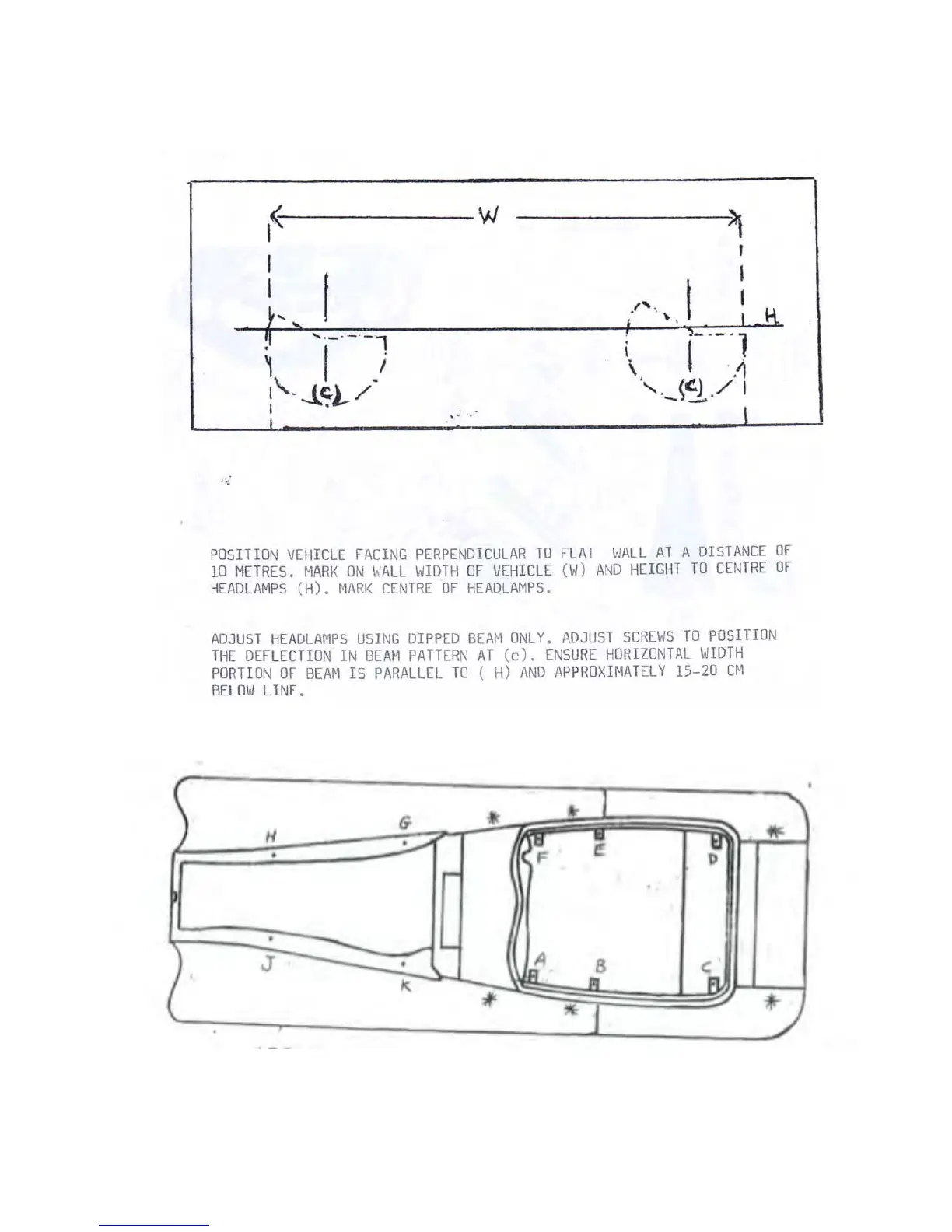

Figure 16 – Headlamp alignment
Figure 17 – Body to Chassis Fixing Locations
Positions B,C,D and E are the main horizontal mounting points (spacers supplied if needed)
G,H,J and K are bonnet hook mounting points (spacers supplied if needed)
A and F horizontal mounts and vertical positions which are marked with stars
will need spacers made keeping body in its natural position.
