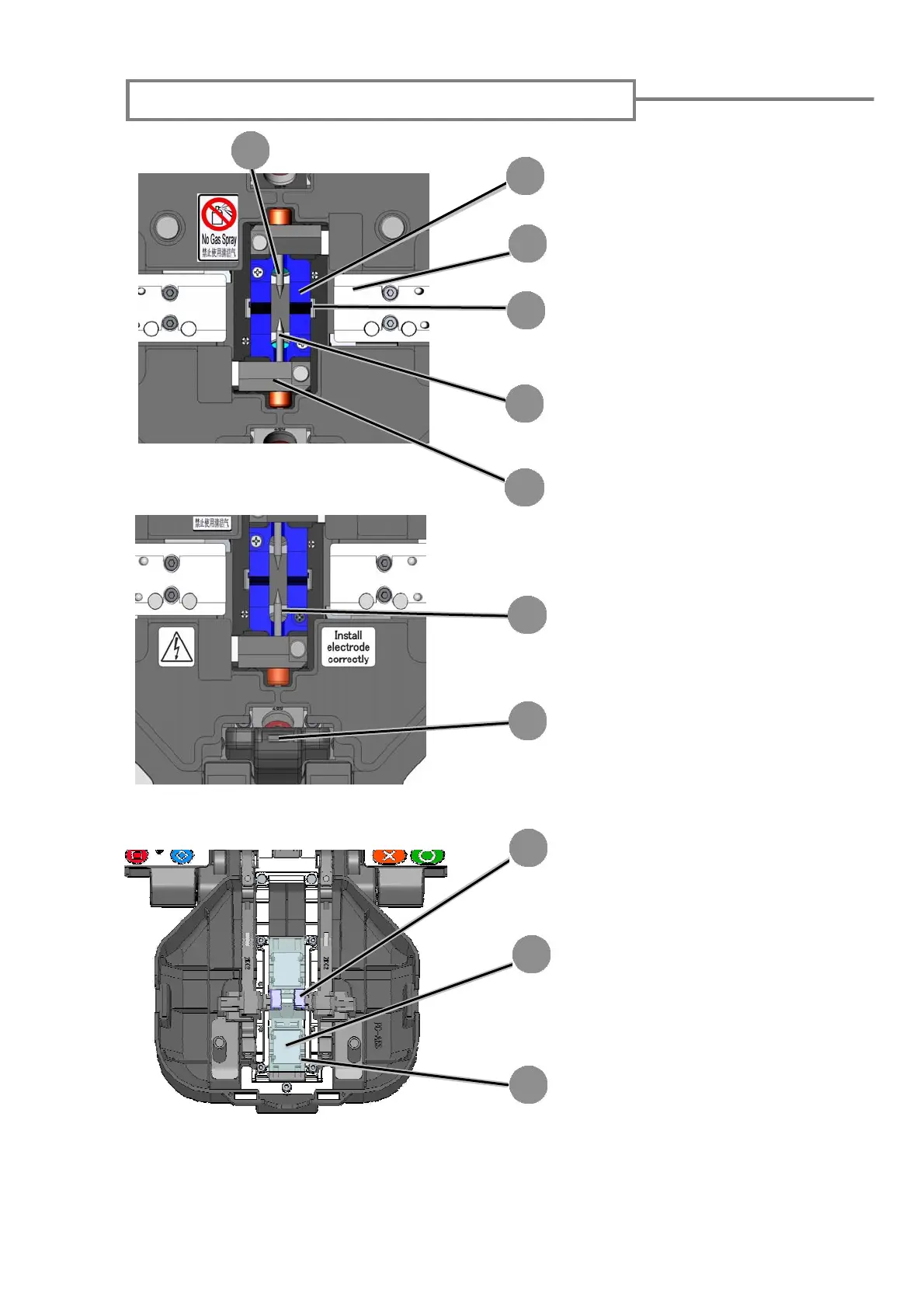

V-grooves, electrodes, other components
7
Bare fiber pads
Hold fibers seated into the V-grooves.
Normally they are attached to the
hood.
Mirror
Reflects the illumination for a
microscope.
(Located below the mirror protection
glass.)
8
9
10
Mirror protection glass
Protects the mirrors from any dust
or dirt.
Fiber holder stage
fiber holder is placed on the
stage.
2
3
Fiber guide
small green light is illuminated fo
easy fiber placement.
4
Electrodes
Arc is generated between the
electrodes.
1
V-grooves
Keep bare fibers aligned.
Electrode cover plate
Holds the electrode seated into the
retaining groove.
5
V-groove illumination
Illuminates the V-groove. Lit when the
hood is opened.
4
Microscope objective lens
Fiber is observed with the lens.
6
7
