Cleaning
To keep excellent splice quality, regular cleaning and inspection are required.
Especially cleaning should be performed before and after each use. We recommend
your splicer to be checked through our maintenance service once a year.
Turn off the TYPE-66 before maintenance work. Failure to do so
may cause electric shock.
Clean each part with a cotton swab. Please bear in mind that daily cleaning can
maintain splicer performance. Clean components before and after use.

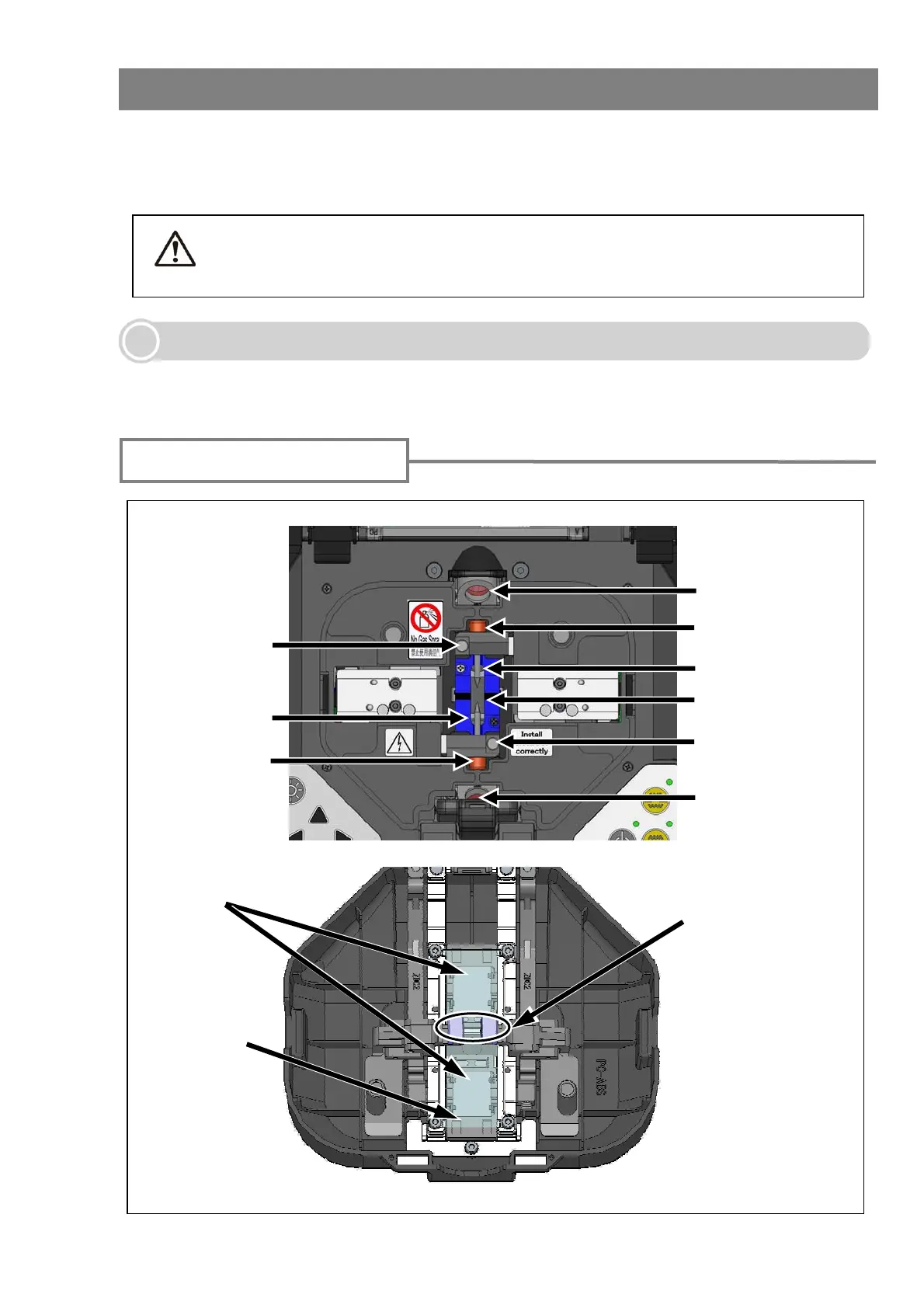

Names of components
3. Maintenance
Mirror
Bare fiber pad
Mirror
protection
glass
Warning
V-groove
LED
Electrode for
high voltage side
LED
Electrode
cover plate
thumb-screw
& electrode
cover plate
Electrode fo
r
Objective lens
(below electrode)
Objective lens
(below electrode)
Electrode cover
plate thumb-screw &
electrode cover plate
low voltage side
