Preparing power supply

The TYPE-66 operates on a power supply module, or a battery module.

AC operation

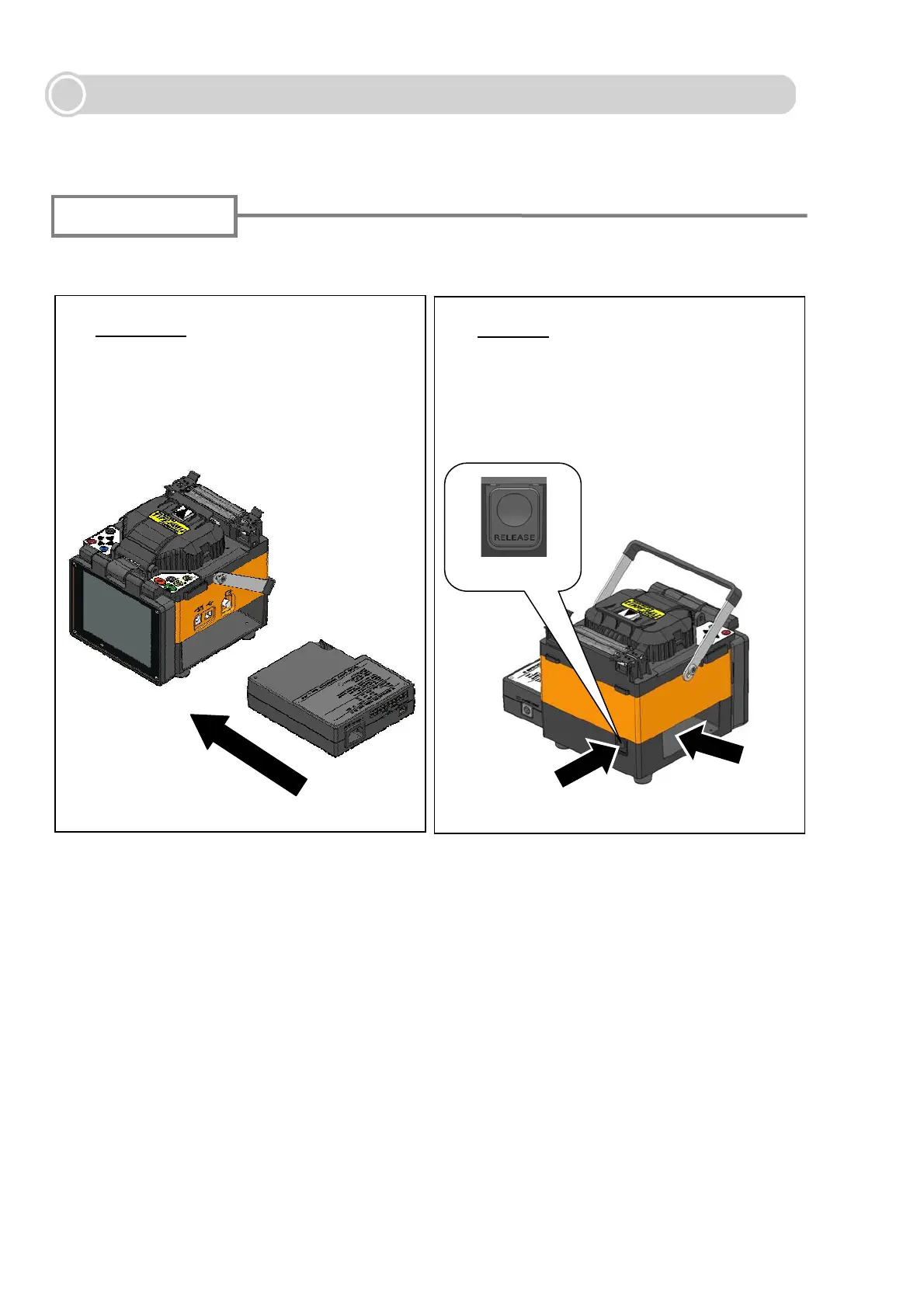

Insert the power supply module (PS-66) into the module bay.

Installation

Insert the power supply module (PS-66)

into the module bay and slide forward

until it locks into space.

Removal

<1> While pressing the release button

located on the rear of the splicer,

<2>slide the module out of the module

bay until it is free from the splicer.

Release button

<1>

<2>
