Detachable/attachable bare fiber pads
The bare fiber pad is moved in conjunction with the opening and closing of the hood. It
can be separated from the hood to check to see if the fiber is clamped properly.

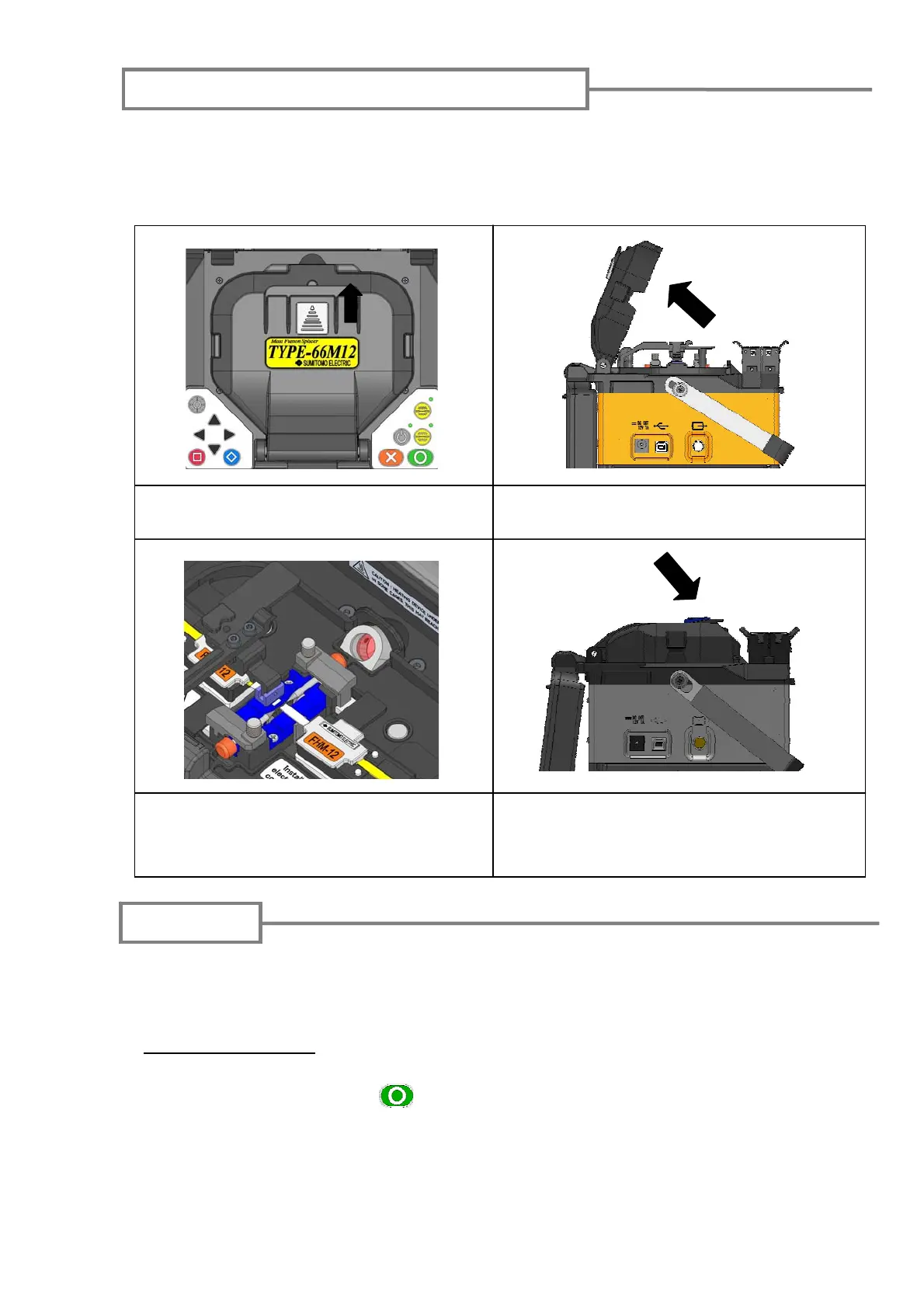

Detaching and attaching bare fiber pads
47
1: Slide the bare fiber pad release button
in the direction indicated by the arrow.
2: When the hood is opened, the bare fiber
pad is removed from the hood.
3: You can check if the fiber is placed
seated in the V-groove properly by the
pad.
4: When the hood is closed, the hood
catches the bare fiber pad. The hood
and the pad are moved together.
Auto start
The TYPE-66 is provided with Auto start function that automatically starts the splicing
process and the heating operation.
Auto start splicing
When the fiber is inserted into the splicer and the hood is closed, the splicing process
is automatically started. The (SET) key does not need pressing.
See also page 43 & 44.
