Auto start heating
When the fiber is placed into the heat shrink oven, the heating operation is
automatically started. The (HEAT) key does not need pressing.
See also page 43 & 44.

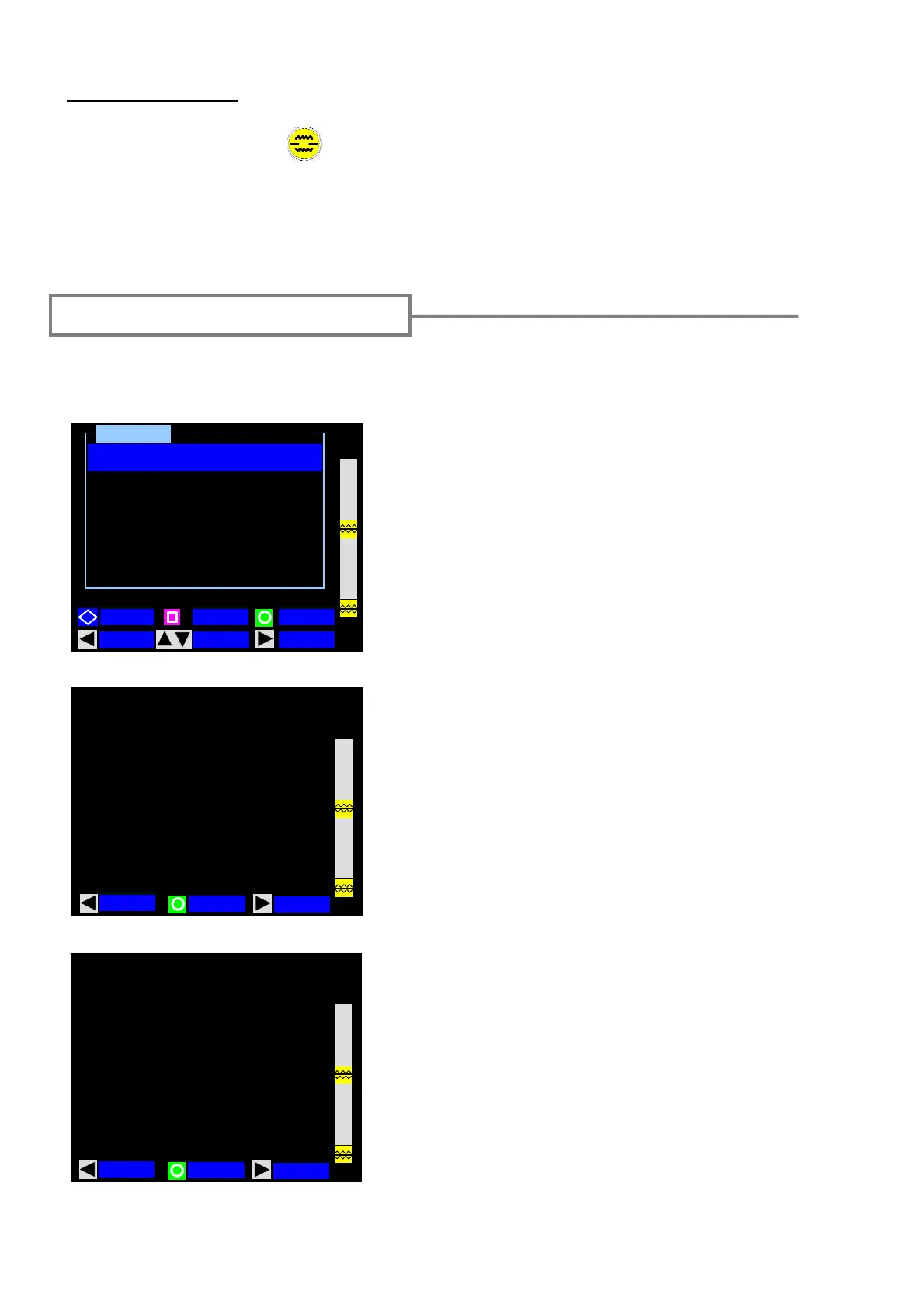

Splice data storage function
The TYPE-66 has the capability to record
splice loss information for each splice that is
performed. Set “Memory” to ON when you
would like to store splice data.
48
3 / 3
Memory
[OFF]
Display
[0000]
Output
[0000]-[0000]
Clea
[Previous]
Histogram
[Loss]
MOVE
SELECT
PAGE
BACK
Function
To display stored splice data, select “Display”.
Enter the memory location you would like to
view.
Description of data
Offset: Inspected offset of diameter axis.
CutL: Inspected cleave angle of left fiber.
CutR: Inspected cleave angle of right fiber.
Gap: Inspected arc gap
放電弱
Offset CutL CutR Gap ( 1 / 2 )
PAGE
MEMO
BACK
2 0.1 0.5 0.2 35.1
1 0.6 0.6 0.2 36.6
Irregular: Inspected irregularity in fiber end
position for left or right fibers.
Irregular
R:010
L:013
3 0.7 0.6 0.5 35.6
4 0.3 0.8 0.7 39.6
Loss: Estimated losses
9 0.9 0.7 0.5 35.1
10 0.1 0.5 0.3 35.1
11 0.6 0.7 0.2 36.9
12 0.8 0.3 0.4 37.1
7 0.3 0.5 0.3 35.5
6 0.6 0.7 0.2 36.9
5 0.1 0.5 0.3 35.1
8 0.2 0.4 0.8 35.8
Loss ( 2 / 2 )
Fiber
2 0.01
1 0.01
M:12c
3 0.01
4 0.01
Number 0016
PAGE
MEMO
BACK
12 0.01
9 0.01
10 0.01
11 0.01
7 0.01
8 0.01
6 0.01
5 0.01
Date 09/02/02
12:00
Memo
