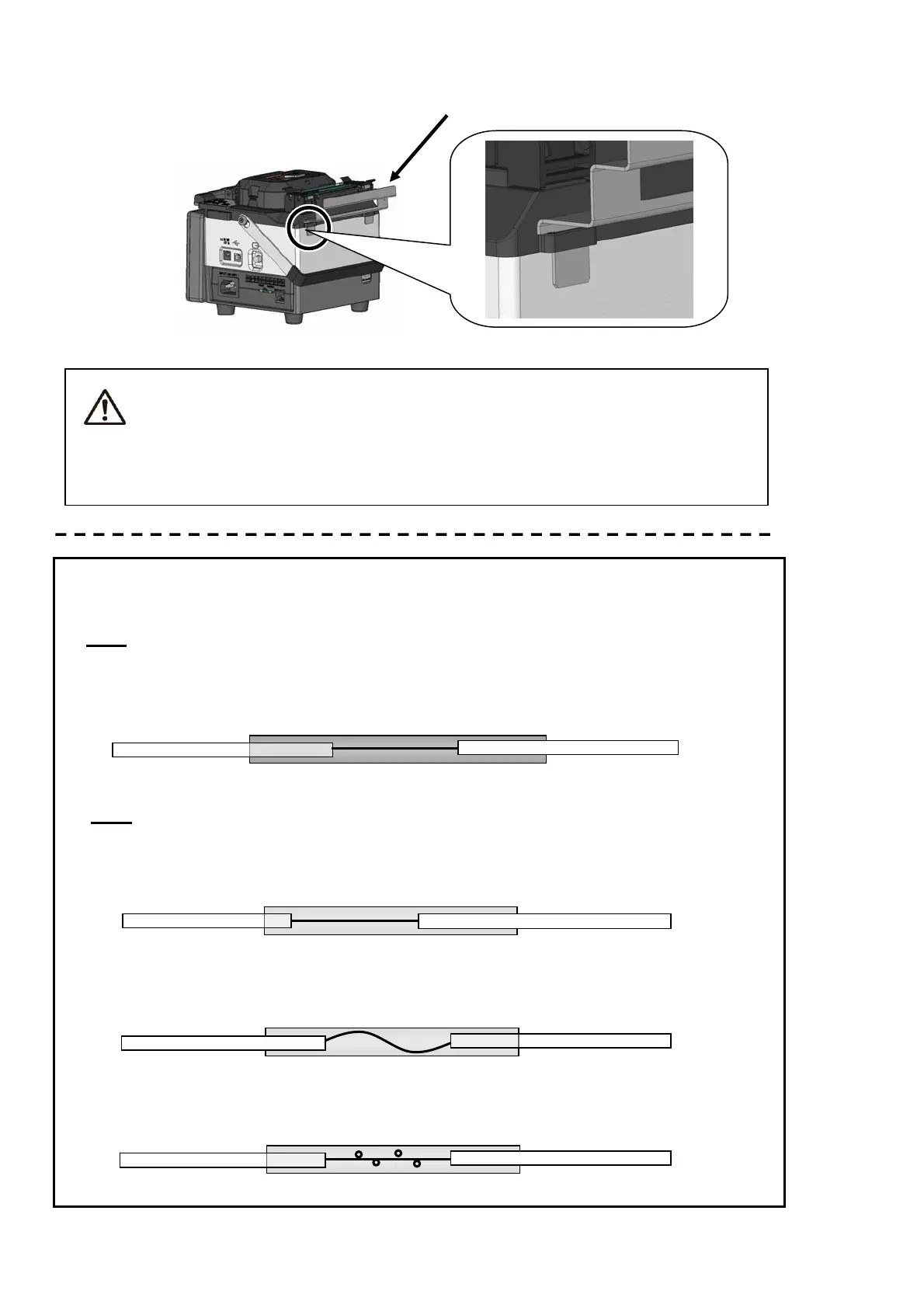

Install the cooling tray into the splicer as shown above.
Cooling tray
<Cooling tray installation>
After the heat cycle is complete, the fiber protection sleeve may be hot.
Handle with care.
Never touch the surface of the heating plate during the heating
operation. Doing so may cause personal injury and damage to the heat
shrink oven.
Caution
Evaluating protection sleeve
OK
Completely shrunk, no bubbles, the splice is centered in a sleeve
NG
1: The shrinking sleeve is not centered over the splice.
2: Bend in bare fiber
3: Bubbles on bare fiber
