Sun Microsystems Netra 240 - FIGURE 5-14 Removing the SCSI Interface Board Cable and the IDE Cable from the System Board

154 pages

Save Page as PDF

To Next Page

To Previous Page

Chapter 5 Removing and Replacing Miscellaneous Internal Components 91

11. Disconnect the interface board SCSI and IDE cables from the system board

(

FIGURE 5-14).

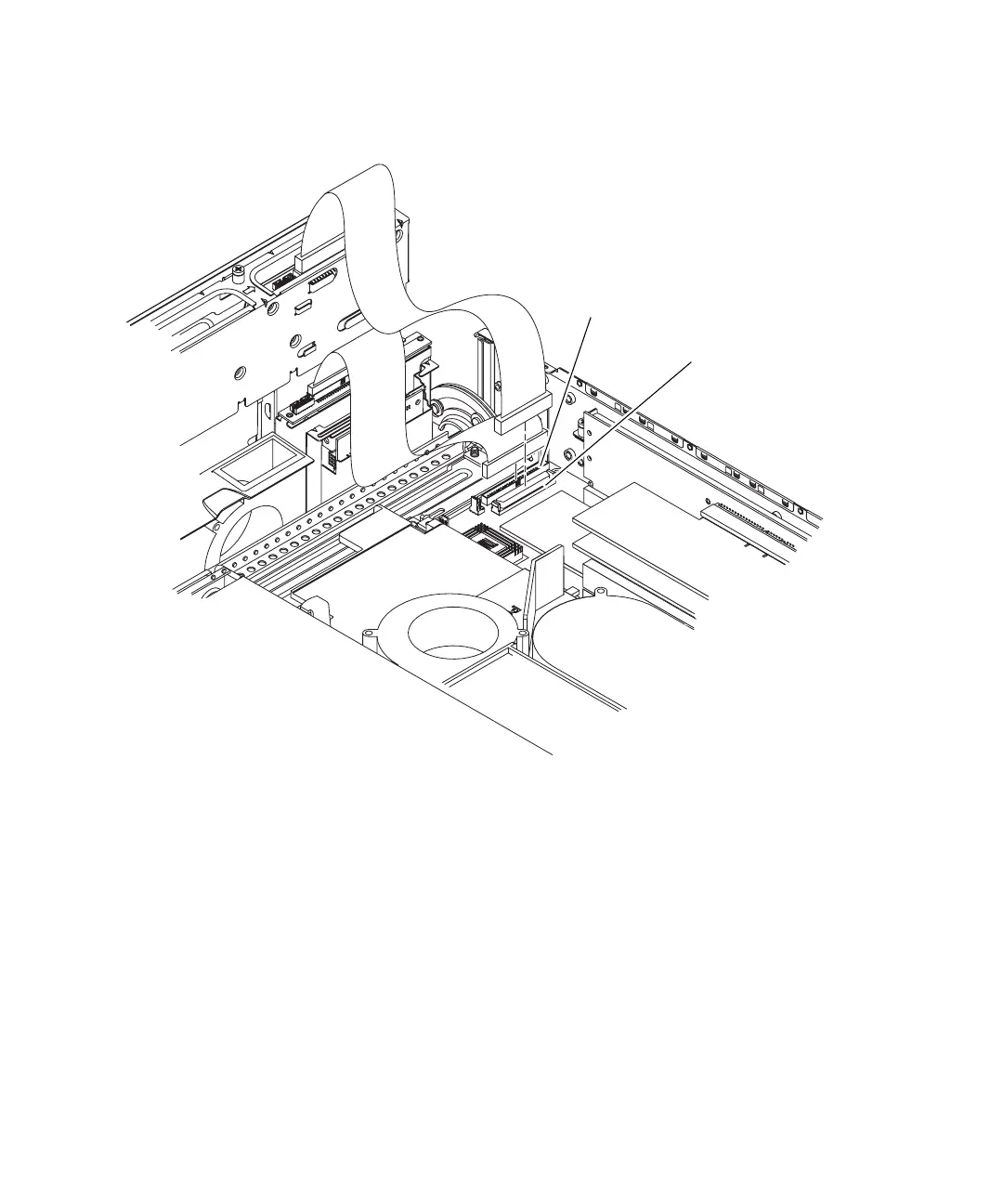

FIGURE 5-14 Removing the SCSI Interface Board Cable and the IDE Cable From the System Board

IDE cable

connector

SCSI interface

board cable

connector
