92 Netra 240 Server Service Manual • June 2004

12. Disconnect the front fan assembly cables from the system board connectors

(

FIGURE 5-15).

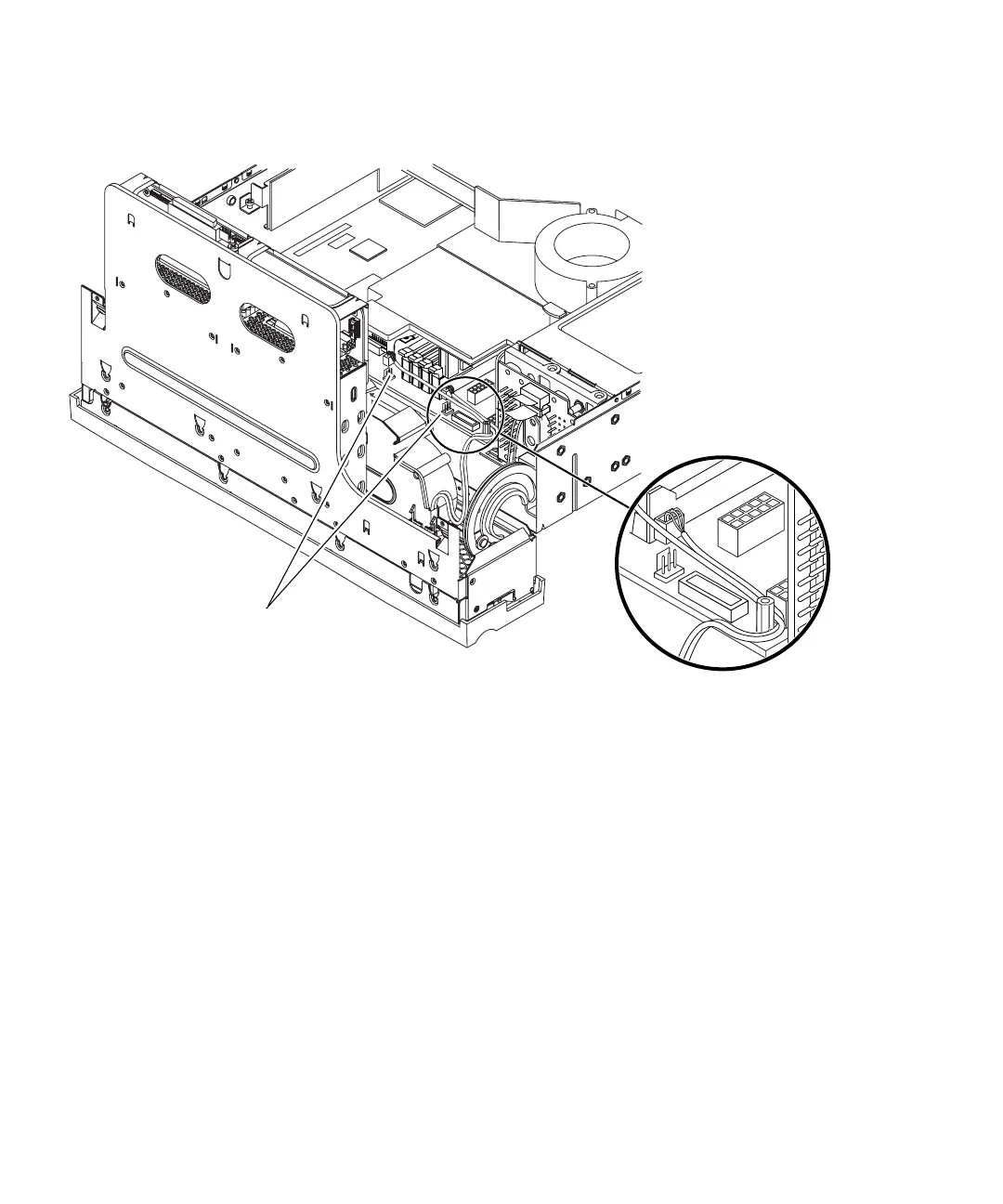

FIGURE 5-15 Detaching the Front Fan Assembly Cables From the System Board Connectors

13. Remove the Hardware Cryptographic Module.

See “Removing the Hardware Cryptographic Module” on page 85.

System board connectors
