Chapter 5 Removing and Replacing Miscellaneous Internal Components 95

Installing a System Board

Caution – The system board ships with CPU heat sinks containing fans. Before

installing the replacement system board into the Netra 240 server chassis, you must

first remove the fans from the CPU heat sink assemblies.

1. Place the replacement system board on a clean, static-free worktable.

2. Locate the CPU heat sink assemblies on the system board (FIGURE 5-18).

Depending on your system board FRU, there are either one or two CPU heat sink

assemblies.

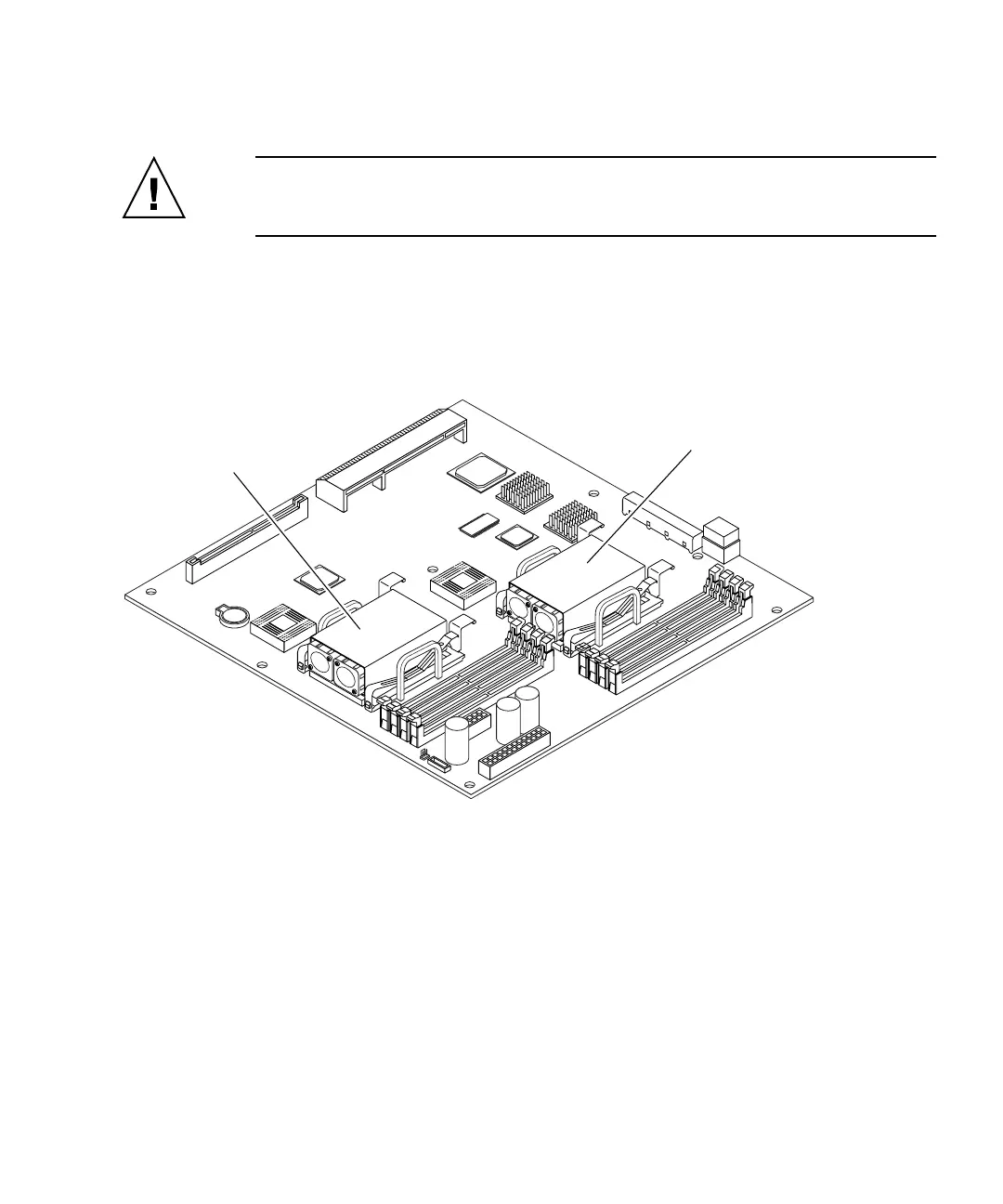

FIGURE 5-18 Location of the CPU Heat Sink Assemblies

CPU1

heat sink

assembly

CPU0

heat sink

assembly
