Caution – The Fibre Channel-Arbitrated Loop (FC-AL) cable is connected to the
main logic board directly underneath the RSC card. When you perform the
following step, be careful not to press so hard on the RSC card that you loosen the
FC-AL cable’s connection to the main logic board.
c. Push the card into the connectors on the main logic board.
Apply even pressure along the edge of the card.
3. Secure the RSC card faceplate to the back panel with the Phillips screw.

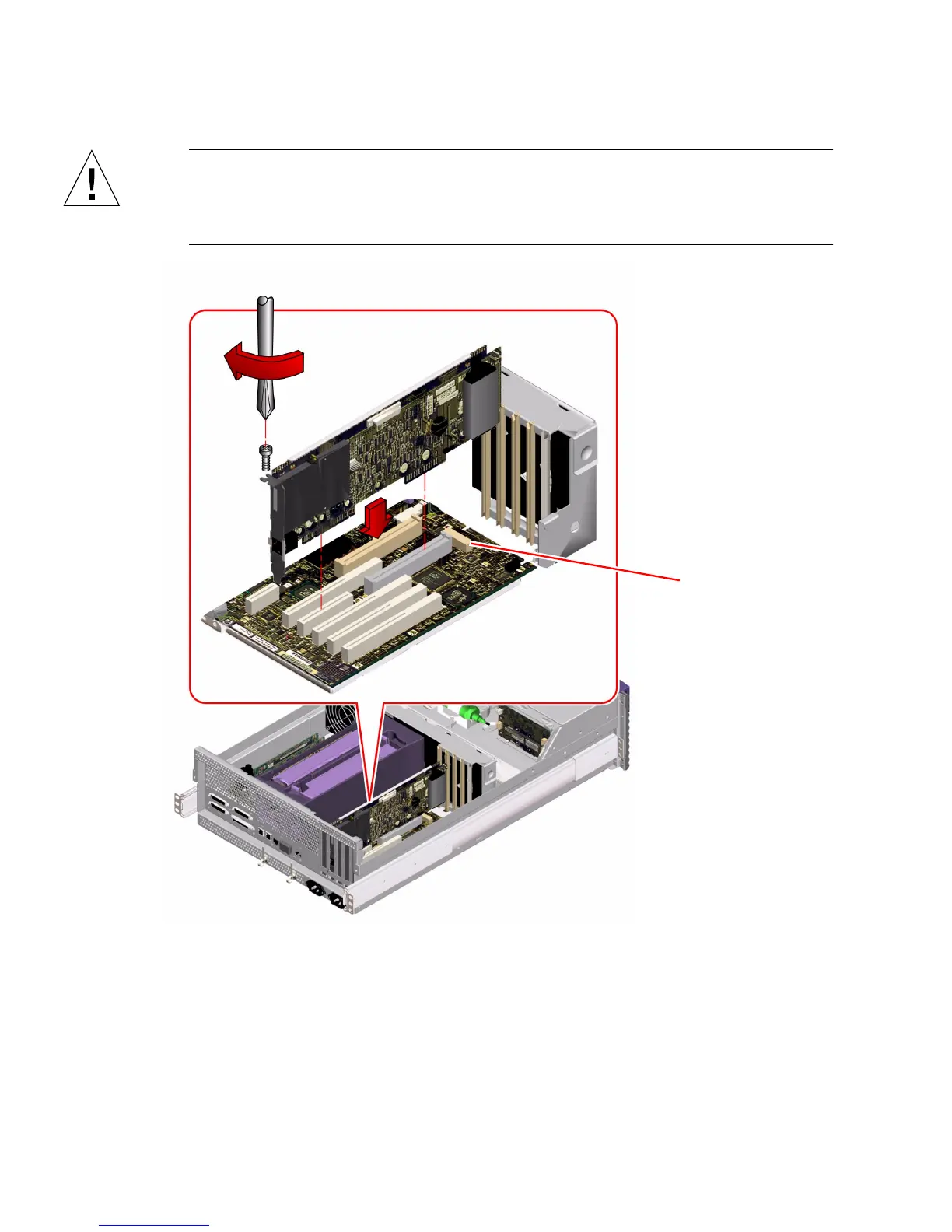

FC-AL connector
