4. Adjust the server on the tray until the four holes on each side of the server align
with the four holes in the tray assembly.
5. Remove the four lifting handles from the sides of the server.
a. Insert the screwdriver through one of the access holes on the outside of the
handle.
Using the access hole makes it easier to reach the opposite screw hole on the
inside of the handle to remove the screw. See the following figure.
b. Remove the two M4 screws that attach each handle to the server.
c. Save the eight M4 screws you remove.
You will need to use the screws in Step 7.

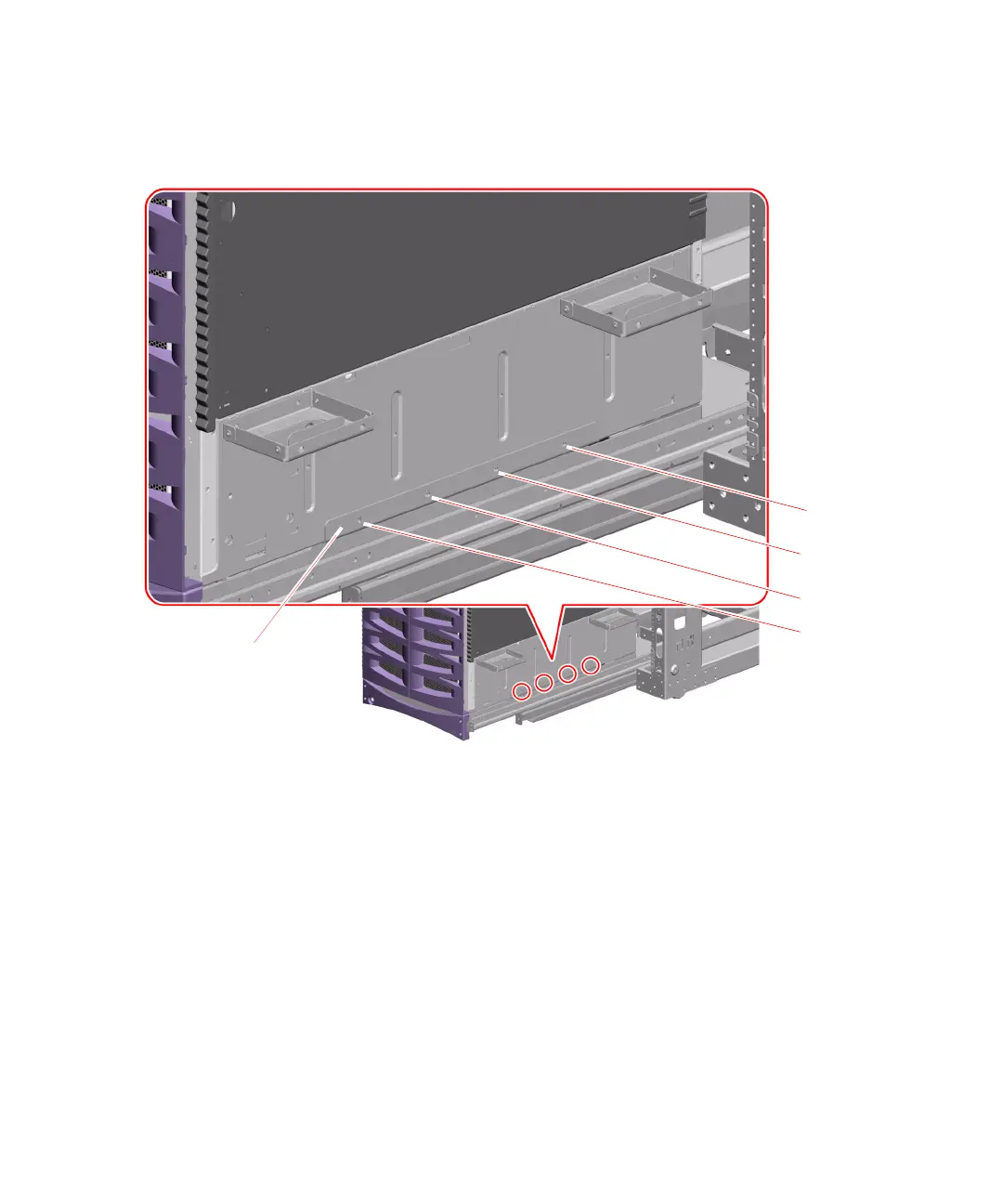

Tray
Align the four
screw holes on
the tray with
the four screw
holes on the
server.
To Next Page
