58 Sun Fire V880 Server Rackmounting Guide • May 2004
Securing the Server in the Cabinet
To secure the tray assembly and server in the cabinet, attach the tray handle to the
front rails of the cabinet.
1. Attach the tray handle to the front rails of the cabinet.
Use one or two M6 screws to attach the tray handle to each front rail.

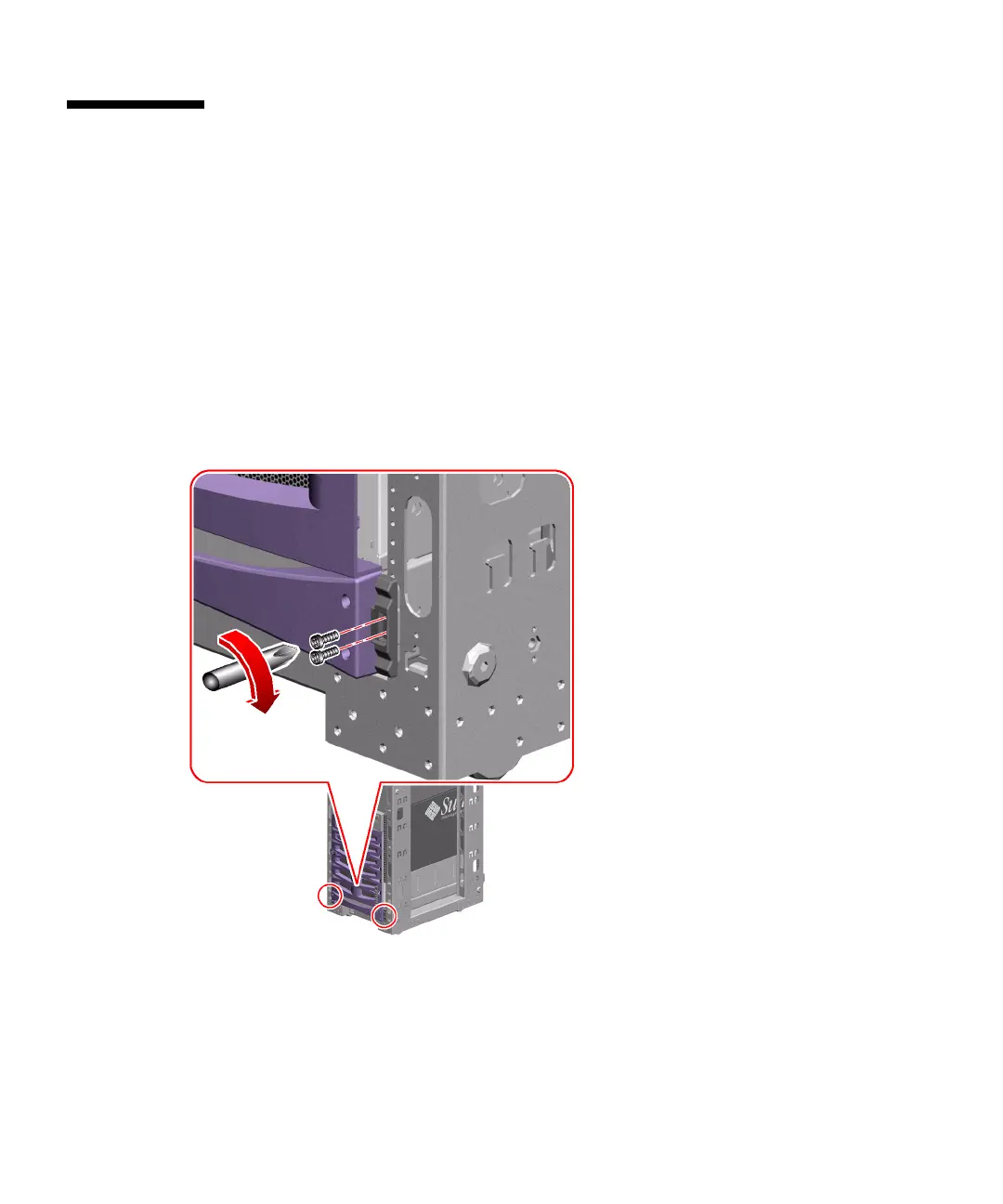

If each of the two screw holes on each side of the handle aligns with a rail hole, use
two M6 screws to attach each side of the tray handle to each front rail as shown in
the following figure.
If only one screw hole on each side of the handle aligns with a rail hole, use one M6
screw to attach each side of the tray handle to each front rail.
