12
Item Name Specification
E Heat gun
-
F RJ45 crimping tool
-
G Hydraulic plier 2.5-6 mm
2
H Adjustable spanner
-
2.4 Electrical Connection
2.4.1 Circuit Diagram

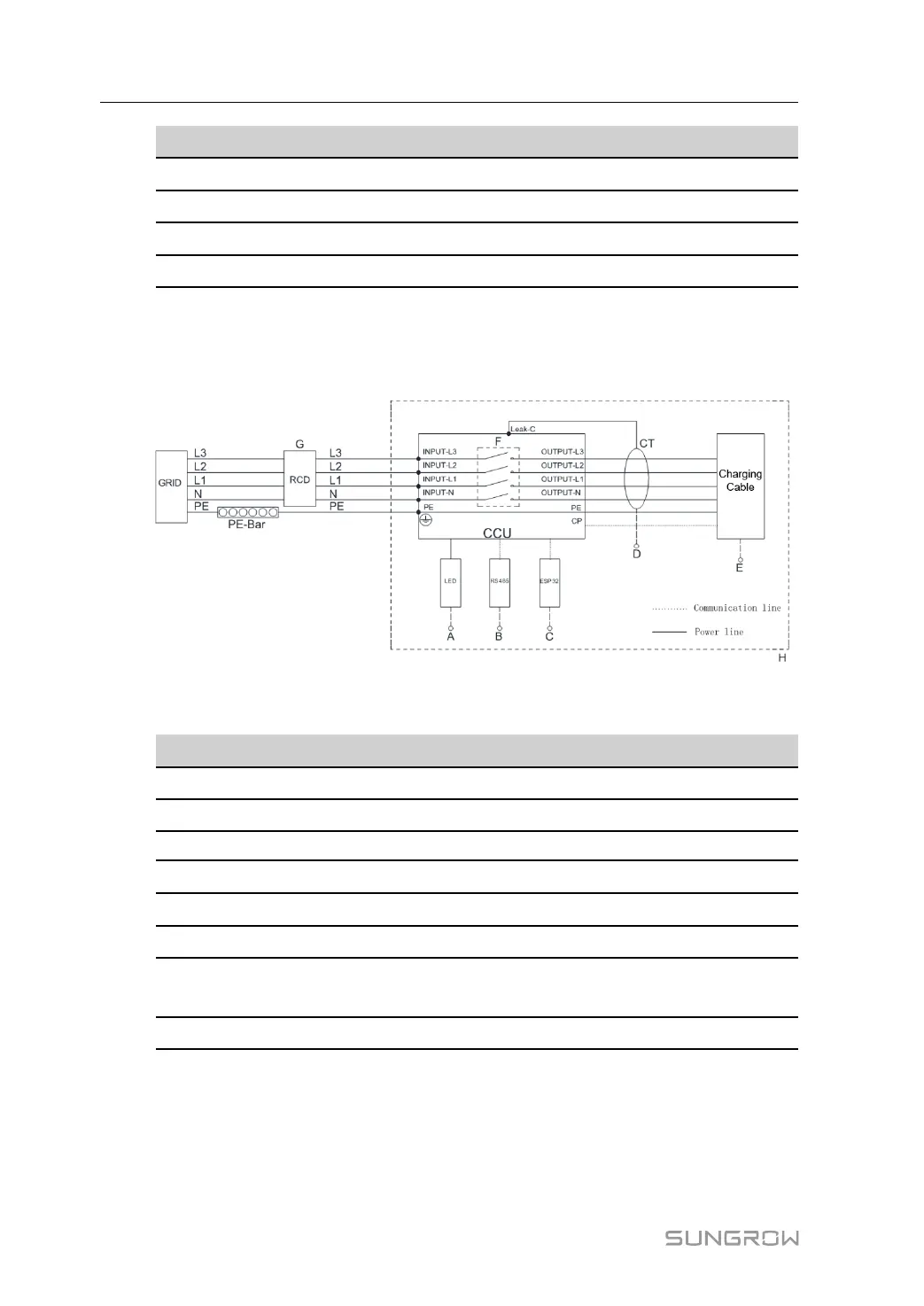

figure 2-1 Circuit diagram
table 2-3 Label Descriptions
Label Description
A The LED lights that indicates the status of the charger
B RS485, reserved for external communication
C ESP32 module for Wi-Fi communication
D CT for leakage current detection
E Charging cable output (connected to the vehicle)
F CCU internal relay
G Type A residual-current device (Parameter: 25 A/400 V with a rated residual
current of 30 mA; input cable cross-section: 2.5 mm
2
)
H The charger
2 Installation User Manual
