Sungrow AC011E-01 User Manual

17
Step 2 Insert the RJ45 connector to the RJ45 jack.
Step 3 Install seals for the Ethernet cable in sequence.
Ensure that the cable is secured.
Step 4 Connect the charger to a Smart Energy Meter or a SUNGROW Hybrid inverter.

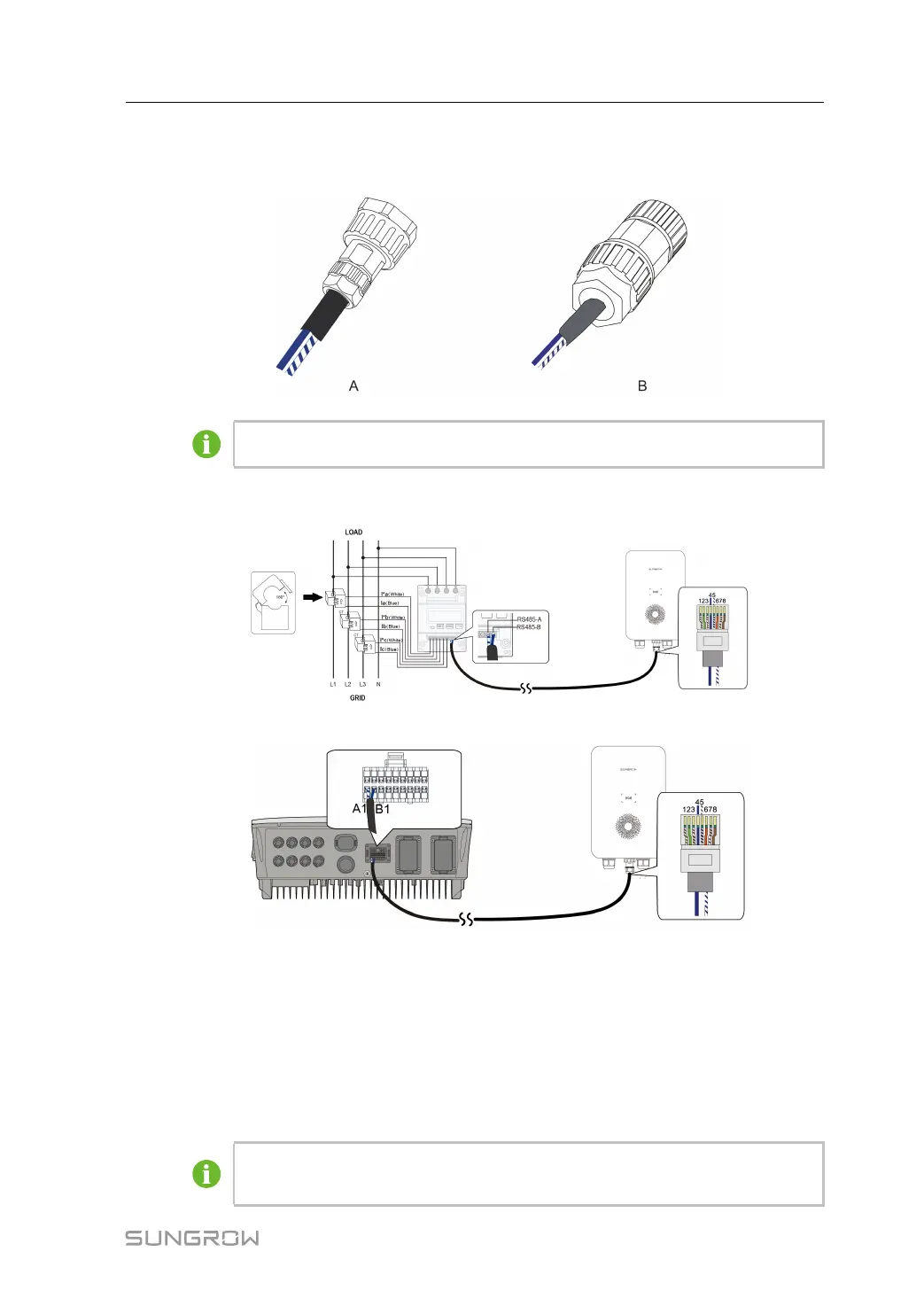

figure 2-4 Connect to a Smart Energy Meter
figure 2-5 Connect to an inverter(SHRT)
- - End
2.5 Wall-Mounted Installation
Install the charger on the wall using the provided wall-mounting bracket and expansion
screw sets.
The load-bearing capacity of the installation carrier must be at least 4.5 times the
weight of the charger.
User Manual 2 Installation

Sungrow AC011E-01 Specifications

General

Model	AC011E-01
Category	Battery Charger
Output Power	11 kW
Frequency	50/60 Hz
Operating Temperature	-25°C to +60°C
Protection	Overvoltage, Overcurrent, Short Circuit, Over Temperature
Communication	RS485/CAN
