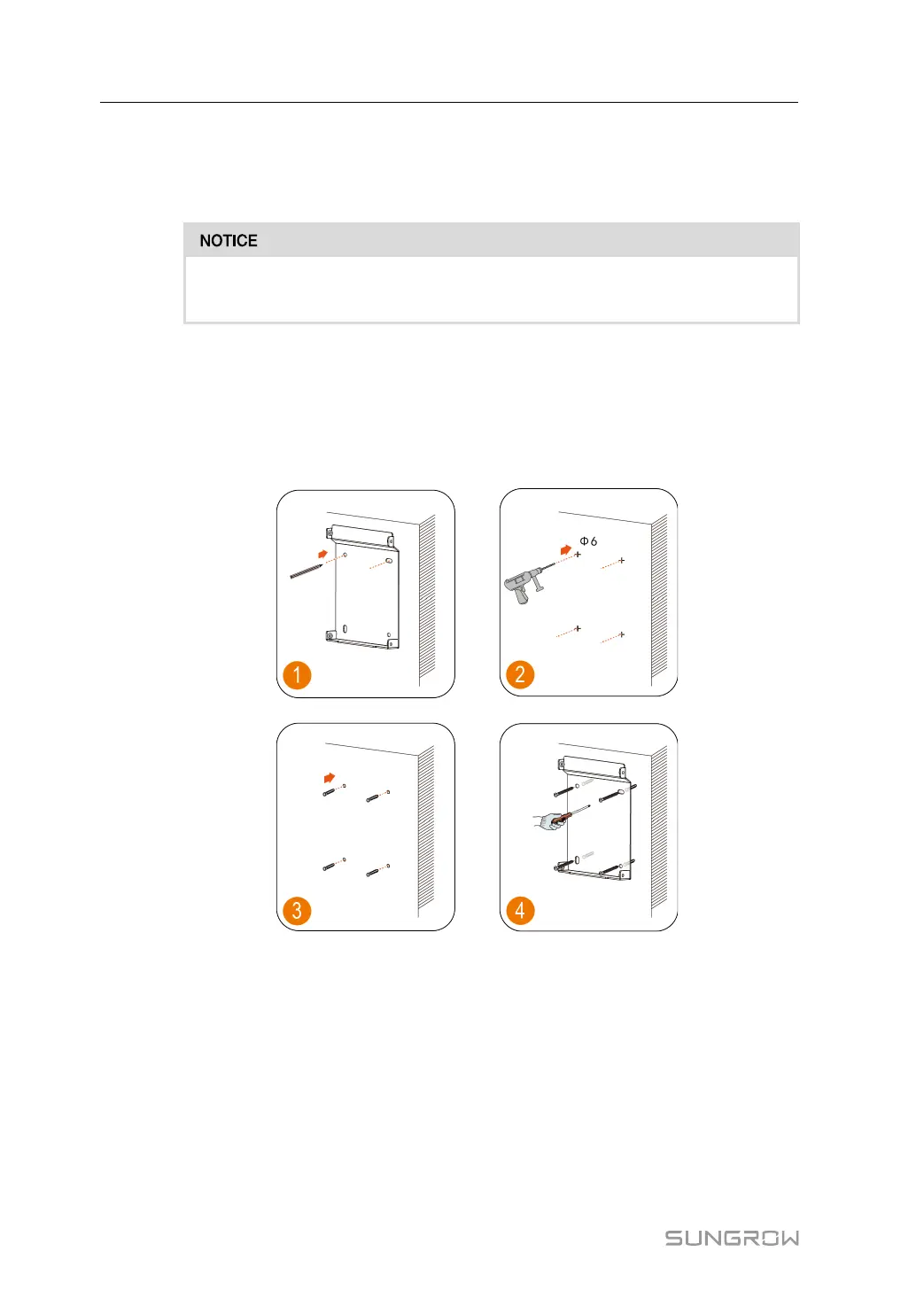

Step 1 Install the backplate.
1 Hold the backplate in the desired position on the wall and mark the positions of the drill
holes.
Before drilling the hole for the backplate, locate and avoid water pipes and elec-
trical wires in the wall.
2 Drill holes at the marked positions using a hammer drill. (Diameter: 6 mm; depth: 45
mm)
3 Insert the dowel into the holes.
4 Place the backplate on the wall and tighten the screws using a screwdriver to secure the
backplate.
2 Installation User Manual

Sungrow AC011E-01 Specifications

General

Model	AC011E-01
Category	Battery Charger
Output Power	11 kW
Frequency	50/60 Hz
Operating Temperature	-25°C to +60°C
Protection	Overvoltage, Overcurrent, Short Circuit, Over Temperature
Communication	RS485/CAN
