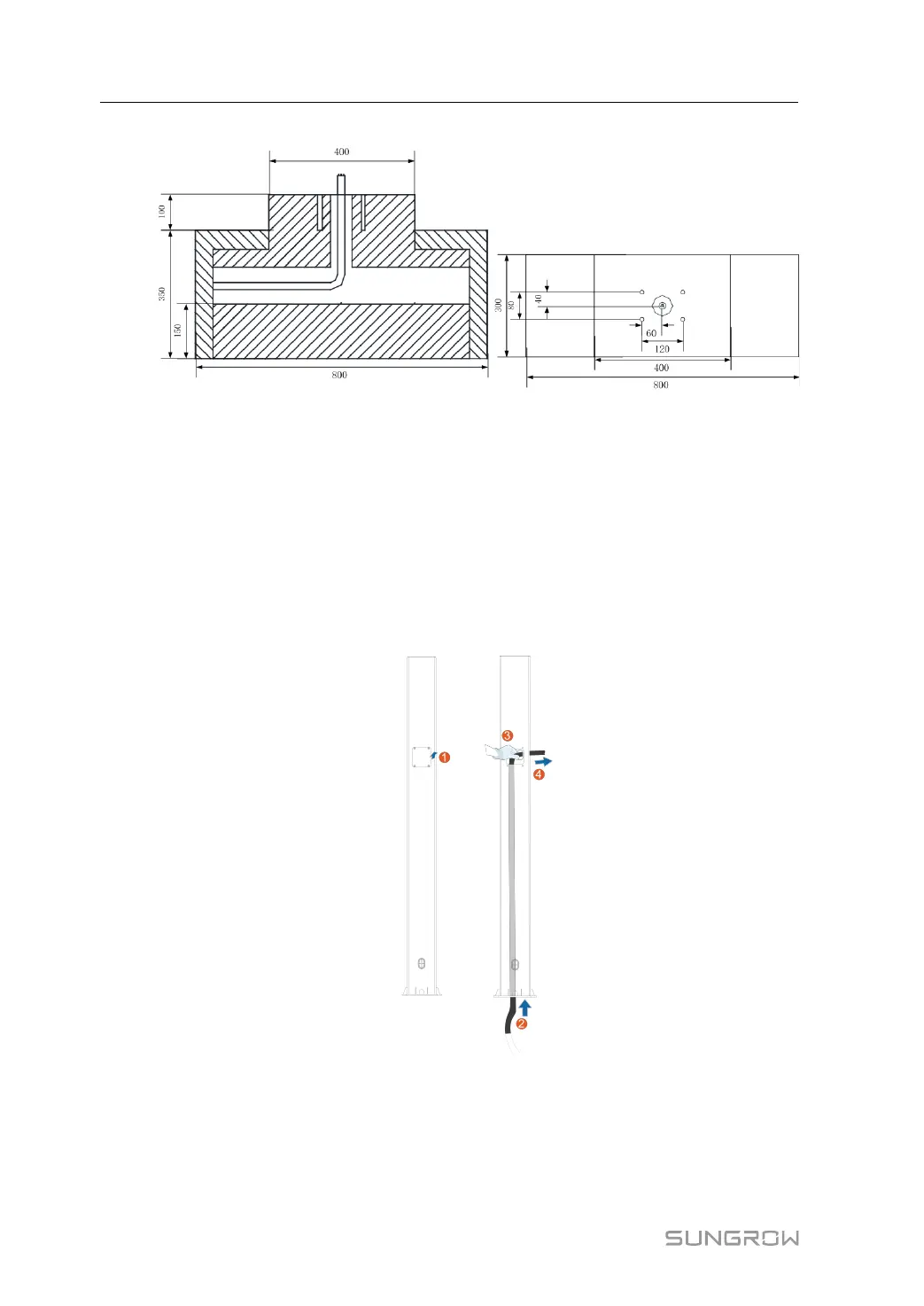

figure 2-7 Front view and top view (unit: mm)
2.6.2 Pole Installation
Step 1 Connect the AC cable.
1 Remove the cover plate on the back of the pole using a cross screwdriver.
2 Lead the AC cable through the bottom into the pole.
3 Grab the AC cable when it reaches the cover plate and take out the end of the cable
from the AC cable outlet.
4 Pull the cable out to an appropriate length and close the cover plate.
