Step 2 Mount the charger.

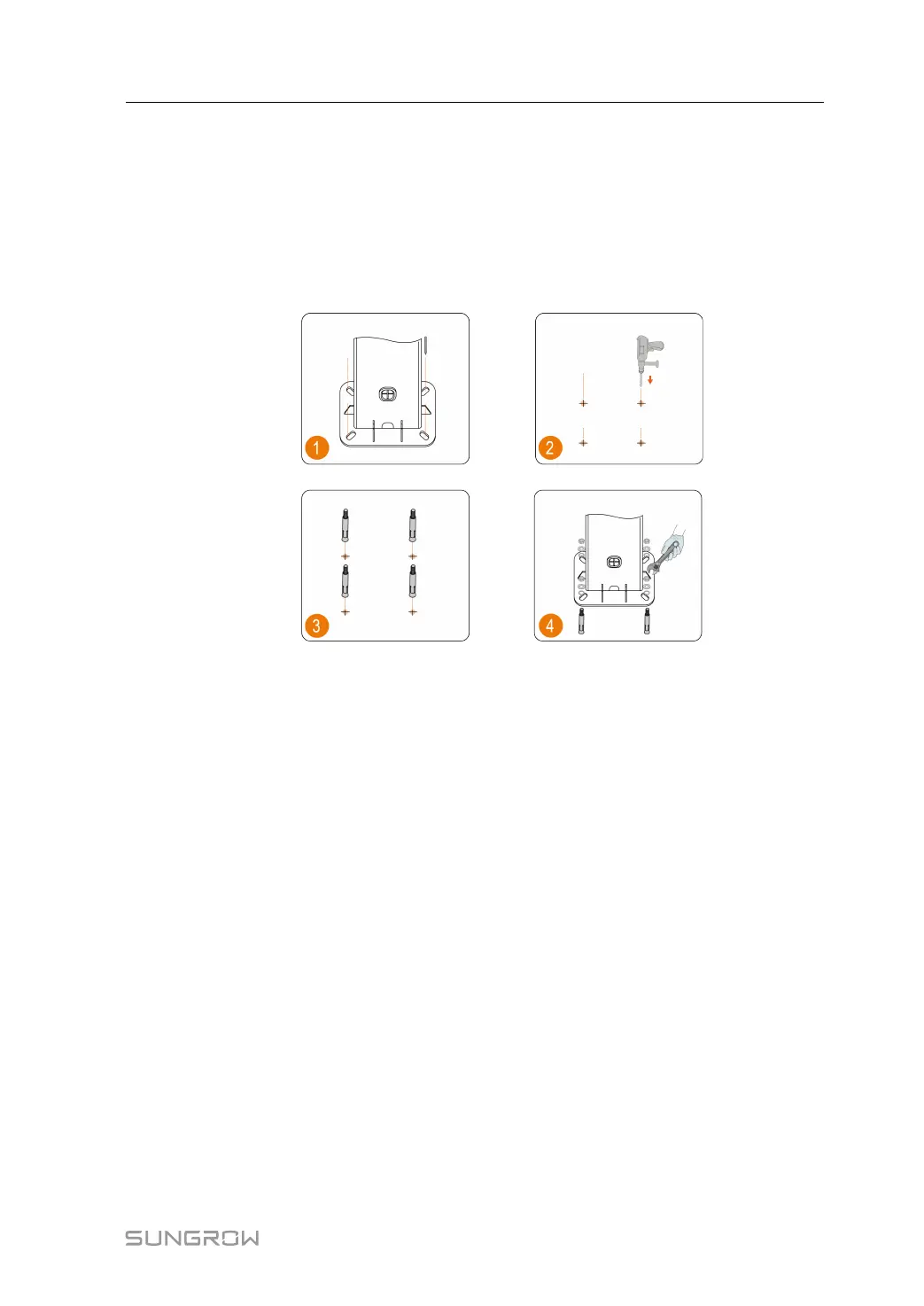

1 Place the pole on a solid and flat surface, and mark the positions of the drill holes.
2 Drill holes at the marked positions using a hammer drill. (Diameter: 12 mm; depth: 70
mm)
3 Insert the dowel into the holes.
4 Tighten the expansion screw using a screwdriver.
5 Check whether the pole is firmly installed.
Step 3 Install the backplate and the charging cable bracket.
1 Align the holes in the backplate with the holes drilled in the pole, and secure the back-
plate to the pole with screws.
2 Align the holes in the bracket with the holes drilled in the pole, and secure the bracket to
the pole with screws.
3 Check whether the backplate and the charging cable bracket are firmly installed.
User Manual 2 Installation

Sungrow AC011E-01 Specifications

General

Model	AC011E-01
Category	Battery Charger
Output Power	11 kW
Frequency	50/60 Hz
Operating Temperature	-25°C to +60°C
Protection	Overvoltage, Overcurrent, Short Circuit, Over Temperature
Communication	RS485/CAN
