1.4 System Overview
In both charging scenarios, with standard and advanced version, smart charging
visualization via App is possible. In addition to charging from the grid, the ad-
vanced versions support intelligent energy consumption usage in combination
with SUNGROW's 3-phase combo solution.
Stand-alone EV Charger

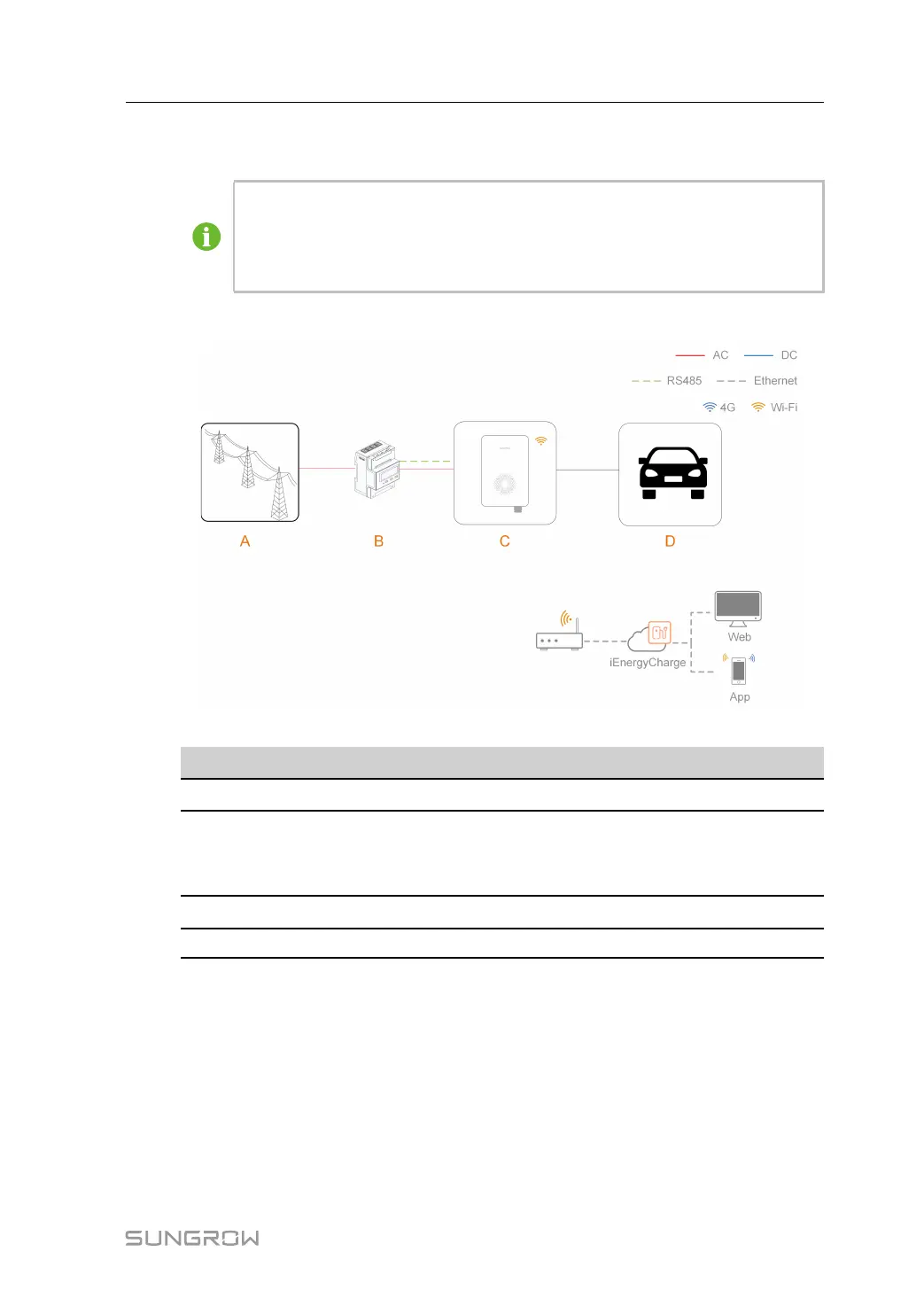

figure 1-3 System topology diagram of EV charger
Position
Description
Note
A
Utility grid
TT, TN-C, TN-S, TN-C-S.
B
DTSU666 Smart En-
ergy Meter (optional)
A smart energy meter that monitors power usage
and helps to avoid power outages caused by
peak electricity during home charging.
C
Charger
AC011E-01 L1
D Electric vehicle
-
