Sungrow AC011E-01 User Manual

14

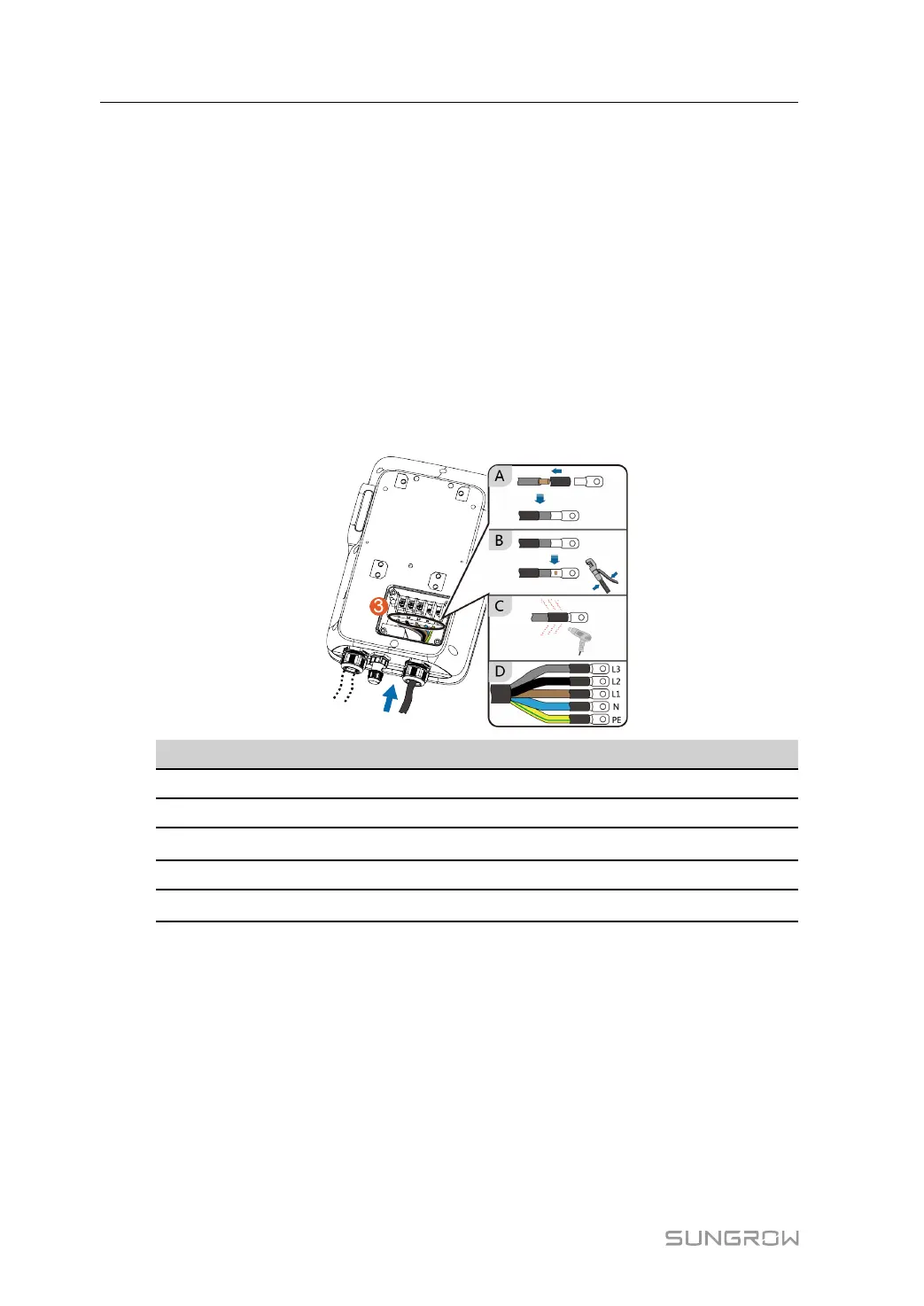

Step 4 Adjust the cable to a suitable length, and strip off the insulation of the cable to prepare for ca-
ble connection terminals.
1 Strip off the insulation from the end of each wire.
2 Insert the copper core of the stripped end of the wire into the copper lug.
3 Tighten the copper lug using a hydraulic plier.
4 Select a heat-shrink tubing that matches the diameter of the wire.
The length of the tubing should be about 2 cm longer than the length of the copper lug’s
wire tube.
5 Place the heat-shrink tubing on the copper lug until it completely covers the copper lug’s
wire hole.
6 Activate heat-shrink tubing using a heat gun.
Color Terminal
Brown L1
Black L2
Gray L3
Blue N
Yellow-green PE
2 Installation User Manual

Sungrow AC011E-01 Specifications

General

Model	AC011E-01
Category	Battery Charger
Output Power	11 kW
Frequency	50/60 Hz
Operating Temperature	-25°C to +60°C
Protection	Overvoltage, Overcurrent, Short Circuit, Over Temperature
Communication	RS485/CAN
