2 Product Introduction
2.1 System Introduction
Electric power system consists of the following six parts: development,
generation, transmission, distribution, consumption and storage. Among which,
the energy storage system is important to realize the following functions:
demand side energy management, substation grid support, load balance,
renewable energy application etc.
SC-series PCS are dedicated to charging/discharging the storage battery and
providing intermediate link between the grid and the storage battery in different
occasions (grid-connected system, islanded system or hybrid system).

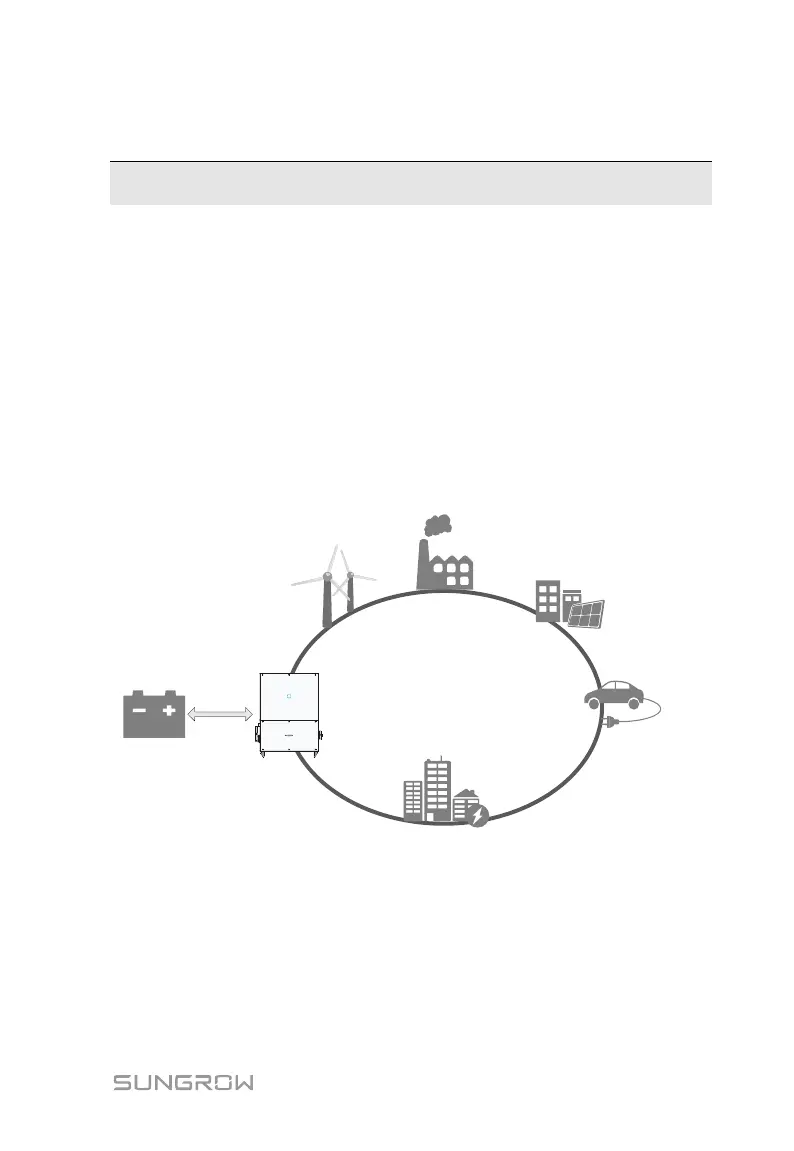

Smart grid system with PCS for energy storage system is shown in following
figure.
Power Plant
Wind Power Plant
PV Power
Plant
Charge
EV Charging
Station
Energy Storage
Device
Power Load
PCS
Discharge
Fig. 2-1 Smart grid and energy storage system
2.2 Product Description
2.2.1 Model Description
The model description is as follows (take SC50HV as example):
To Next Page
