Sungrow SC50HV User Manual

2 Product Introduction User Manual
8
SC 50 HV
High voltage input
Code of power level
Code of PCS (Power Conversion System)
Tab. 2-1 Power description
2.2.2 Product Appearance
7
1
4
2
3
5
6
10
9
8

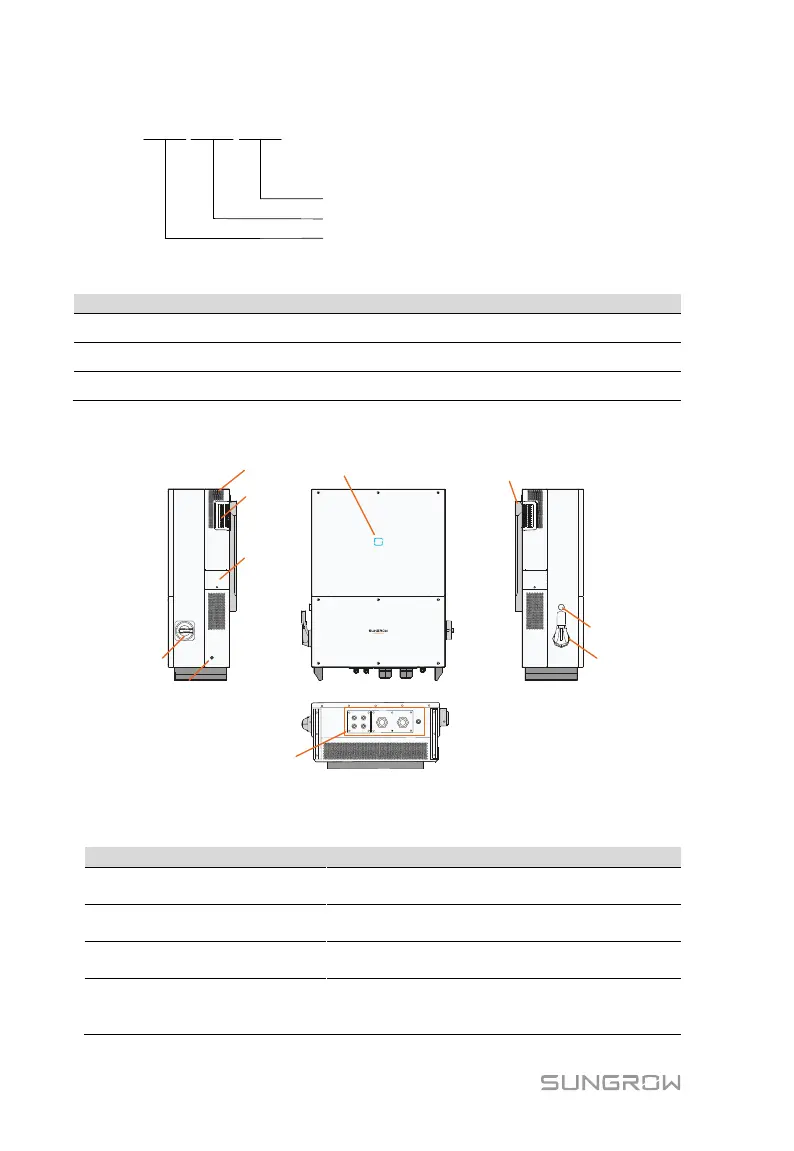

Fig. 2-2 Product Components Description
*Image shown here is for reference only. Actual product you receive may differ.
Item
Name
Description
1
LED indicator panel
HMI interface to indicate the present working
state of the PCS.
2
Air outlet
Controlled forced-air cooling method. Ensures
proper ventilation.
3
Handles
Handles are designed for transporting,
installing and disassembling the PCS
4
Cover plate of the fan
The fan is located on the back of the cover
plate and used for the forced cooling of the
PCS
Model
AC output power
Nominal AC voltage
SC50HV
55 kVA @ 45 ℃ / 50 kVA @ 50 ℃
400 V
SC60HV
66 kVA @ 45 ℃ / 60 kVA @ 50 ℃
480V
SC75HV
82.5 kVA @ 45 ℃ / 75 kVA @ 50 ℃
600V

Sungrow SC50HV Specifications

General

Brand	Sungrow
Model	SC50HV
Category	Inverter
Language	English
