Product Description
2.1 System Introduction
The inverter is a transformerless 3-phase PV grid-connected inverter. As an integral compo-
nent in the PV power system, the inverter is designed to convert the direct current power
generated from the PV modules into grid-compatible AC current and to feed the AC current
into the utility grid.
The intended usage of the inverter is illustrated in the following figure.

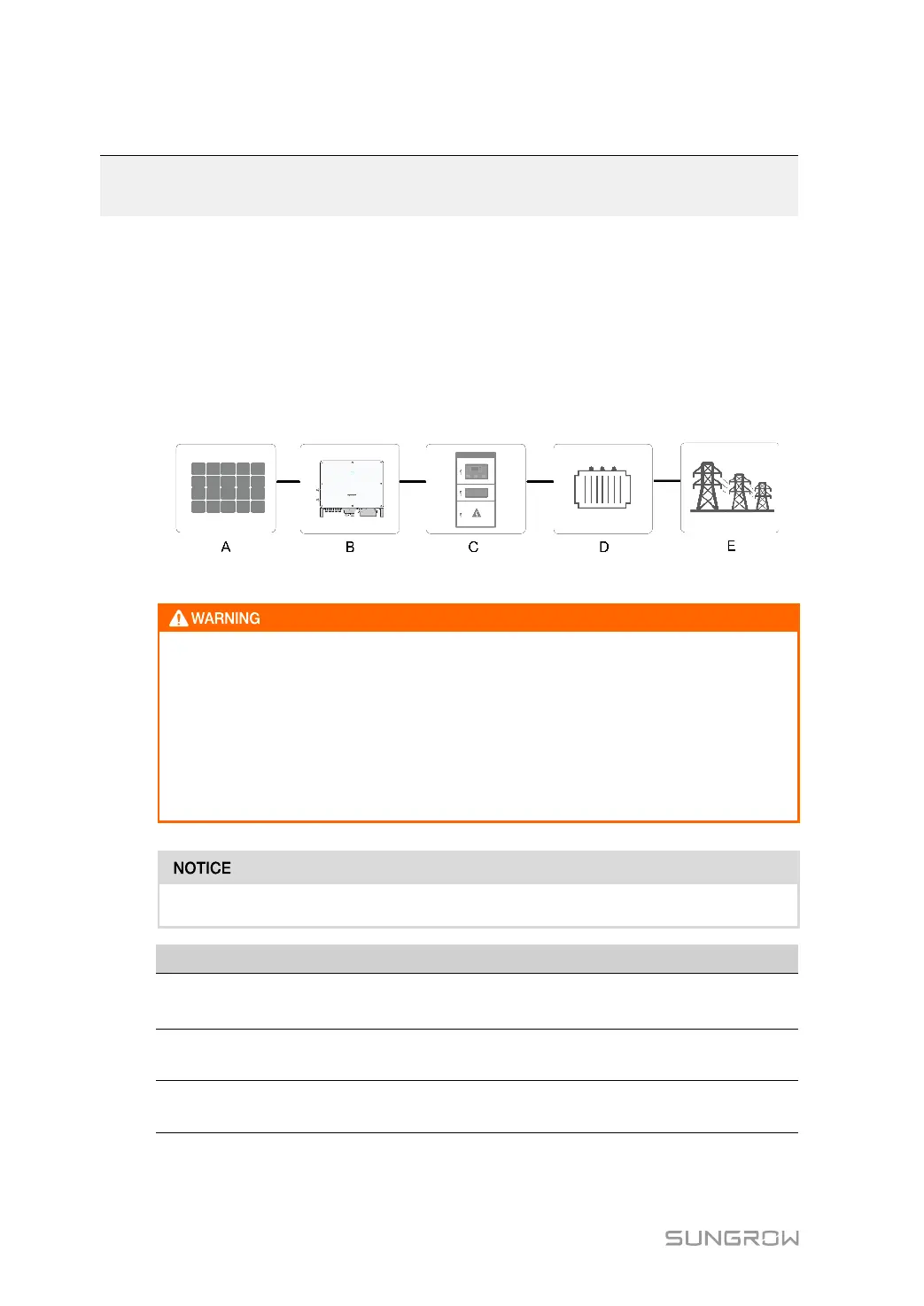

figure 2-1 Inverter Application in PV Power System
The PV modules in the system must comply with the IEC 61730-1 (2016) class Ⅱ
standard.
When designing the system, ensure that the operating ranges of all devices that
are connected to the inverter meet the requirements of the inverter.
The inverter must not be connected to a PV string that requires positive or negative
grounding.
Do not connect any local load between the inverter and the AC circuit breaker.
The inverter applies only to the scenarios described in this manual.
Item
Description
Note
A
PV strings
Monocrystalline silicon, polycrystalline silicon and thin-film
without grounding.
B Inverter
SG30CX, SG33CX, SG40CX, SG50CX, SG30CX-NI,
SG50CX-NI.
C
Grid connection
cabinet
Includes devices such as AC circuit breaker, SPD, metering
device.

Sungrow SG50CX Specifications

General

Max. DC Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of MPPTs	4
Rated AC Output Power	50 kW
Max. AC Output Current	76 A
Frequency	50 Hz / 60 Hz
Efficiency	98.6%
Start Voltage	200 V
Number of DC Inputs per MPPT	2
Max. AC Apparent Power	55 kVA
AC Voltage Range	310 V - 480 V
Power Factor at Rated Power	1
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
THDi	< 3%
DC Switch	Yes
AC Surge Protection	Type II
DC Surge Protection	Type II
Protection Class	I
Cooling Method	Smart forced air cooling
Protection Degree	IP66
Protection Level	IP66
Operating Temperature Range	-25°C to +60°C
Humidity	0-100%
AC Output Voltage	3 / N / PE, 220 V / 380 V, 230 V / 400 V
