Sungrow SG50CX User Manual

54
The RS485-1 crimp and the RJ45 interface can be applied to applications where multiple in-
verters communicate in a daisy-chain form.
A 120Ω resistor can be connected in parallel between RS485-1 A/B pins by configuring the
dip switch.
RS485-1 crimp interface and RJ45 interface serve as the same function with differ-
ent wiring manner.
5.10.2 RS485 Communication System
Single-inverter Communication System
In case of a single inverter, communication cable connection requires only one RS485 cable.

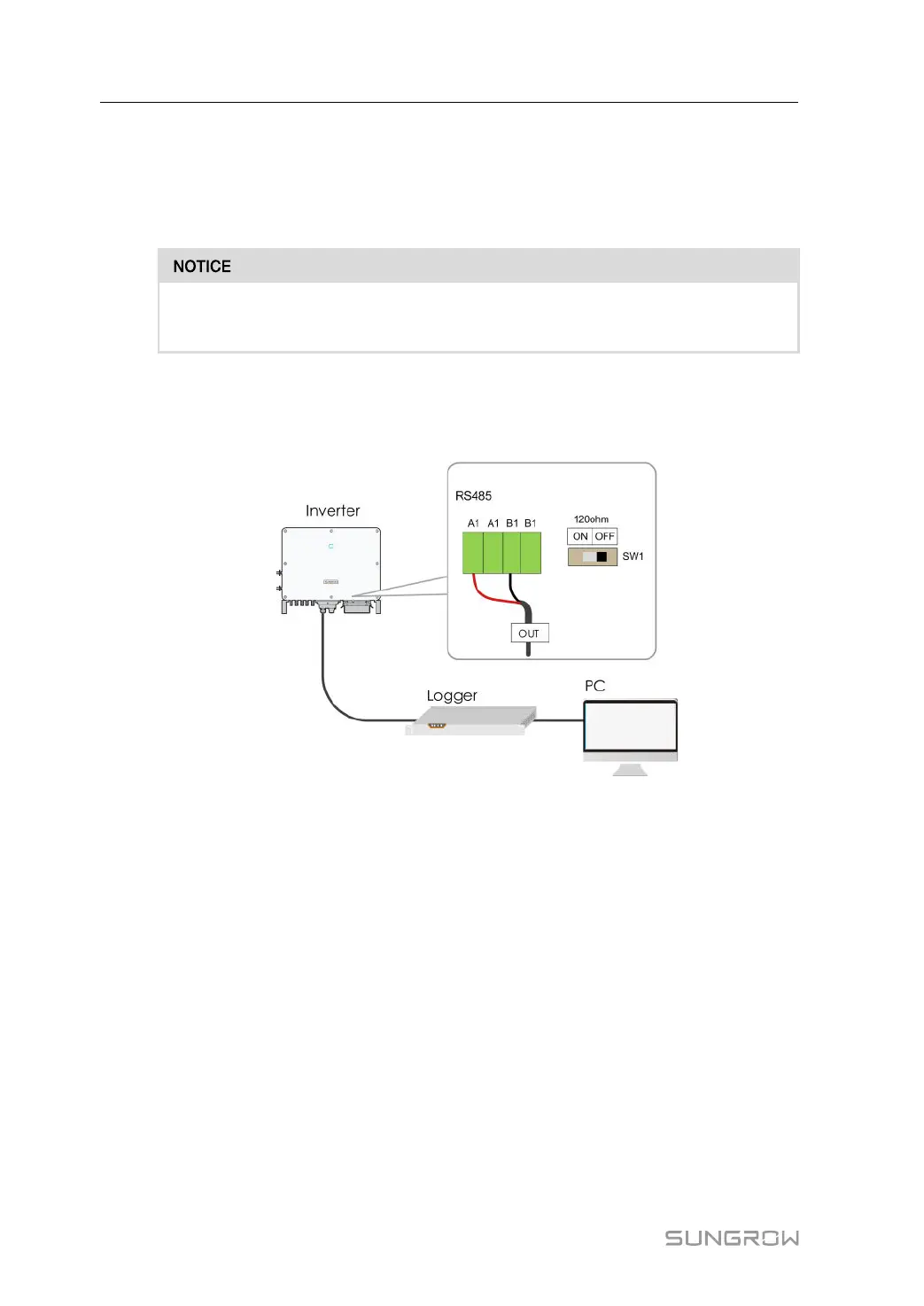

figure 5-4 Single-inverter Connection
Multi-inverter Communication System
In case of multiple inverters, all the inverters can be connected via RS485 cables in the
daisy chain manner.
5 Electrical Connection User Manual

Sungrow SG50CX Specifications

General

Max. DC Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of MPPTs	4
Rated AC Output Power	50 kW
Max. AC Output Current	76 A
Frequency	50 Hz / 60 Hz
Efficiency	98.6%
Start Voltage	200 V
Number of DC Inputs per MPPT	2
Max. AC Apparent Power	55 kVA
AC Voltage Range	310 V - 480 V
Power Factor at Rated Power	1
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
THDi	< 3%
DC Switch	Yes
AC Surge Protection	Type II
DC Surge Protection	Type II
Protection Class	I
Cooling Method	Smart forced air cooling
Protection Degree	IP66
Protection Level	IP66
Operating Temperature Range	-25°C to +60°C
Humidity	0-100%
AC Output Voltage	3 / N / PE, 220 V / 380 V, 230 V / 400 V
