Sungrow SG50CX User Manual

69
7.3 Function Overview

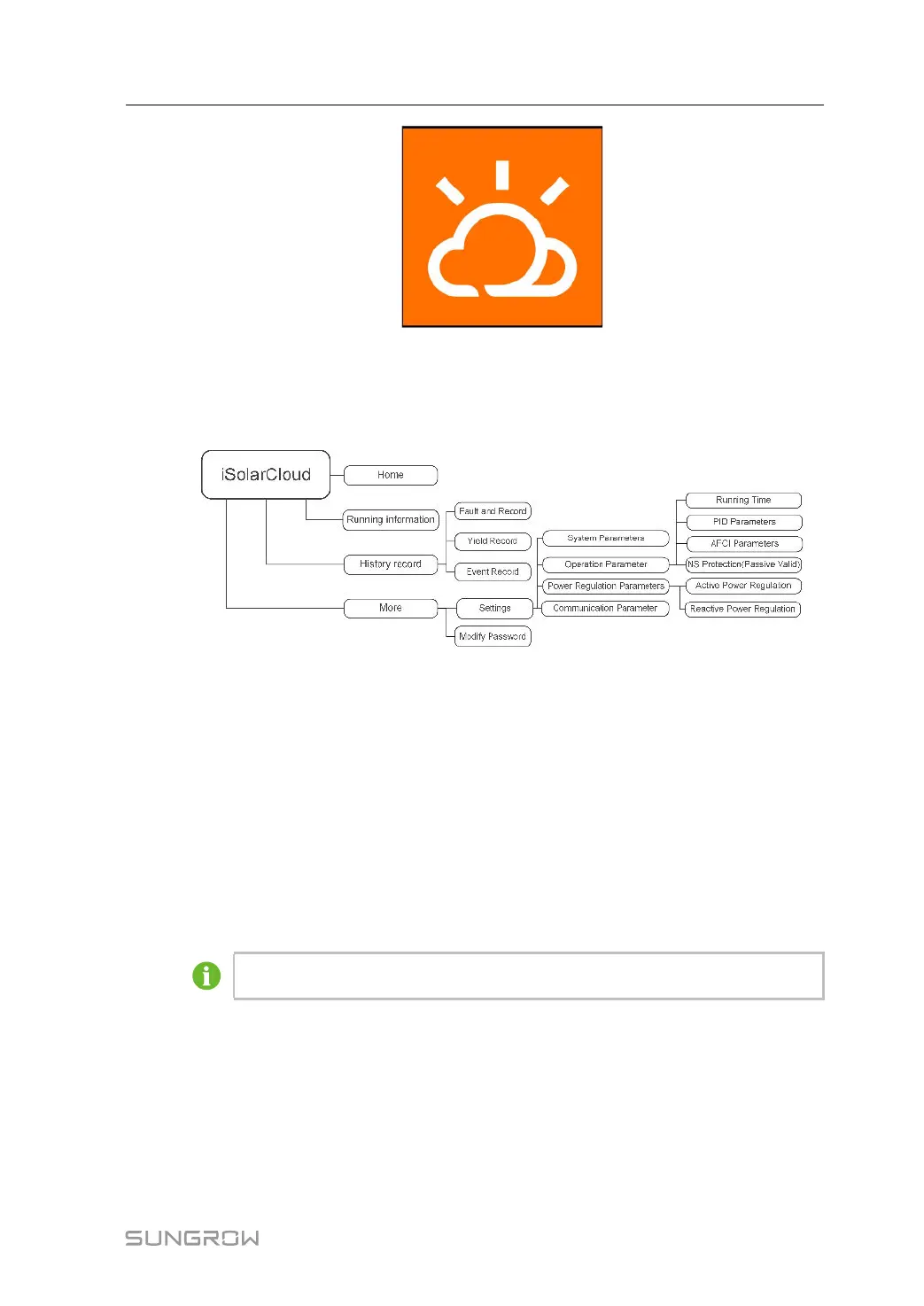

The App provides parameter viewing and setting functions, as shown in the following figure.
figure 7-1 App Function Tree Map
7.4 Login
7.4.1 Requirements
The following requirements should be met:
• The AC or DC side of the inverter is powered-on.
• The mobile phone is within 5 meters away from the inverter and there are no obstructions
in between.
• The Bluetooth function of the mobile phone is enabled.
The inverter can only pair with one phone at a time through Bluetooth.
7.4.2 Login Procedure
Step 1 Open the App to enter the login page, tap Local Access at the bottom of the page to go to
the next page.
User Manual 7 iSolarCloud App

Sungrow SG50CX Specifications

General

Max. DC Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of MPPTs	4
Rated AC Output Power	50 kW
Max. AC Output Current	76 A
Frequency	50 Hz / 60 Hz
Efficiency	98.6%
Start Voltage	200 V
Number of DC Inputs per MPPT	2
Max. AC Apparent Power	55 kVA
AC Voltage Range	310 V - 480 V
Power Factor at Rated Power	1
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
THDi	< 3%
DC Switch	Yes
AC Surge Protection	Type II
DC Surge Protection	Type II
Protection Class	I
Cooling Method	Smart forced air cooling
Protection Degree	IP66
Protection Level	IP66
Operating Temperature Range	-25°C to +60°C
Humidity	0-100%
AC Output Voltage	3 / N / PE, 220 V / 380 V, 230 V / 400 V
