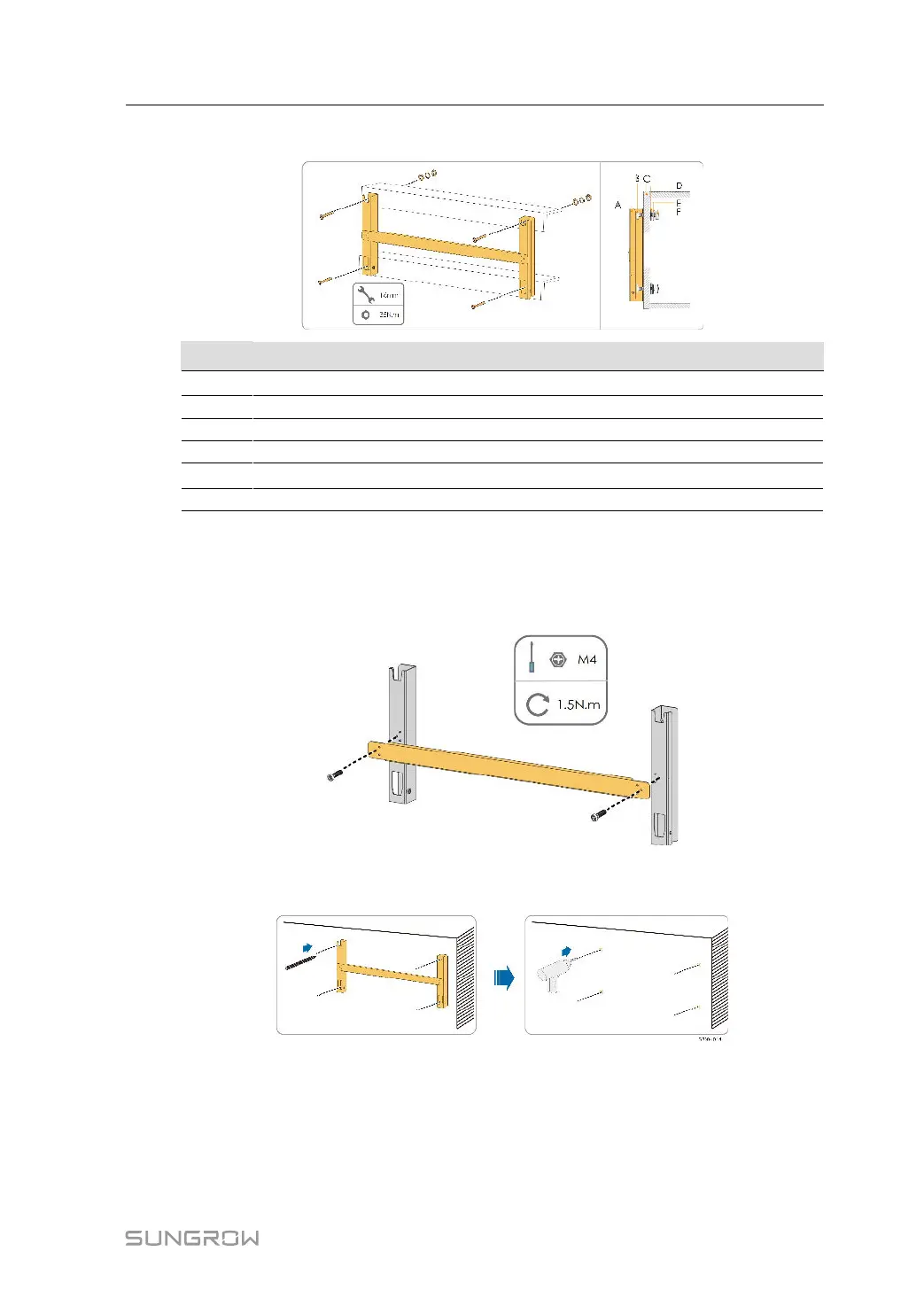

Step 3 Secure the mounting-bracket with bolts.
No.
Components Description
A
Mounting-bracket
–
B Full threaded bolt M10*45
C Metal bracket
–
D Flat washer
–
E
Spring washer
–
F Hex nuts
–
- - End
4.5.2 Wall-Mounted Installation
Step 1 Assemble the mounting-bracket.
Step 2 Level the assembled mounting-bracket by using the level, and mark the positions for drilling
holes.
User Manual 4 Mechanical Mounting

Sungrow SG50CX Specifications

General

Max. DC Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of MPPTs	4
Rated AC Output Power	50 kW
Max. AC Output Current	76 A
Frequency	50 Hz / 60 Hz
Efficiency	98.6%
Start Voltage	200 V
Number of DC Inputs per MPPT	2
Max. AC Apparent Power	55 kVA
AC Voltage Range	310 V - 480 V
Power Factor at Rated Power	1
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
THDi	< 3%
DC Switch	Yes
AC Surge Protection	Type II
DC Surge Protection	Type II
Protection Class	I
Cooling Method	Smart forced air cooling
Protection Degree	IP66
Protection Level	IP66
Operating Temperature Range	-25°C to +60°C
Humidity	0-100%
AC Output Voltage	3 / N / PE, 220 V / 380 V, 230 V / 400 V
