Sungrow SG50CX User Manual

70
Step 2 Establish the Bluetooth connection by either of the two following ways. If the LED indicator
flashes blue, the connection is successfully established.
• Scan the QR code on the side of the inverter for Bluetooth connection.
• Tap "Manual connection" and select "Others" at the bottom of the page, the Bluetooth
search page will automatically pop up, and select the inverter to be connected according
to the SN on the nameplate on the side of the inverter body.

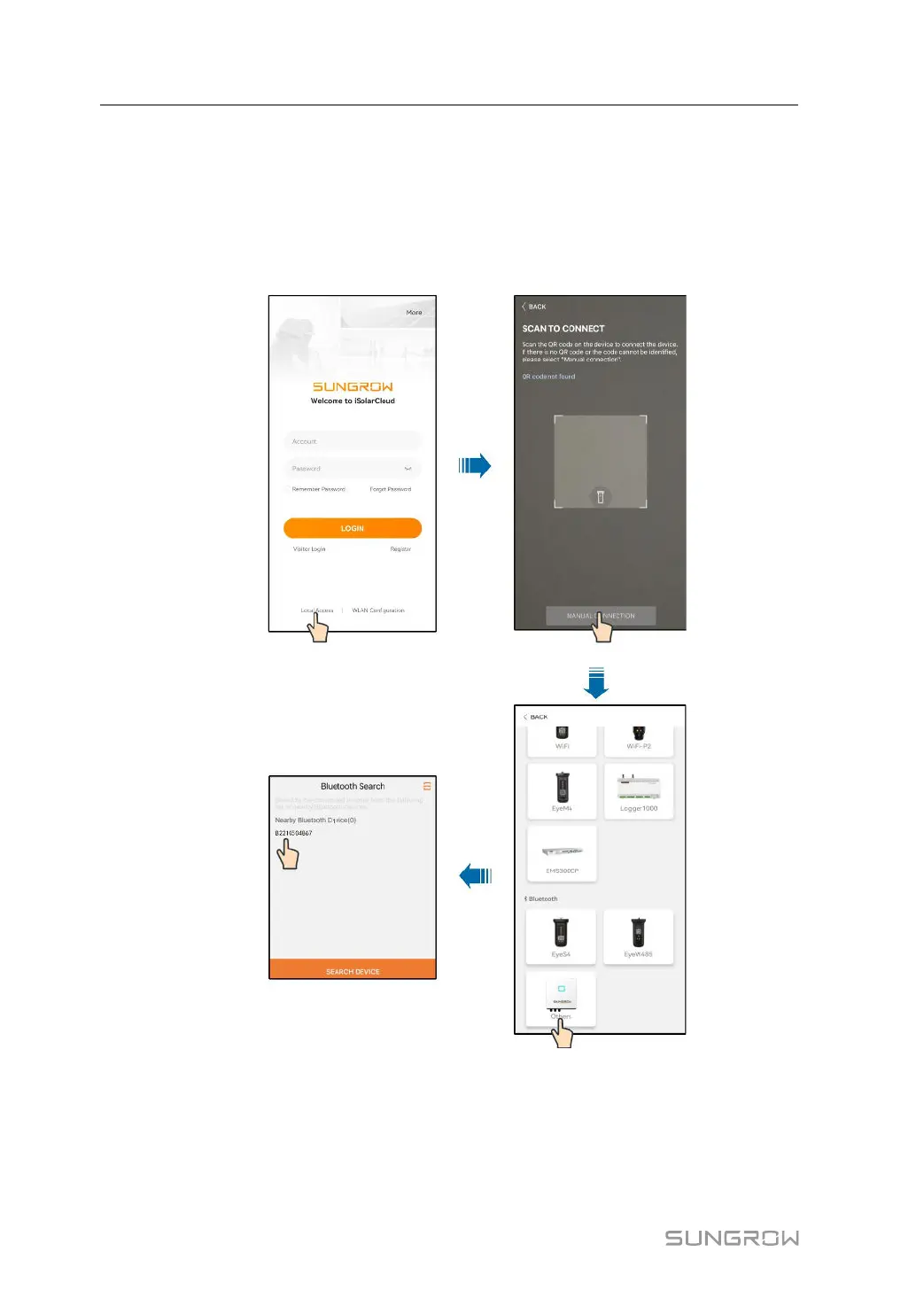

figure 7-2 Bluetooth Connection
Step 3 Enter the identity verification interface after the Bluetooth connection is established.
7 iSolarCloud App User Manual

Sungrow SG50CX Specifications

General

Max. DC Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of MPPTs	4
Rated AC Output Power	50 kW
Max. AC Output Current	76 A
Frequency	50 Hz / 60 Hz
Efficiency	98.6%
Start Voltage	200 V
Number of DC Inputs per MPPT	2
Max. AC Apparent Power	55 kVA
AC Voltage Range	310 V - 480 V
Power Factor at Rated Power	1
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
THDi	< 3%
DC Switch	Yes
AC Surge Protection	Type II
DC Surge Protection	Type II
Protection Class	I
Cooling Method	Smart forced air cooling
Protection Degree	IP66
Protection Level	IP66
Operating Temperature Range	-25°C to +60°C
Humidity	0-100%
AC Output Voltage	3 / N / PE, 220 V / 380 V, 230 V / 400 V
