Sungrow SG50CX User Manual

75

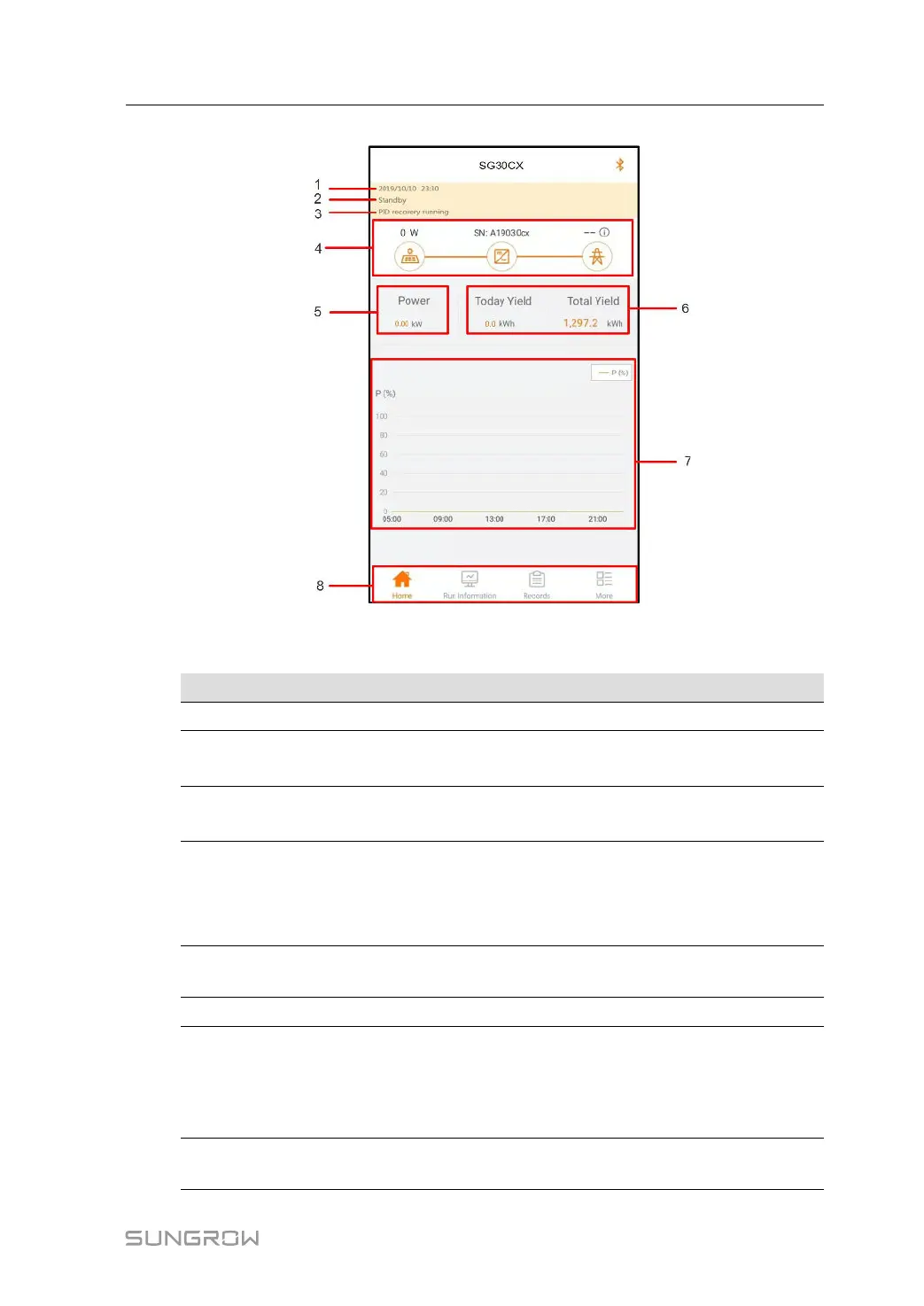

figure 7-6 Home Page
table 7-2 Home Page Description
No.
Designation Description
1 Date and time
System date and time of the inverter
2 Inverter state
Present operation state of the inverter. For details, refer to
"table 7-3 Description of Inverter State".
3 PID function state
Present state of the PID function. For details, refer to
"table
7-4 Description of PID State"
4 Power flow chart
Display the PV power generation power, feed-in power, etc.
The line with an arrow indicates energy flow between con-
nected devices, and the arrow pointing indicates energy
flow direction.
5
Power generation
Today power yield and accumulative power yield of the
inverter
6
Real-time power Output power of the inverter
7 Power curve
Curve showing change of power between 5 am and 23 pm
every day
(Each point on the curve represents the percentage of
present inverter power to rated power)
8
Navigation bar
Including "Home", "Run Information", "Records", and
"More"
User Manual 7 iSolarCloud App

Sungrow SG50CX Specifications

General

Max. DC Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of MPPTs	4
Rated AC Output Power	50 kW
Max. AC Output Current	76 A
Frequency	50 Hz / 60 Hz
Efficiency	98.6%
Start Voltage	200 V
Number of DC Inputs per MPPT	2
Max. AC Apparent Power	55 kVA
AC Voltage Range	310 V - 480 V
Power Factor at Rated Power	1
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
THDi	< 3%
DC Switch	Yes
AC Surge Protection	Type II
DC Surge Protection	Type II
Protection Class	I
Cooling Method	Smart forced air cooling
Protection Degree	IP66
Protection Level	IP66
Operating Temperature Range	-25°C to +60°C
Humidity	0-100%
AC Output Voltage	3 / N / PE, 220 V / 380 V, 230 V / 400 V
