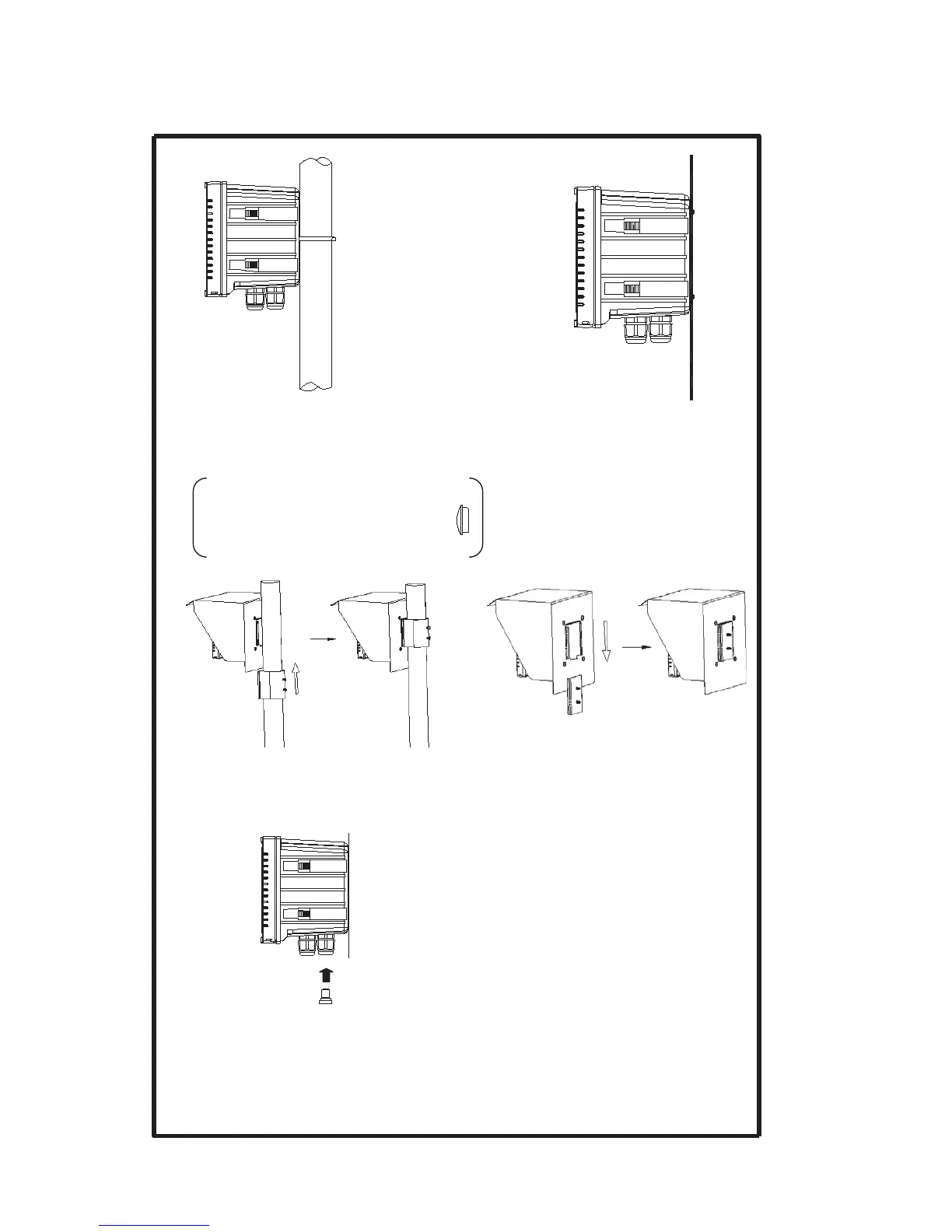

2.3 Illustration of wall mounting and pipe mounting
Installation of pipe mounting,
Fixed with U-shaped pipe clamp.
Optional, Order Number烉8-34
ġġ
Installation of wall mounting.
Fixed with 4 x M5 screws.
Sun shield (Pipe mounting, Optional)
Order NO烉8-35為8-35-1
Sun shield (Wall mounting, Optional)
Order NO烉8-35為8-35-2
Penetrate the two prepared holes in the rear cover and fix
the U-shaped pipe clip. In order to prevent from the
water vapor, install two waterproof squeezed caps into
the holes from inner rear cover.
Insert the single hole rubber plug into the
unused cable gland, and then tighten up
the cable gland to prevent from the
penetration of water vapor.
п
