2.Assembly and installation
2.1 Transmitter installation
This transmitter can be installed through panel mounting, wall mounting and 2ȿ pipe mounting.
Installation of panel mounting: First, prepare a square hole of 138mm x 138mm on the panel box,
and then insert the controller directly into the panel box. Insert the accessorial mounting bracket
from the rear, and make it be fixed into pickup groove.

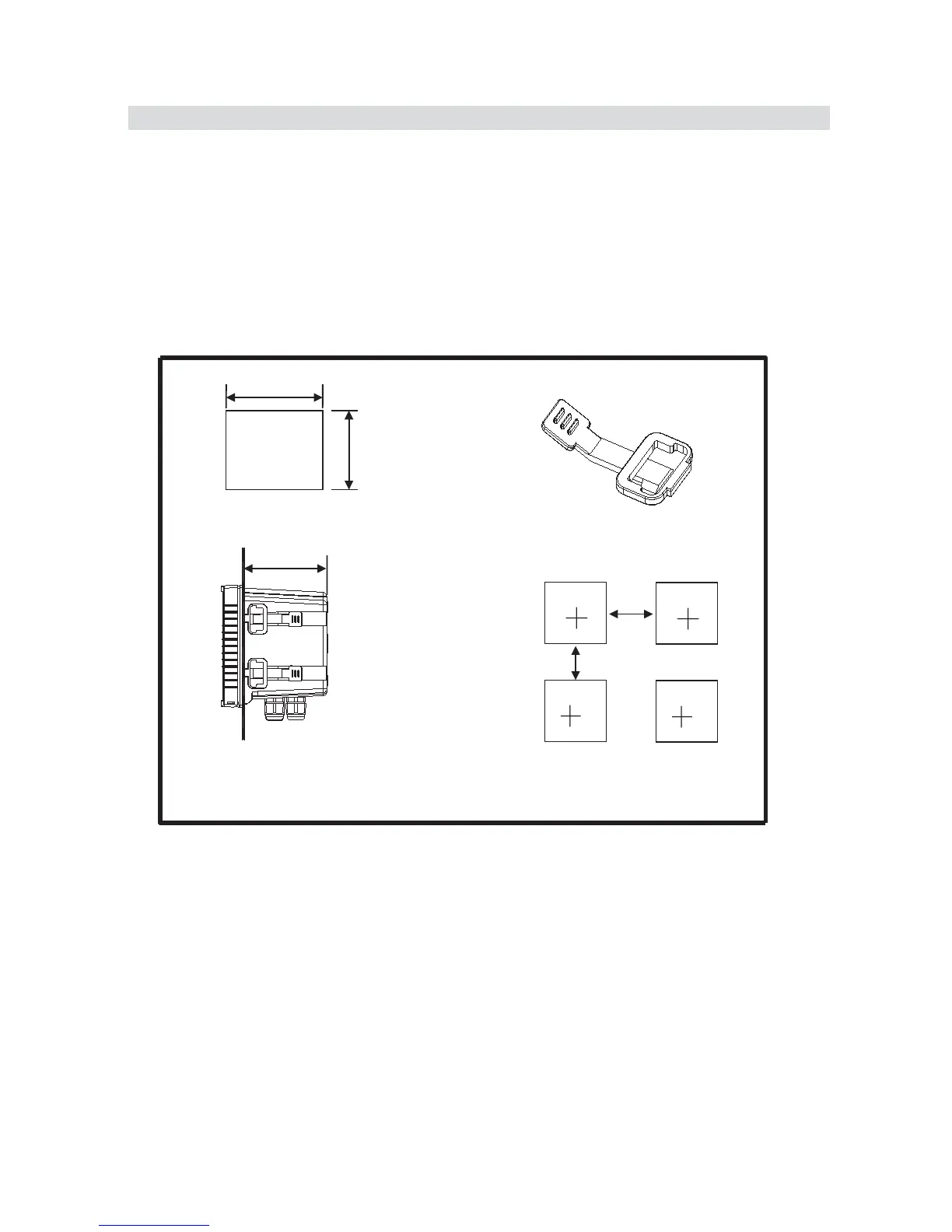

2.2 Illustration of panel mounting
ġ
91 mm
138 mm
138 mm
Hole size
42 mm
為
42 mm
為
Mounting bracket
Hole distances on the panel box
Illustration of panel mounting,
fixed with mounting bracket
