Suntex PC-3310 - Illustration and Description of Junction Box

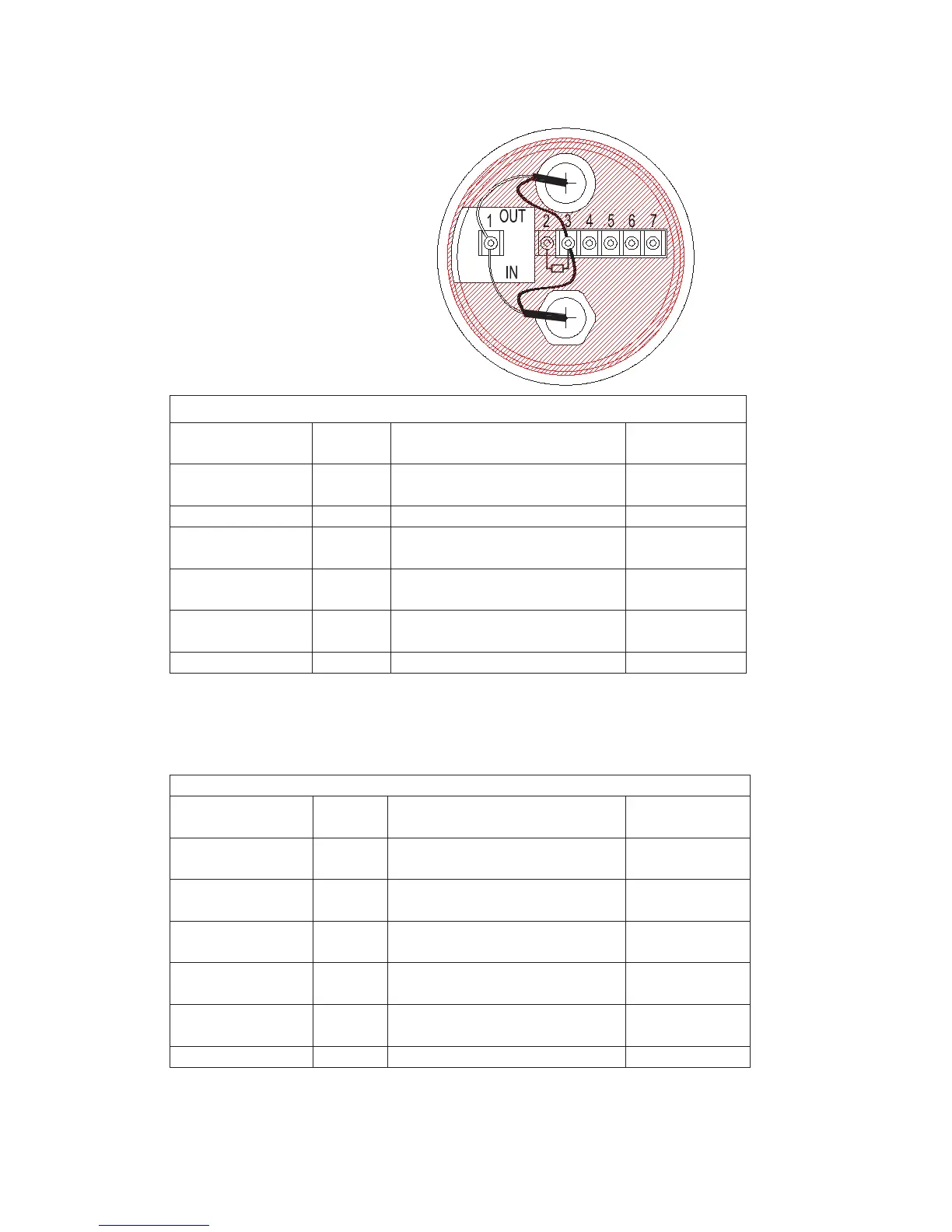

2.5 Illustration and description of junction box
(Two-wire distributing system
and Three-wire distributing system)
(1) Two-wire distributing system
INPUT terminals
Terminal
No.
OUTPUT terminals
Terminals on
Transmitter
Coaxial inner 1 Coaxial inner’s extension wire for
electrode
GLASS
Shield (forbidden) 2 Shield (forbidden) ------
Coaxial shield 3 Coaxial shield’s extension wire for
electrode
REF
Temperature probe
red wire
4 Red wire’s extension wire for
electrode
T/P
Temperature probe
green wire
5 Green wire’s extension wire for
electrode
SG
Alternative 6, 7 Alternative ------
Note: 1. Extension cable, Order number: 7202-F94009-BK or 7202-RG-58
1.) If temperature probe is not used, the Order No. is 7202-RG-58.
2.) If temperature probe is used, the Order No. is 7202-F94009-BK.
2. If temperatures probe 8-26-3(NTC30K) or 8-26-8(PT1000) is used for two-wire distribution, the
black wire terminal should be forbidden.
(2) Three-wire distributing system
IN terminals
Terminal
No.
OUT terminals
Terminals on
Transmitter
Coaxial inner 1 Coaxial inner’s extension wire for
electrode
GLASS
Solution ground wire
(Shield)
2 Solution ground wire SG
Coaxial Shield 3 Coaxial Shield’s extension wire for
electrode
REF
Temperature probe
red wire
4 Red wire’s extension wire for
electrode
T/P
Temperature probe
green wire
5 Green wire’s extension wire for
electrode
SG
Alternative 6, 7 Alternative ----
Note: 1. The black wire on the temperature probes of 8-26-3(NTC30K) or 8-26-8(PT-1000) is used as special
wire as solution ground rod which is to be connected at terminal 2.
2. The extension cable, Order Number: 7202-F94009-BK, is for system that apply a temperature probe or
solution ground rod.
