Istruction Manual for Operation and Maintenance SPX-960:
4

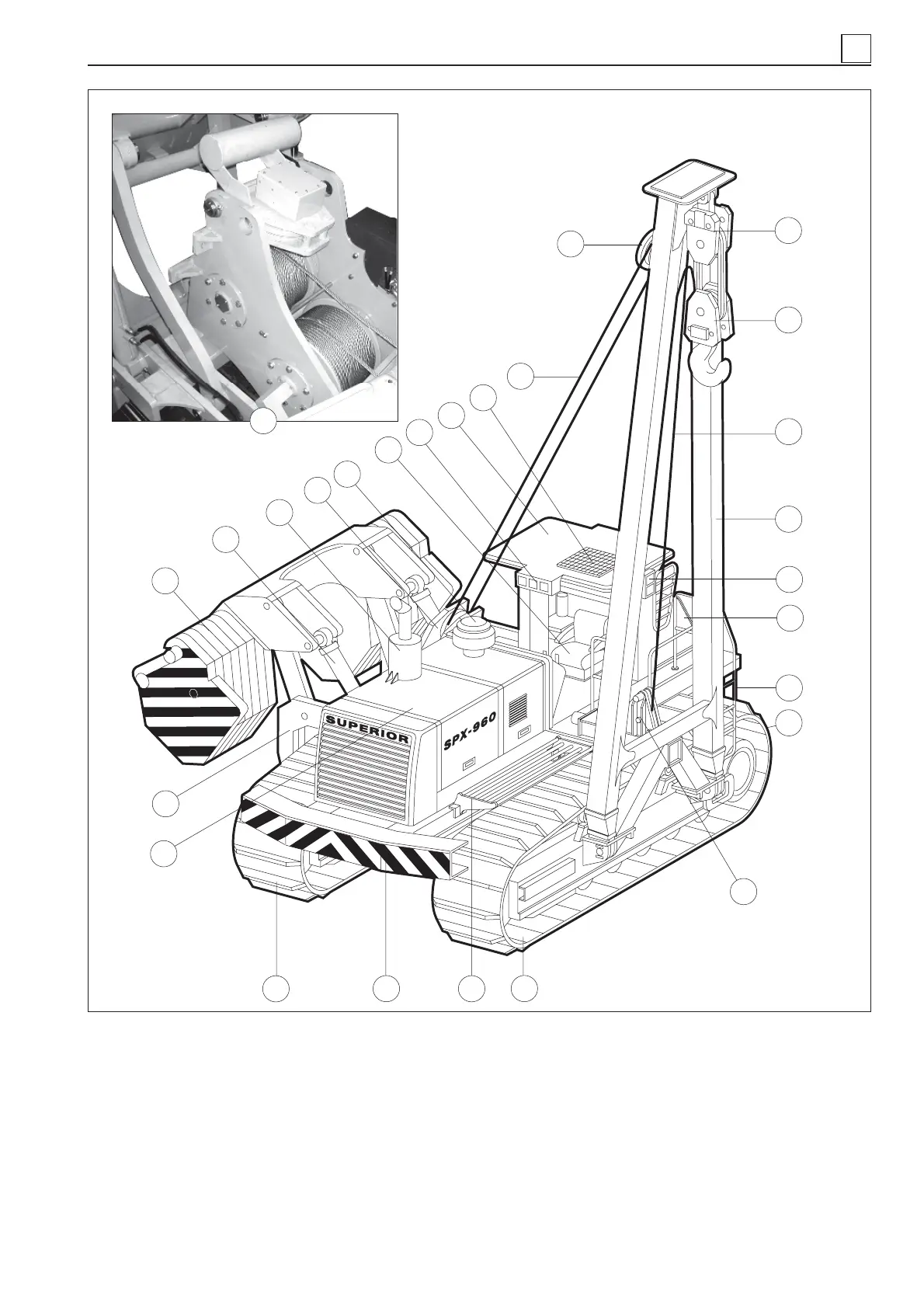

Fig. 20
1) Right-hand frame supporting winch assembly and counterweight frame - 2) Removable leaf counterweight - 3)
Counterweight control cylinders - 4) Exhaust muffl er - 5) Hook and boom control winches - 6) Air pre-fi lter
7) Operator control station - 8) Front lights - 9) Control cabin featuring ROPS-FOPS protection - 10) Protection
grid with inspection hole to monitor boom tip - 11) Boom up/down control cable - 12) Boom support block
13) Articulated sheave block - 14) Hook block - 15) Hook block up/down control cable - 16) Boom frame
17) Side lights - 18) Hydraulic oil/diesel fuel tank. - 19) Steps for climbing up/down cabin (removable) - 20) Pulleys
21) Left-hand track - 22) Open steel fl ooring for block storage during transportation - 23) Bumpers - 24) Right-
hand track - 25) Engine hood with side doors - 26) Rear tow point
5
11
9
7
6
1
4
2
25
14
15
16
13
20
24
23
22
21
5
3
12
8
17
10
19
18
26
4-5
MACHINE OPERATION
