64
FRONT WHEEL INSTALLATION
• Open the quick-release lever (nuts).
• Insert the wheel into the fork ends.
• Set the quick-release lever at the position of 90 degrees from the wheel axis and tighten the wing nut carefully.
• Close the quick-release level in the locked position (this should be done by using your thumb).
• CAUTION: Check whether the wheel is locked using the quick-release mechanism or firmly tightened with nuts.
HANDLEBAR INSTALLATION
• Loosen the screw in the stem until the cone is loosened. Insert it into the front fork tube so that the mark of minimum insertion
isn‘t visible!
• The handlebar should be perpendicular with respect to the front wheel.
• Before tightening, read carefully the specified tightening torques for the installation of carbon handlebars in the stem.
• Check to ensure that the tightening is correct by holding the front wheel between your legs and trying to turn the handlebar.

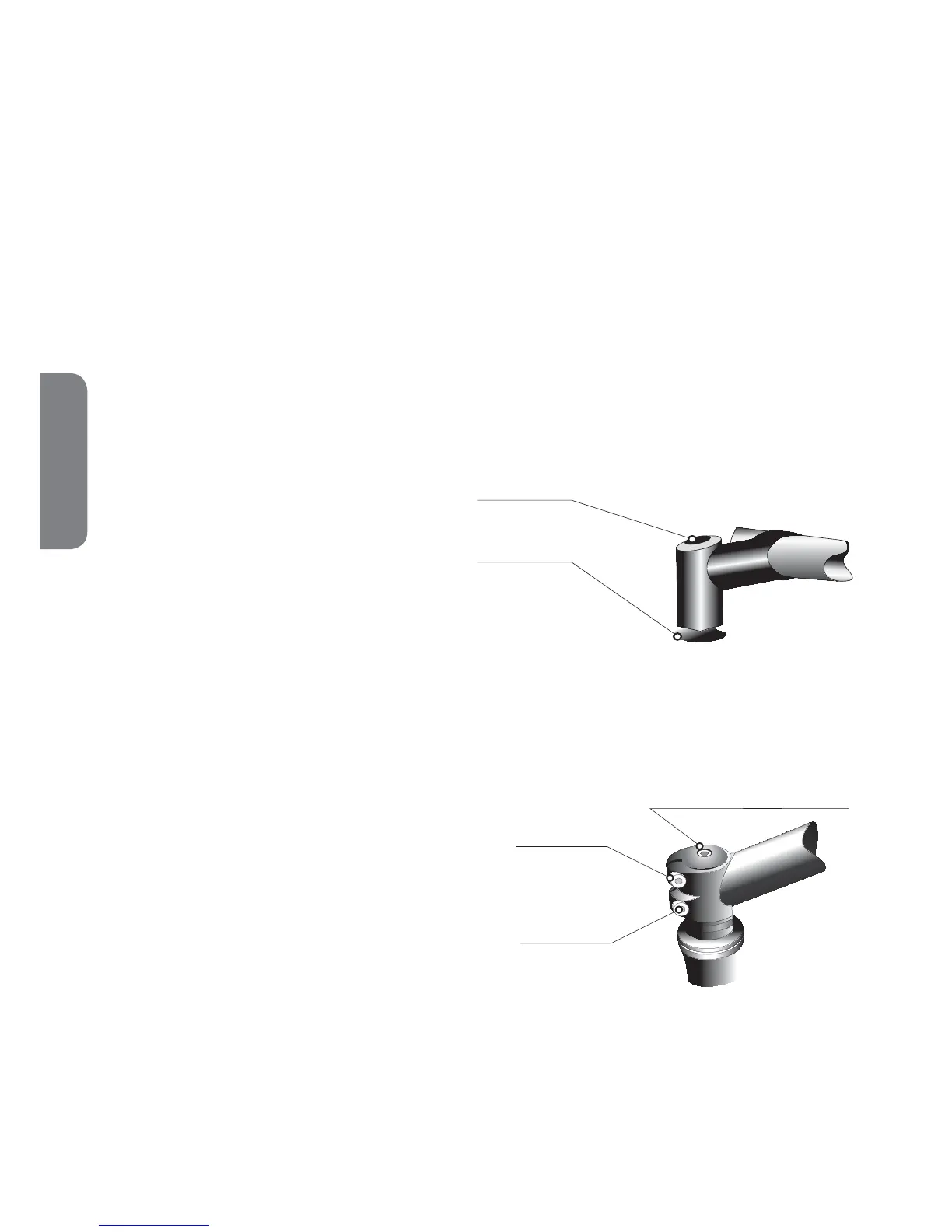

INSTALLATION OF THE THREADED STEM IN THE FORK
• Loosen the screw in the stem until the cone is loose.
Insert it in the front fork tube.
• Insert it so that the mark of minimum insertion isn‘t
visible!
• The handlebar should be perpendicular with respect to
the front wheel.
• Tighten the bolt in the stem firmly.
• Check to ensure that the tightening is correct by holding
the front wheel between your legs and trying to turn the
handlebar.
• CAUTION: Never move the stem above the maximum or stop mark.
INSTALLATION OF THE AHEAD STEM ON THE FORK
• Loosen the face and side bolts in the stem and the quill
assembly bolt. Put it on the front fork tube.
• The handlebar should be perpendicular with respect
to the front wheel.
• Tighten the quill assembly bolt in the stem and all stem bolts
firmly.
• Check to ensure that the tightening is correct by holding
the front wheel between your legs and trying to turn
the handlebar.
• CAUTION: We recommend tightening the stem bolts
with a torque of 7 Nm. Pay close attention so that you don‘t exceed the torque. Excessive tightening could result
in stem damage.
Stem bolt
Quill assembly
1. Loosen
3. Tighten (until play is limited)
2. Loosen
4. Tighten
5. Tighten
ENGLISH
