Supero C7Z97-OCE - HDMI Port; VGA Port; DVI Port; VESA Displayport

Chapter 2: Installation
2-17
B
C
A

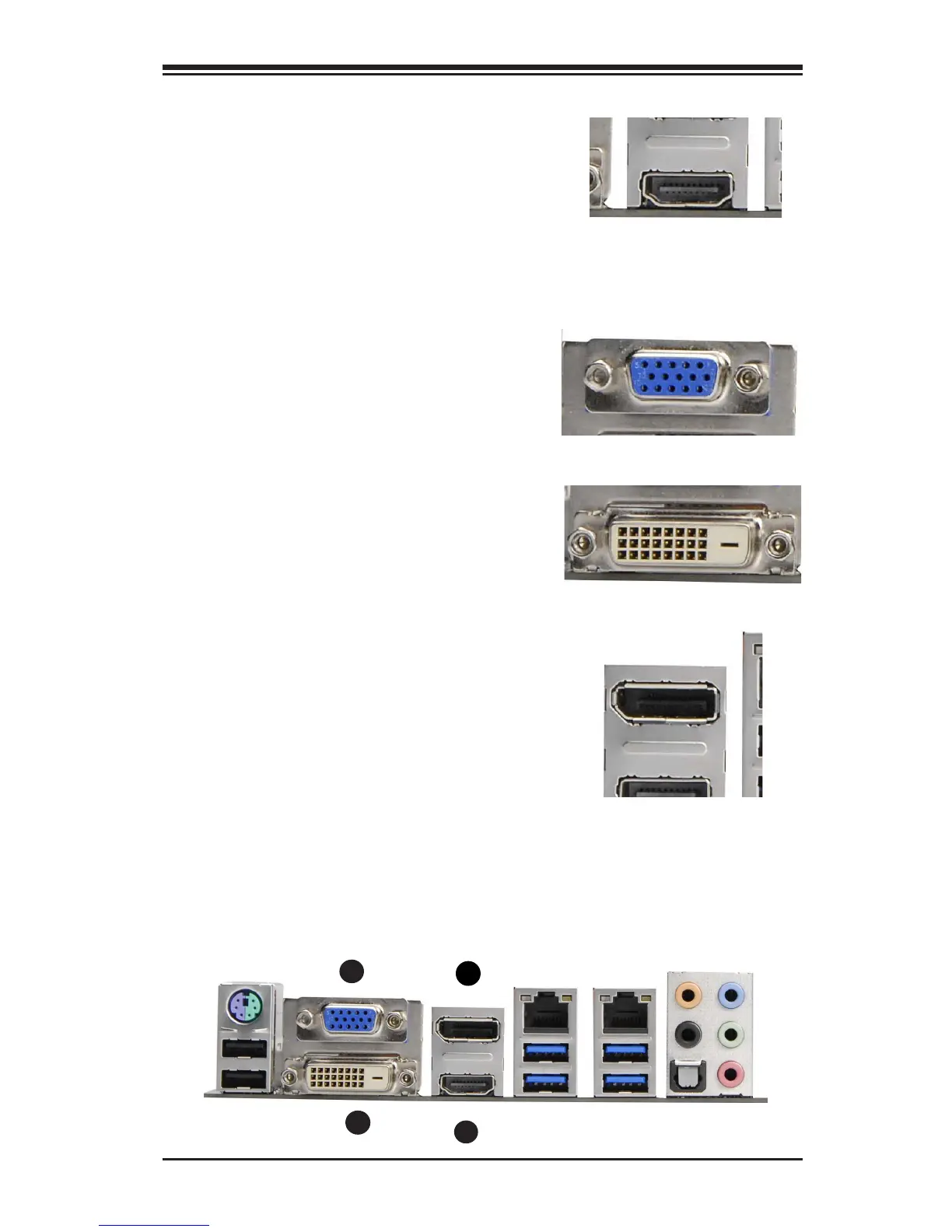

A. HDMI Port
B. VGA Port
C. DVI Port
D. VESA DisplayPort
HDMI Port
One HDMI (High-Denition Multimedia
Interface) is located next to the VGA
port on the I/O backpanel. This con-
nector is used to display both high
definition video and digital sound
through an HDMI capable display, us-
ing a single HDMI cable (not included).
VGA Port
A VGA port is located next to the USB
ports 0/1 on the I/O backpanel. Use
this port to connect to a compatible
VGA display.
DVI Port
A DVI port is located just under the
VGA port on the I/O backpanel. Use
this port to connect to a compatible
DVI (Digital Visual Interface) display.
VESA® DisplayPort™
DisplayPort, develped by the VESA con-
sortium, delivers digital display at a fast
refresh rate. It can connect to virtually
any display device using a DisplayPort
adapter for devices such as VGA, DVI
or HDMI.
D
