Supero C7Z97-OCE User Manual

4-50
Supermicro C7Z97-OCE Motherboard User’s Manual

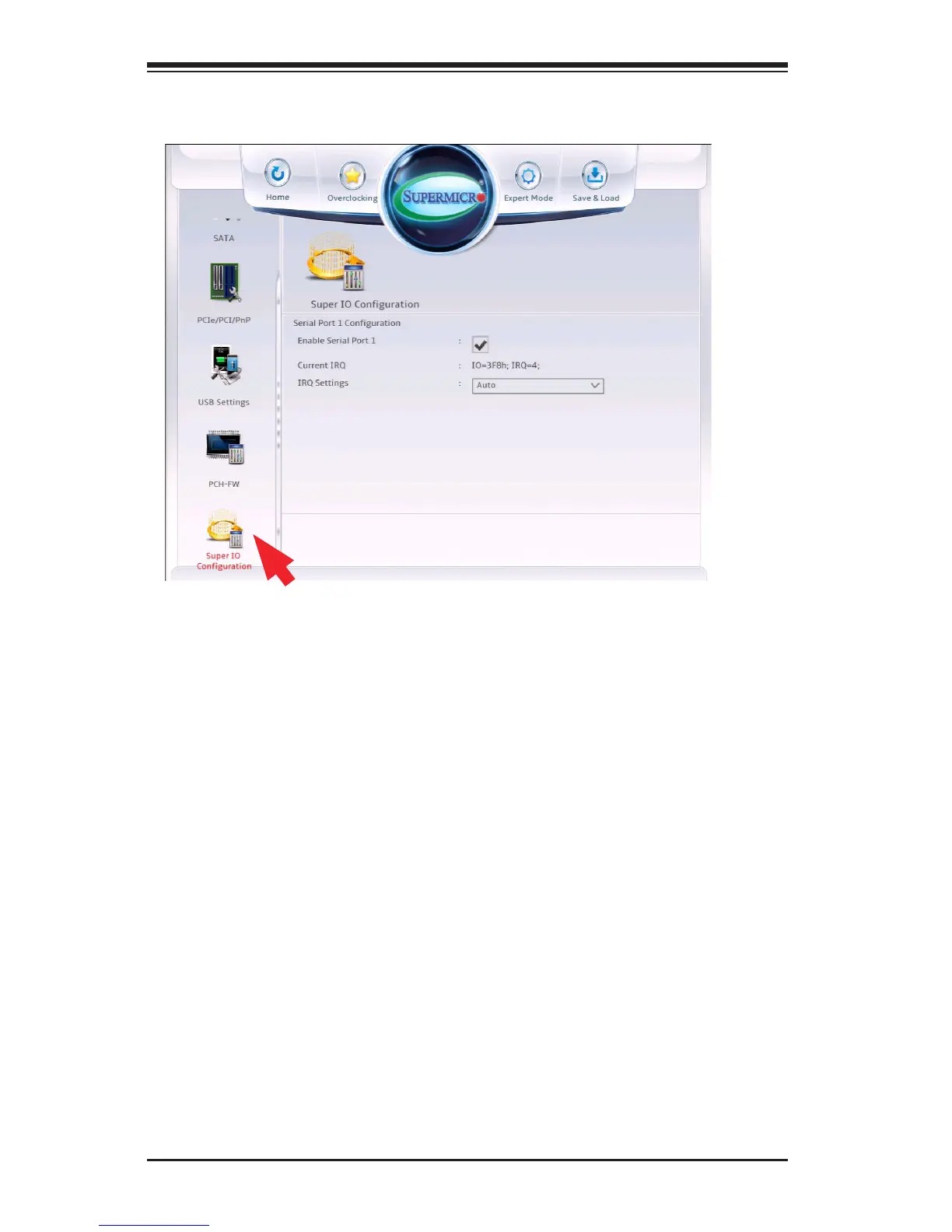

Super IO Configuration
Enable Serial Port 1
This item will Enable or Disable Serial Port 1 (COM1). Place a tick mark
on the box to enable Serial Port 1. The default is Enabled.
Current IRQ
This item displays the current IRQ setting for Serial Port 1 (COM1).
IRQ Settings
This item congures the IRQ setting for Serial Port 1 (COM1).
The options for Serial Port 1 are Auto, IO=3F8h; IRQ=4,
IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, IO=2F8h; IRQ=3,
4, 5, 6, 7, 9, 10, 11, 12), IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10,
11, 12 and IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12.
