Chapter 4: AMI BIOS
4-9

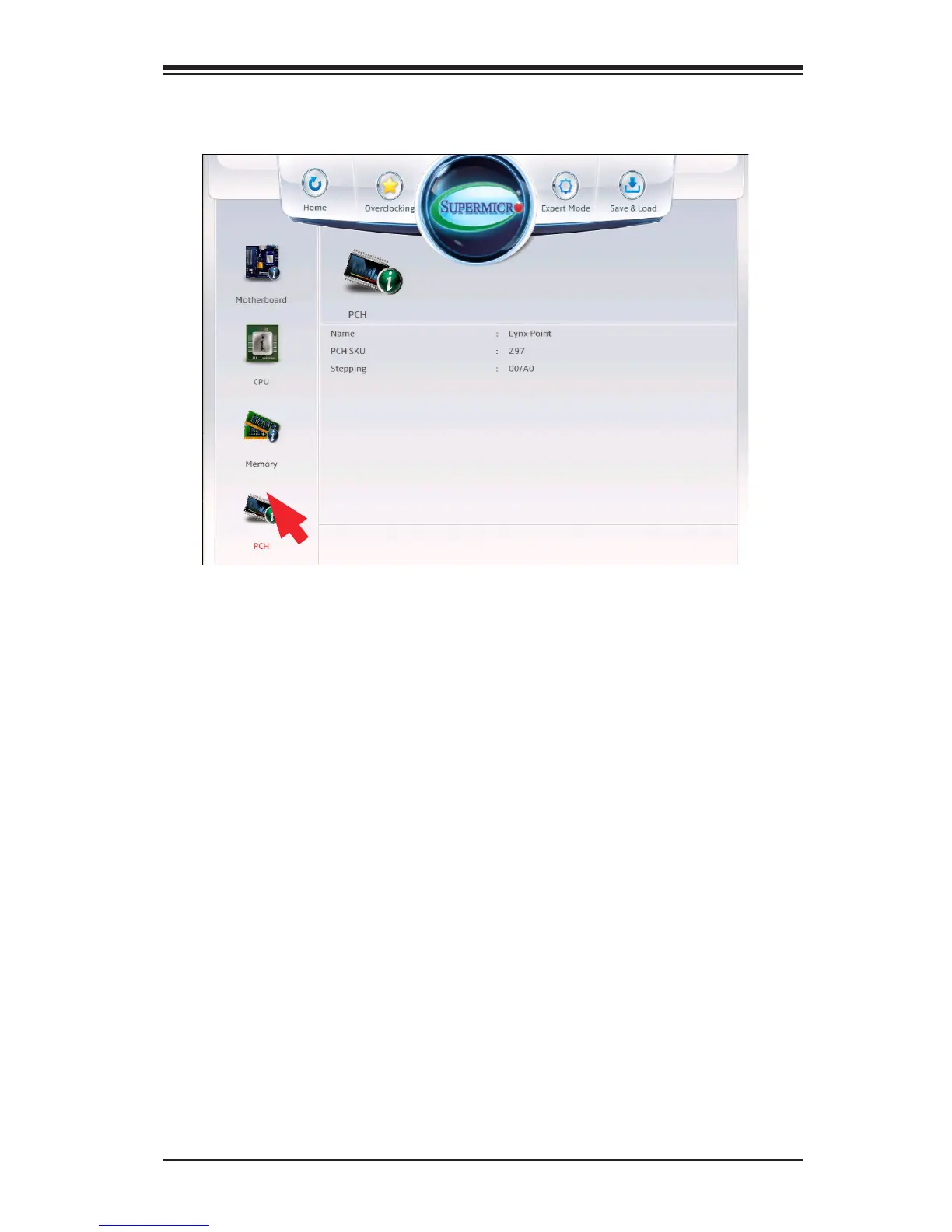

PCH
The following information are be
displayed in this se
ction:
•
Name -
displays the name of the PCH chip (if detected).
•
PCH SKU -
this item displays the part number of the PCH chip.
•
Stepping-
shows the PCH chip's stepping number
.
84
86
