Chapter 4: AMI BIOS
4-51
4-9
Hardware Monitor
Hardware Monitors
for various s
ensors on the motherboard are in th
is
section.

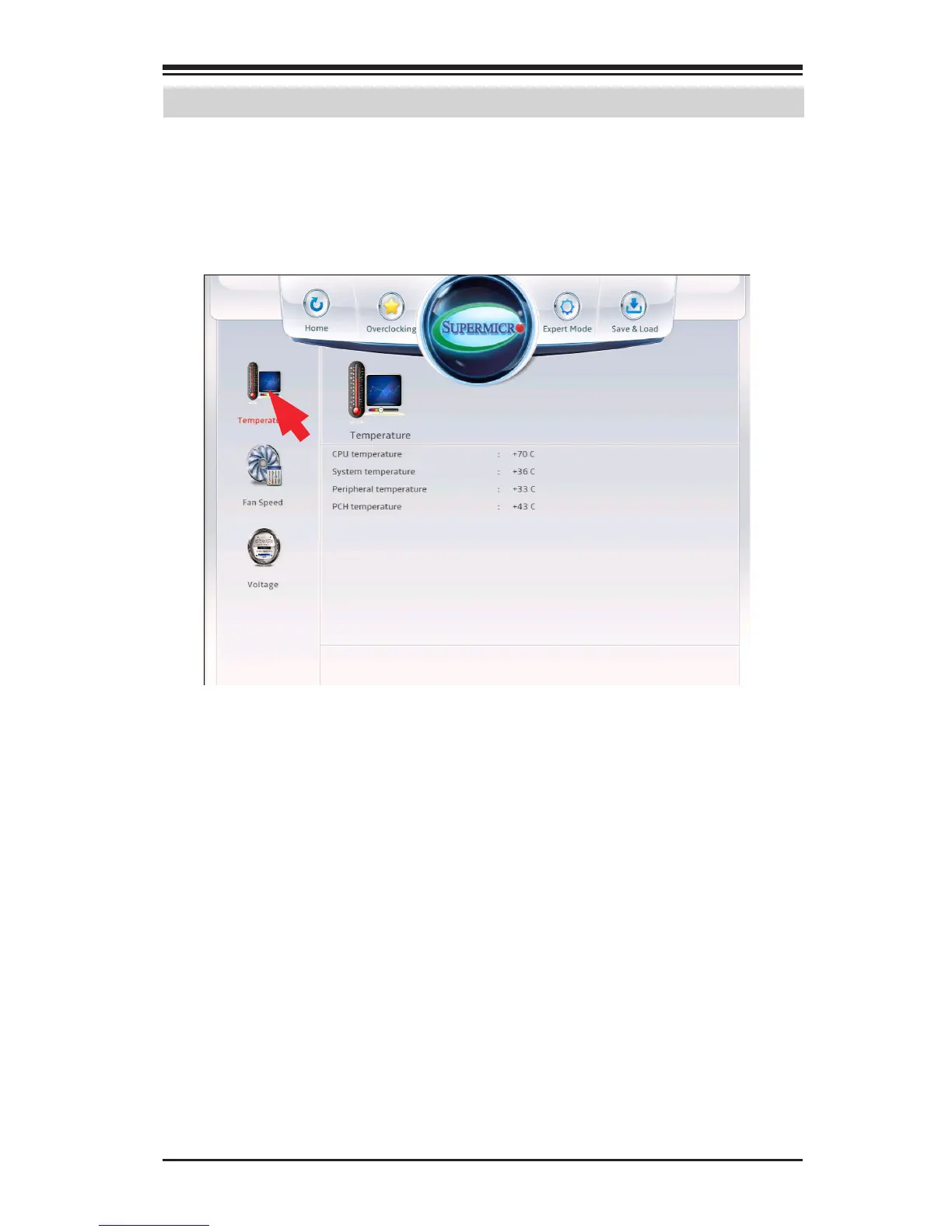

Temperature
The following items will be displa
yed:
•
CPU T
emperature
- displays the CPU temperature detected by PECI.
•
System T
emperature
- indicates the system internal temperature.
•
Peripheral T
emperature
- displays the detected peripheral device tem
-
perature.
•
PCH T
emperature
- indicates the detected PCH chip temperature.
