Chapter 4: AMI BIOS
4-43
4-8
I/O
Set all options for the I/O in this
section.

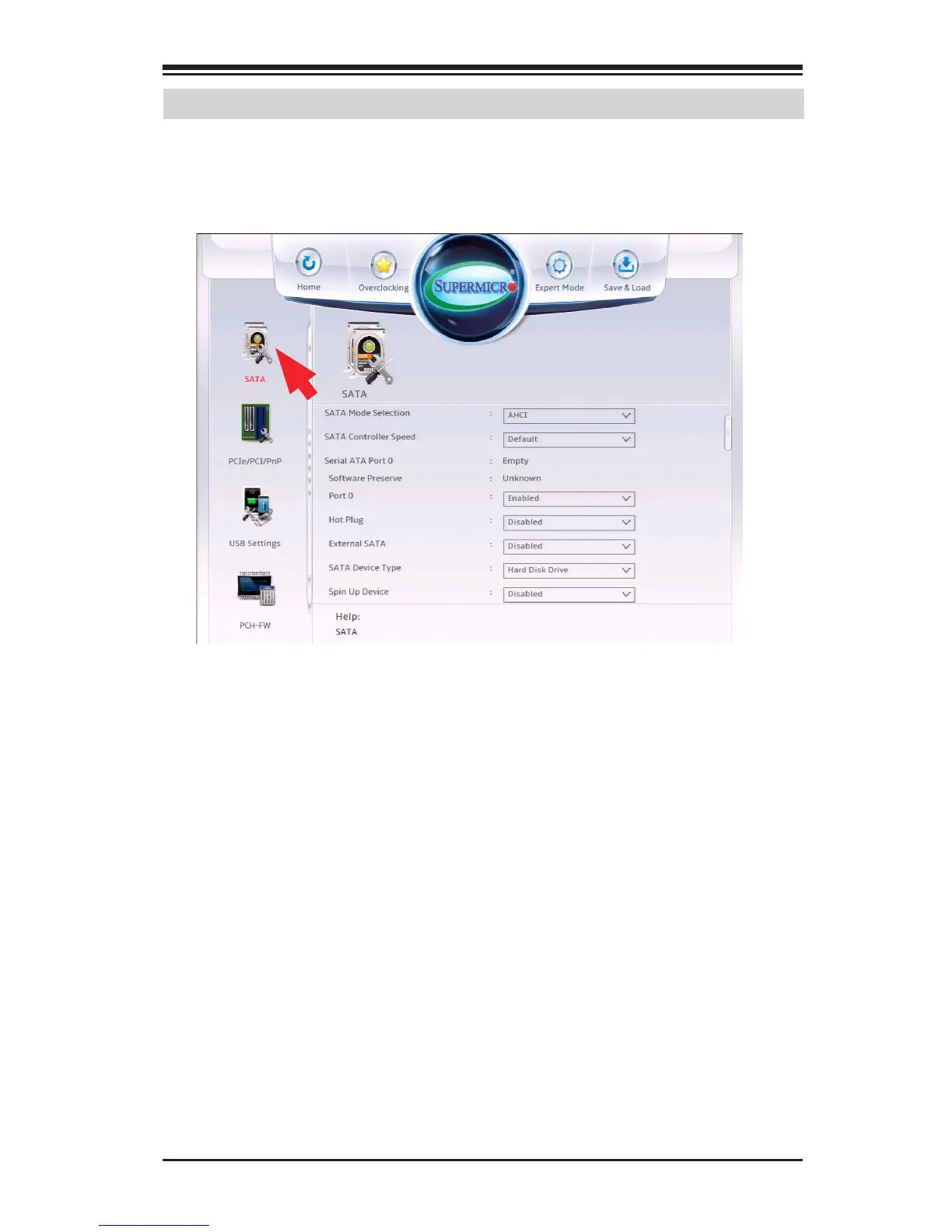

SATA
SATA Controllers
This item Enables or Disables the built
-in SA
T
A controllers on the moth
-
erboard. The options are
Enabled
and Disabled.
SATA Mode Selection
This item selects the mode for
the installed SA
T
A drives. The options are
IDE,
AHCI
and RAID.
SATA Controller Speed (AHCI or RAID Mode only)
This item selects the S
A
T
A Controller Speed. The options are
Default,
Gen1, Gen2 and Gen3.
