Sur-Gard System III - Page 9

5

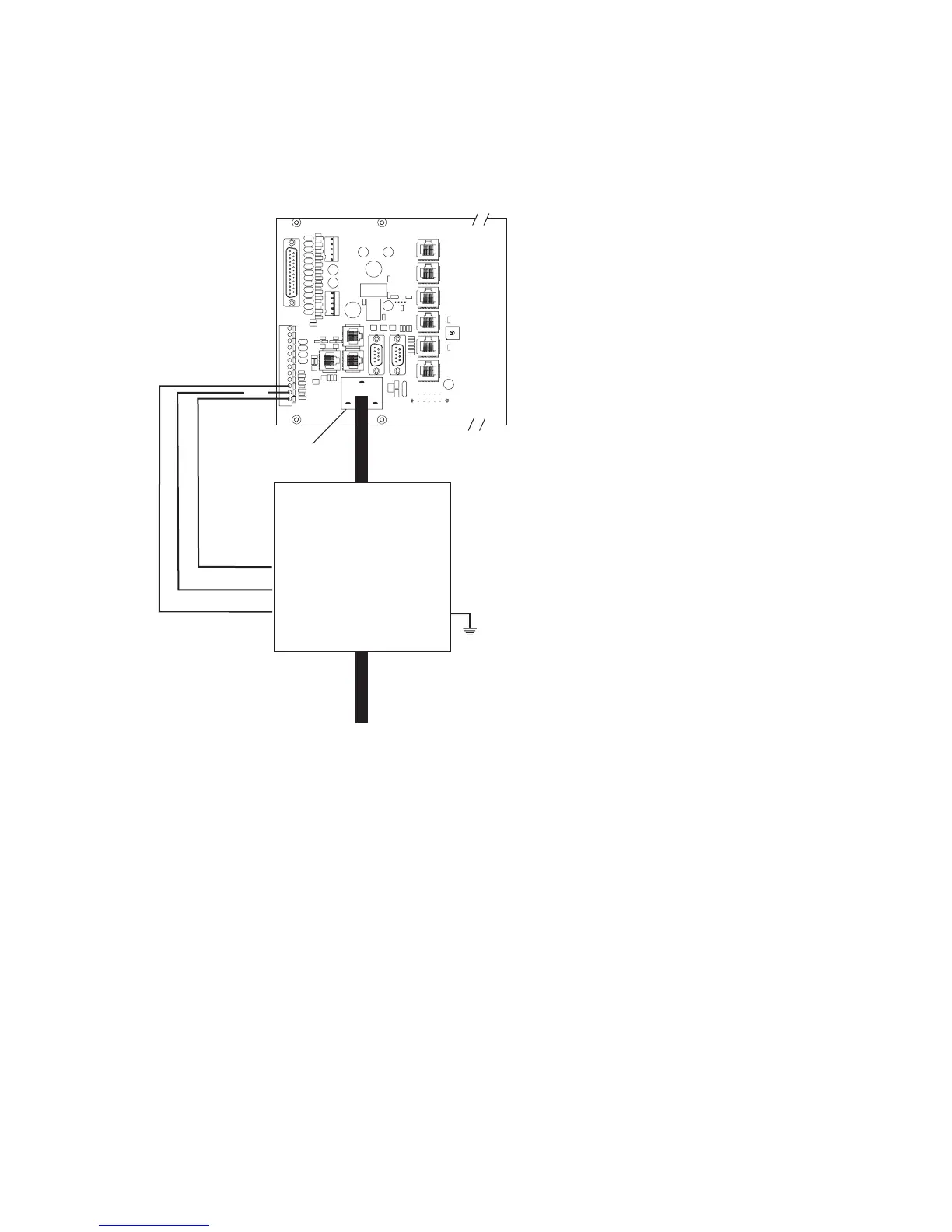

Figure 1-8, System III UPS Supervision Connection Diagram
0
1
2
3
4
5
8
6
7
9
A
B
D
C
E
F
UPS LOW BAT Normally Closed
Common
UPS AC TROUBLE Normally Closed
For UL installations use
UL listed UPS
(uninterrupted power
supply) power supply for
protective-signaling
systems and/or listed
burglar alarm power
supply, as applicable.
Note:
UPS connection is to
be made using dry
contact connections
provided by the UPS.
12V , 25mA DC
WARNING:
To reduce the risk of electric shock the product is provided with
a grounding type power supply IEC receptacle. Connect product
using an appropriate IEC cable to a grounded receptacle.
UPS
SG-System III Backplane
AC In
AC Out
In2
In1
COM
For UL Installation of model SG-System III: UPS Output 120V /60Hz, 2.5A
For model System III CE (not UL Listed): UPS Output 240V 50Hz
AC
AC
/
IEC Power
Connector
EGND
For UL Installation of model SG-System III: UPS Output 120V /60Hz, 2.5A
For model System III CE (not UL Listed): UPS Output 240V 50Hz
AC
AC
/
