IntelliShot & FlexoShot: Operations Manual Page 30
Cleaning the Valve Assembly
1. Turn off and unplug the dispenser.
2. Open the dispenser door.
3. Remove the catch tray, if applicable.
4. Remove the four screws attaching the front panel to the dispenser. Set aside the screws and
front panel for cleaning.
5. Open the valve door by turning the thumbscrew counterclockwise.
6. Remove the product case(s), refillable tanks(s), or bag-in-box and ramp(s) if required.
7. Remove the screw on the metal valve insert and set aside for cleaning. If the metal valve insert
is not attached with a thermistor wire, set it aside for cleaning. Metal valve inserts attached with
a thermistor wire cannot be removed completely and must be cleaned in place.

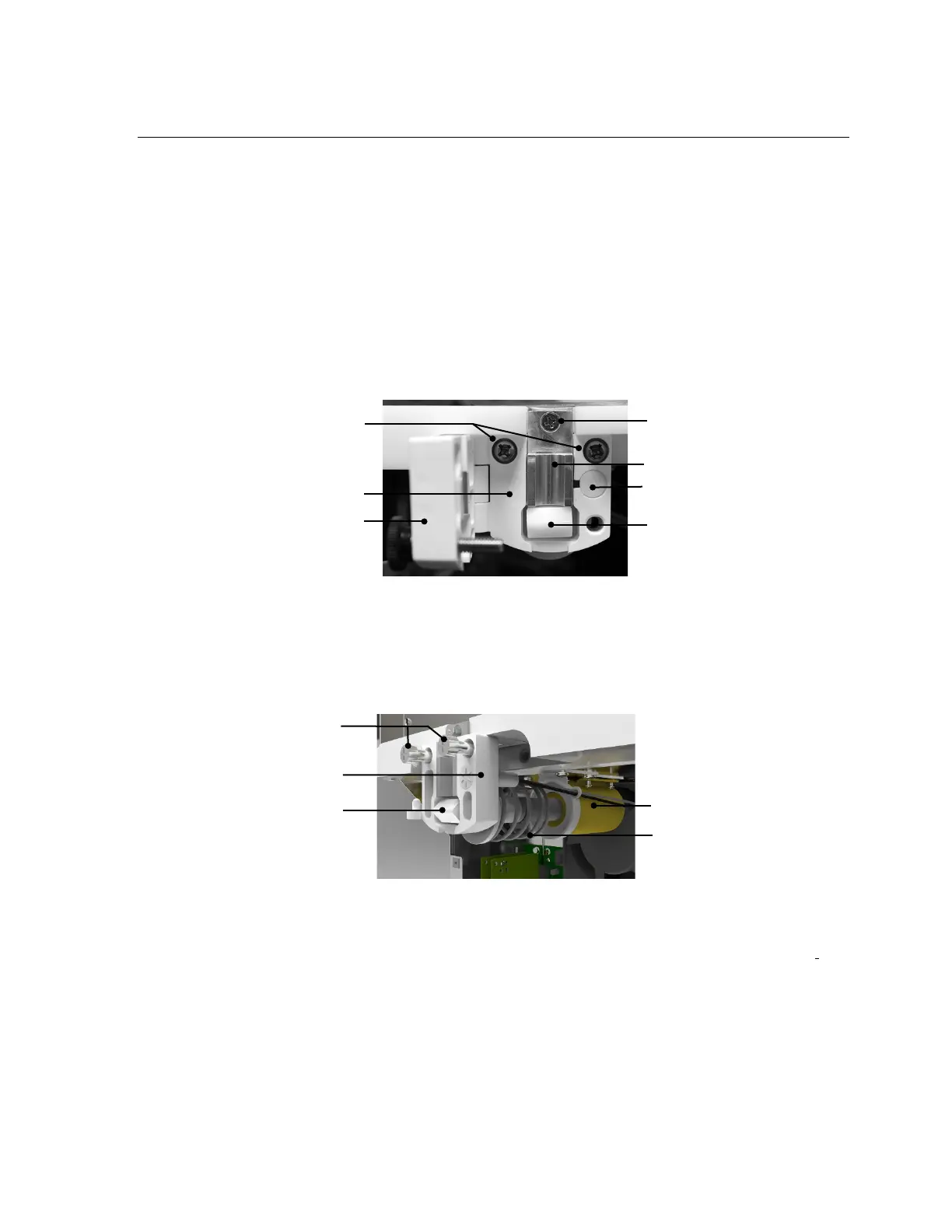

Figure 31: Removing metal valve insert
8. Firmly hold the valve body and remove the two screws from the upper corners of the valve
body (the spring may push the valve assembly forward when removing the screws). Set the
screws aside for cleaning.
Figure 32: Removing valve body
9. Gently remove the valve door from the valve body. Remove the plunger and spring from the
solenoid. If using a non-portion-control dispenser, remove the dispense handle or cup lever.
Set all components aside for cleaning apart from the valve body.
Screw on metal valve insert
Screws on
valve body
Solenoid
Plunger tip
