MPC-385 SERIES OPERATION MANUAL – REV. 3.21K (20201120)
APPENDIX C. FUSE REPLACEMENT
If the controller fails to power up when the power switch is turned on, check the line power
fuses to see if either or both have blown. The fuses are in the fuse holder on the power entry
module on the back of the controller. To remove the fuse holder first unplug the power cord
from the power entry module. Press down on the lever that is located just above the fuse
holder and below the power receptacle and pry the holder straight out of the power entry
module.
The fuse holder holds two fuses. Both fuses are of the same type and rating. If either fuse is
blown, it is recommended that both fuses be replaced.
The type and rating of both fuses are as follows:
5 x 20 mm glass tube, Time Delay (IEC 60127-2, Sheet III)
T2A, 250V
(Examples: Bussmann GDC-2A. GMC-2A or S506-2-R (RoHS); or
Littelfuse 218 200 or 218 200P (RoHS))

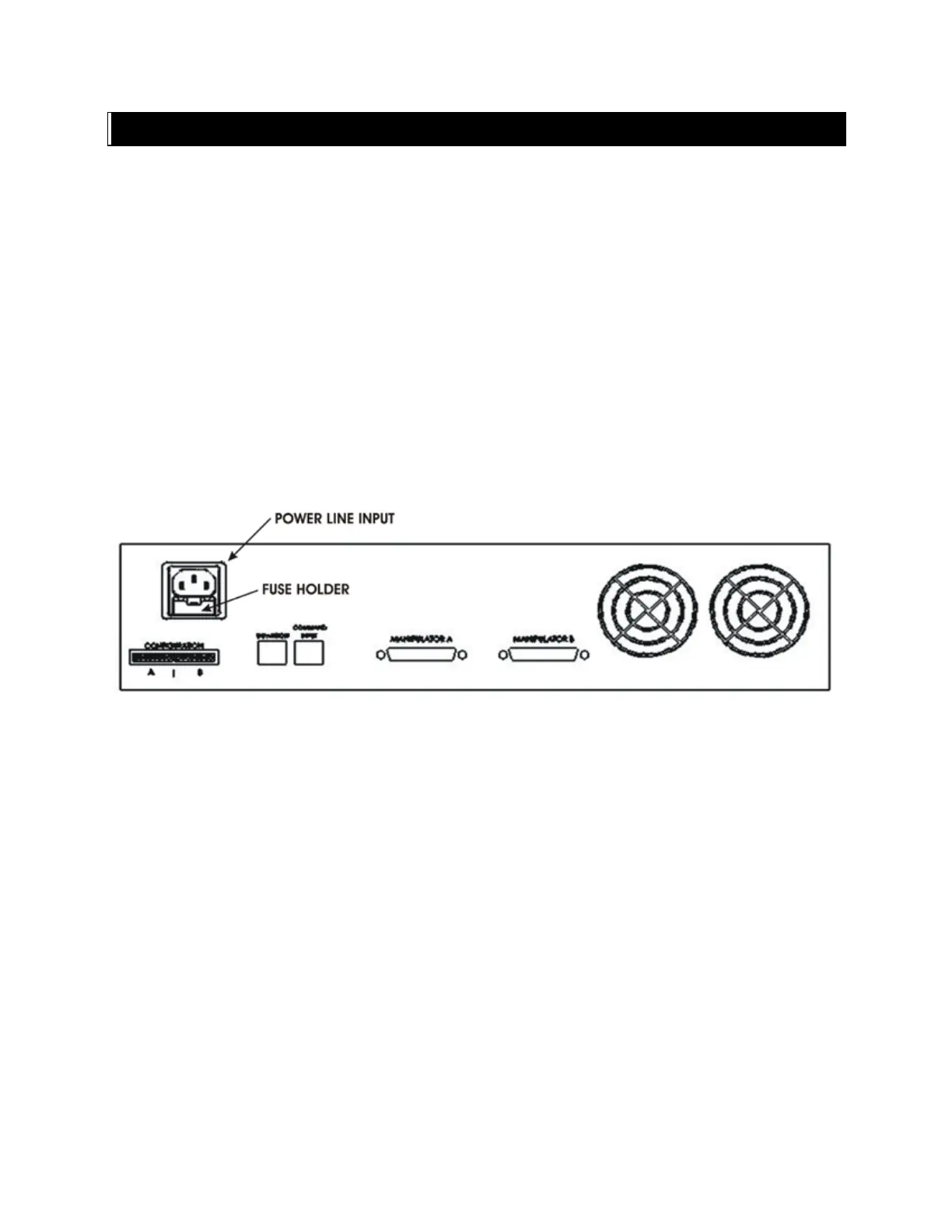

Figure C-1. Rear view of the MPC-200 controller cabinet showing the power entry module and fuse location.
