3.1 System description
The following
Figure 3-1 shows the SV 104IS controls and ports:

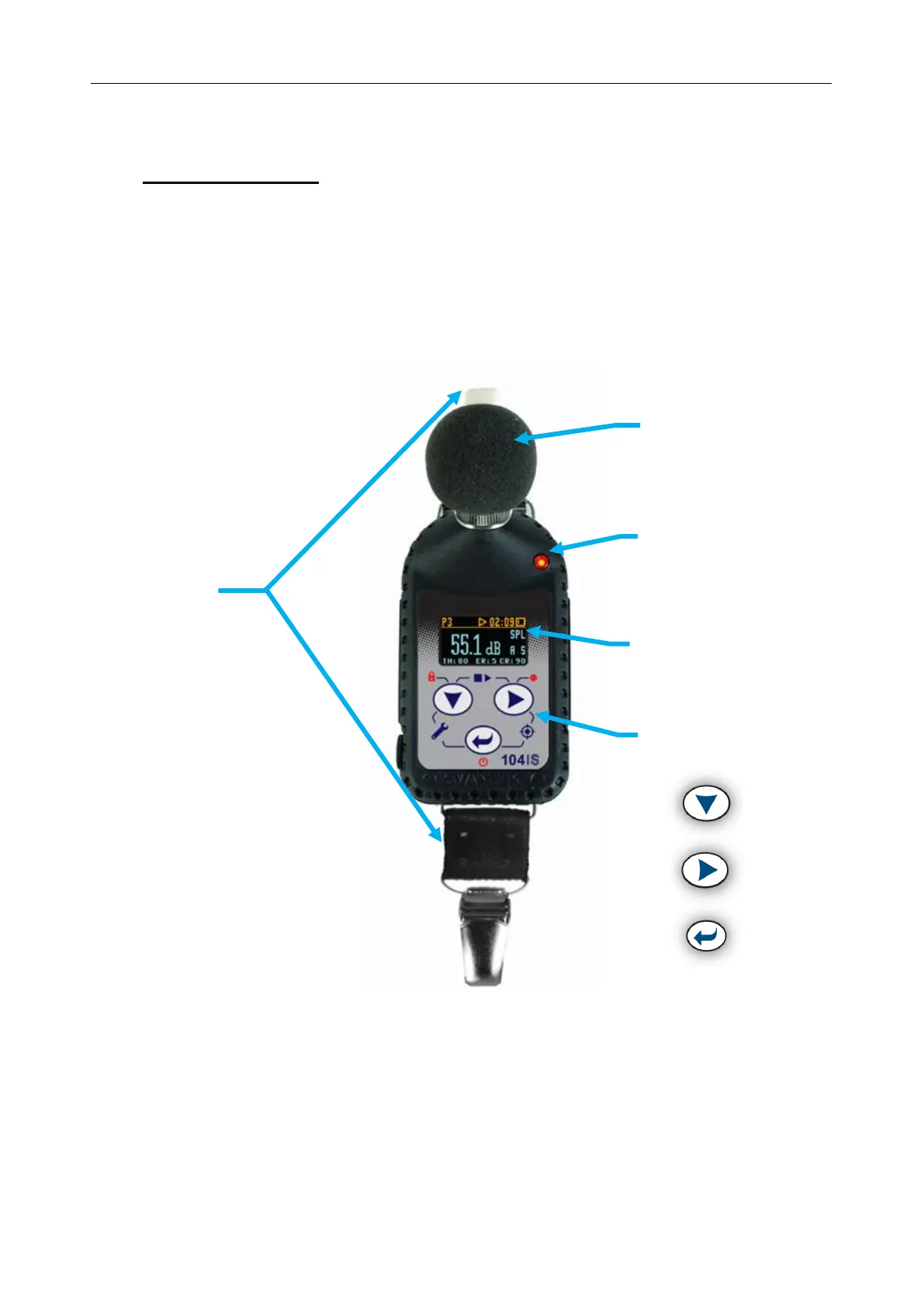

Figure 3-1 SV 104IS at a glance
Colour display
128 x 64 pixel resolution
LED status indicator
 AMBER: stop mode
 GREEN: measuring
 RED: alarm

SV 27IS microphone
with SA 122IS windshield
Mounting
accessories
suspender clips
Keypad
Three control keys:
SCROLL
PROFILE
ENTER
