Svantek SV 104IS - Event and Wave Recording Configuration Panel; Figure 5-19 Audio Event and Wave Recording Configuration Panels; Recording Options Tab (Optional)

SV 104IS USER’S MANUAL ______________________________________________________
58
5.5.9 Recording options tab (optional)
Event and wave recording are mutually exclusive functions and as such you need to turn off the one
option in order enable the other one.
5.5.9.1 Event and Wave recording configuration panel
Audio Event and Wave Recording may be configured to measure in different “Recording Mode”: See
figure below. For intrinsically safe version of the dosimeter continuous mode is not available, since record
time is limited to 30 seconds maximum per single recording.

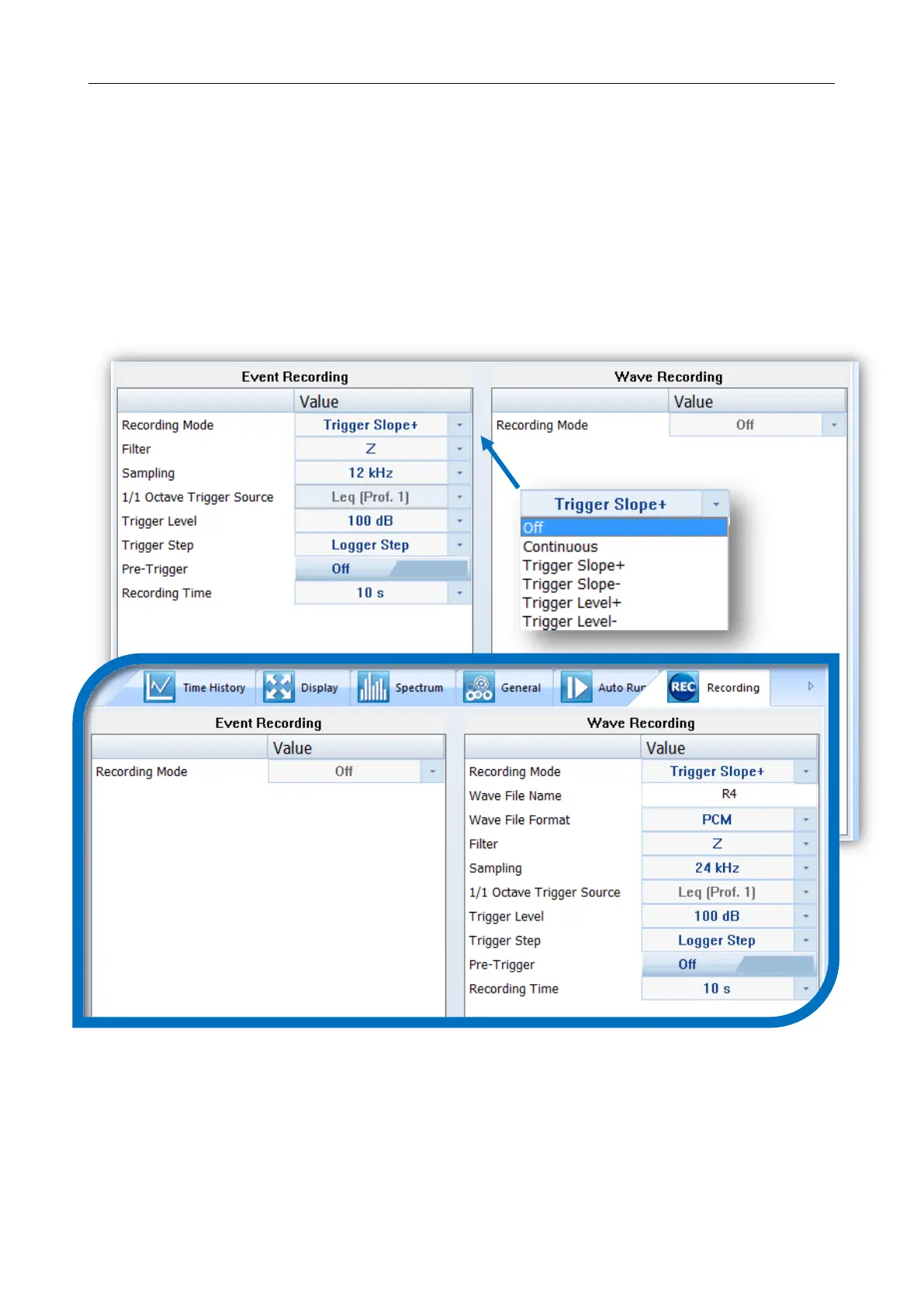

Figure 5-19 Audio Event and Wave recording configuration panels
