Sym JET 4 R 50 Series - Page 87

16. ELECTRICAL EQUIPMENT SYM
16-22

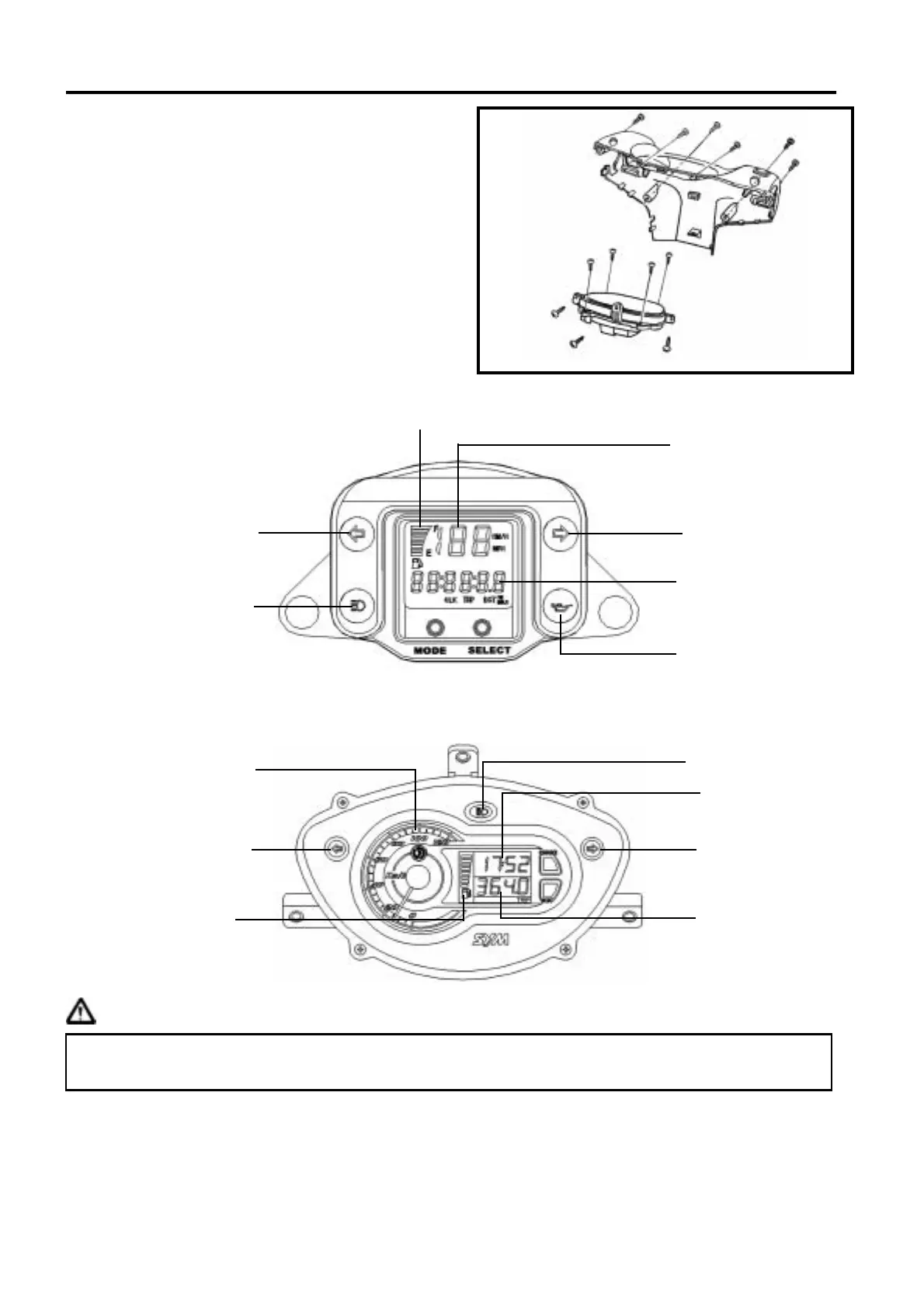

Remove the rear handle cover.
Remove the meter mounting screws.
Take out the meter.
Caution
Installation
Install the meter in reverse order of removal.
Do not wipe the meter or headlight with organic solvent such as gasoline to prevent from
damage these components.
Odometer/Trip
kilometer
Speedometer
Turn Left Signal
Indicator
High Beam Indicator
Fuel meter
Turn Right
Signal
Time meter
Fuel Gauge
Turn Right Signal
Indicator
Turn Left Signal
Indicator
High Beam Indicator
Engine Oil
Warning Light
Speedometer
Clock/Odometer
/
Trip
kilometer
