Sym Joyride125 User Manual

10. ALTERNATOR/STARTING CLUTCH
10-3

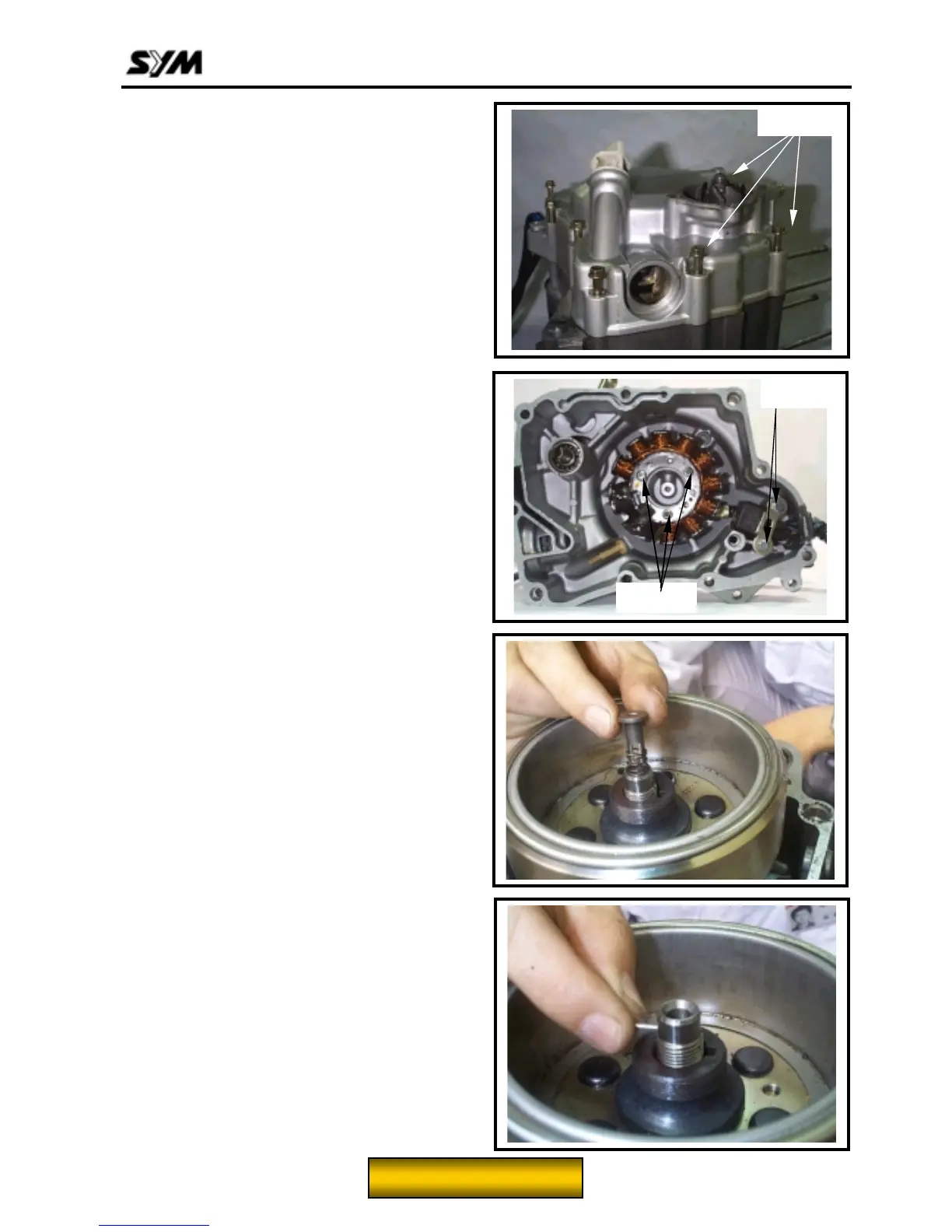

Right Crankcase Cover Removal
Remove 7 bolts from the right crankcase cover.
Remove the right crankcase cover.
Remove dowel pin and gasket.
A.C.G. Set Removal
Remove 2 mounted bolts from pulse generator
and then remove it.
Remove 3 screws from right crankcase cover
and A.C.G. set.
Flywheel Removal
Remove oil through from crankshaft.
Remove the pin from crankshaft.
7 bolts
2 bolts
3 screws
