17.ELECTRICAL SYSTEM
17-18

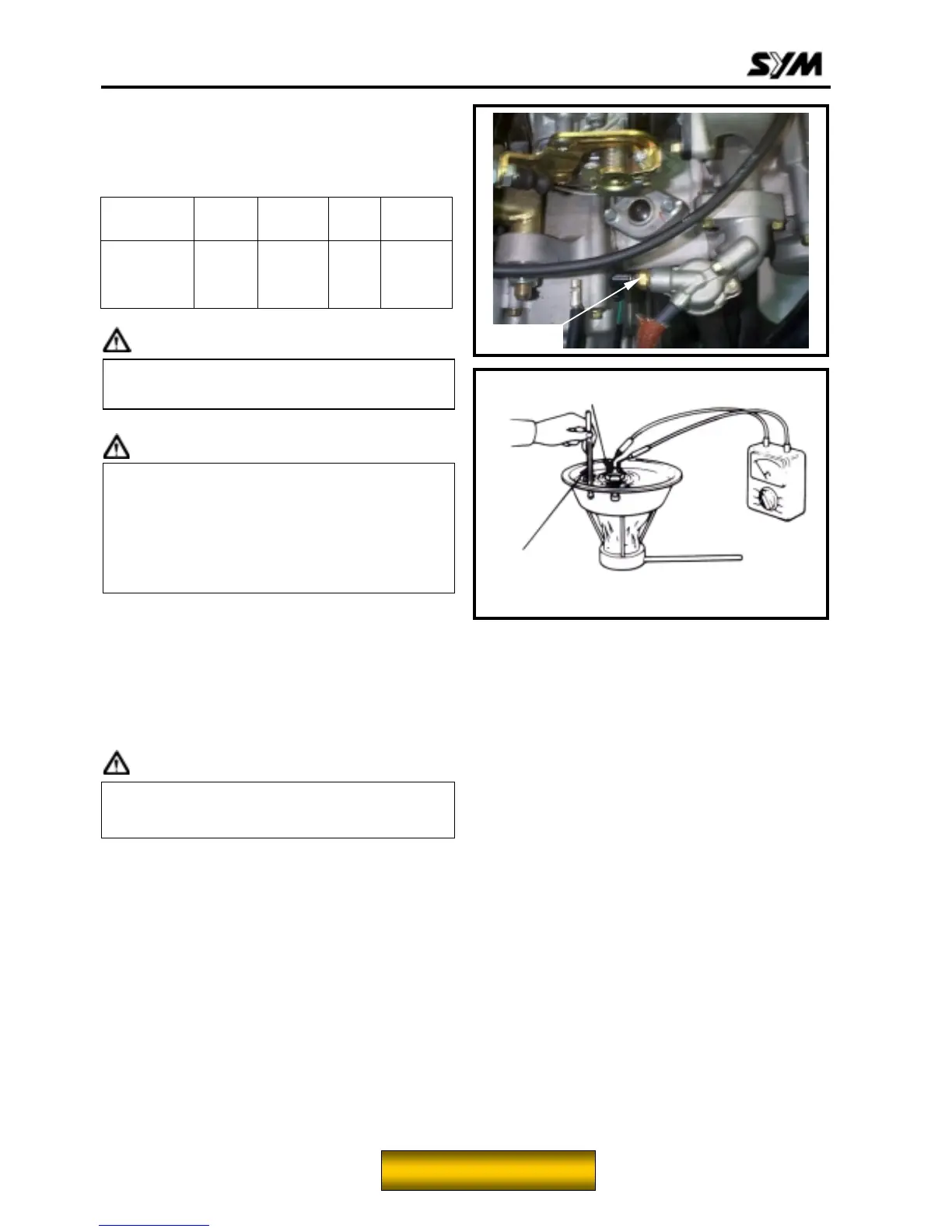

Sensor
Remove the sensor.
Hang the sensor in an oil heater, heat the oil and
measure the resistance at each temperature.
Temperature 50°C 80°C 100°C 120°C
Standard (
Ω)
134~149 47.5~57.0 26~29 14.8~17.2
Caution
Caution
Water Temperature Meter
Disconnect the water temperature meter and
connect it to engine ground.
Turn on the main switch.
The needle of the meter should move to other
end, H position.
Caution
z
Engine oil should be used as a heating
medium as the test temperature must be
higher than 100℃.
z
Contacting the container wall by the
thermometer and the sensor may result in
wrong readings.
Do not ground the water temperature more
than 5 seconds, or the meter will be damaged.
Sensor
Sensor
Thermometer
Sensor
Wear gloves and goggles when performing
this test.
