11. CRANKSHAFT/CRANKCASE
11-3

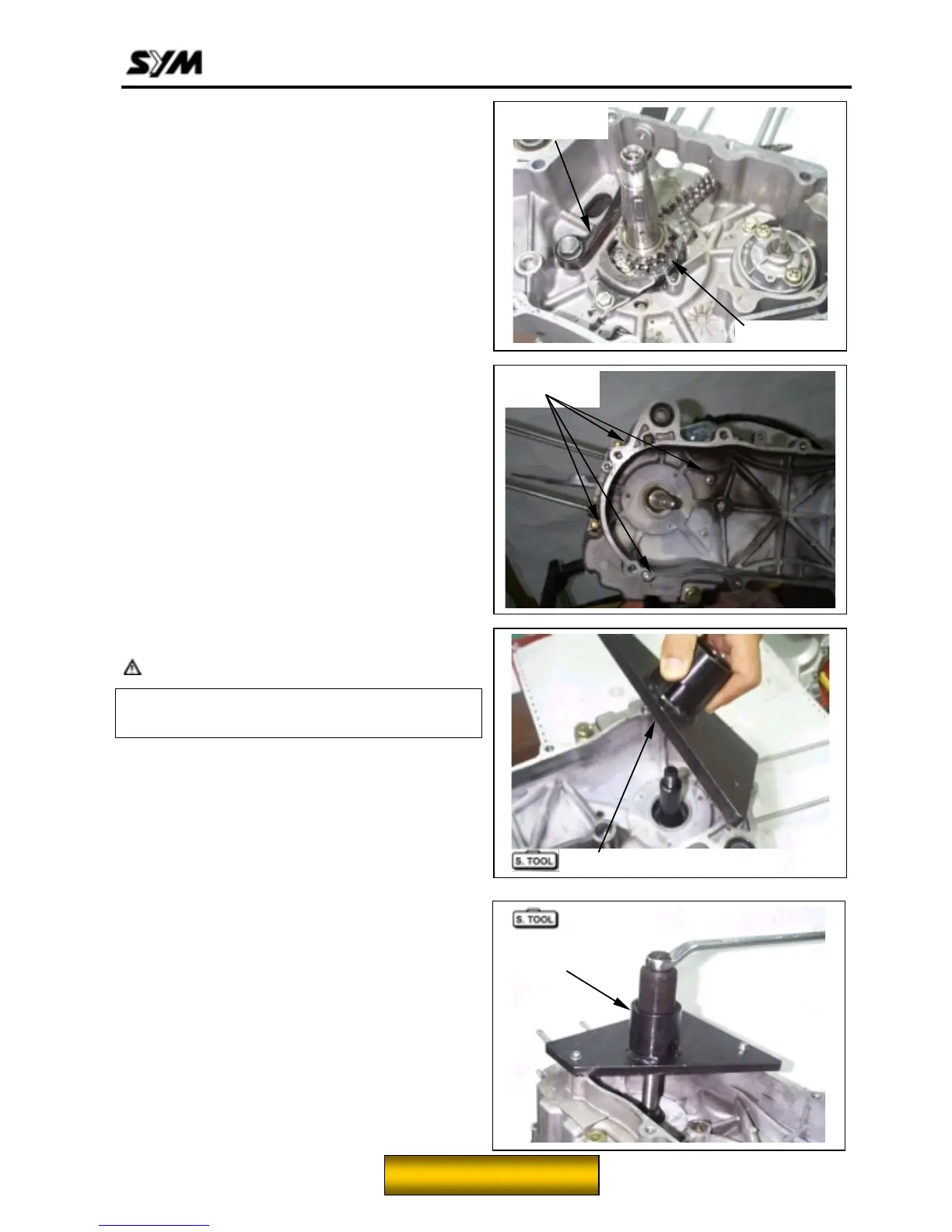

Disassembly of crankcase
Remove the cam chain.
Loosen the bolt and remove the tensioner.
Loosen seven bolts on the crankcase.
Place right crankshaft case downward and lift up
crankcase.
Caution
•
Care should be taken not to damage the
contact surfaces.
Refer to chapter 18: Special tools
Special tool : R/L. crank case
disassemble/install tool
SYM-1120000-H9A
Bolt
×
××
×
7
R/L. crank disassemble tool
R/L. crank
disassemble tool
Cam chain
Tensioner
