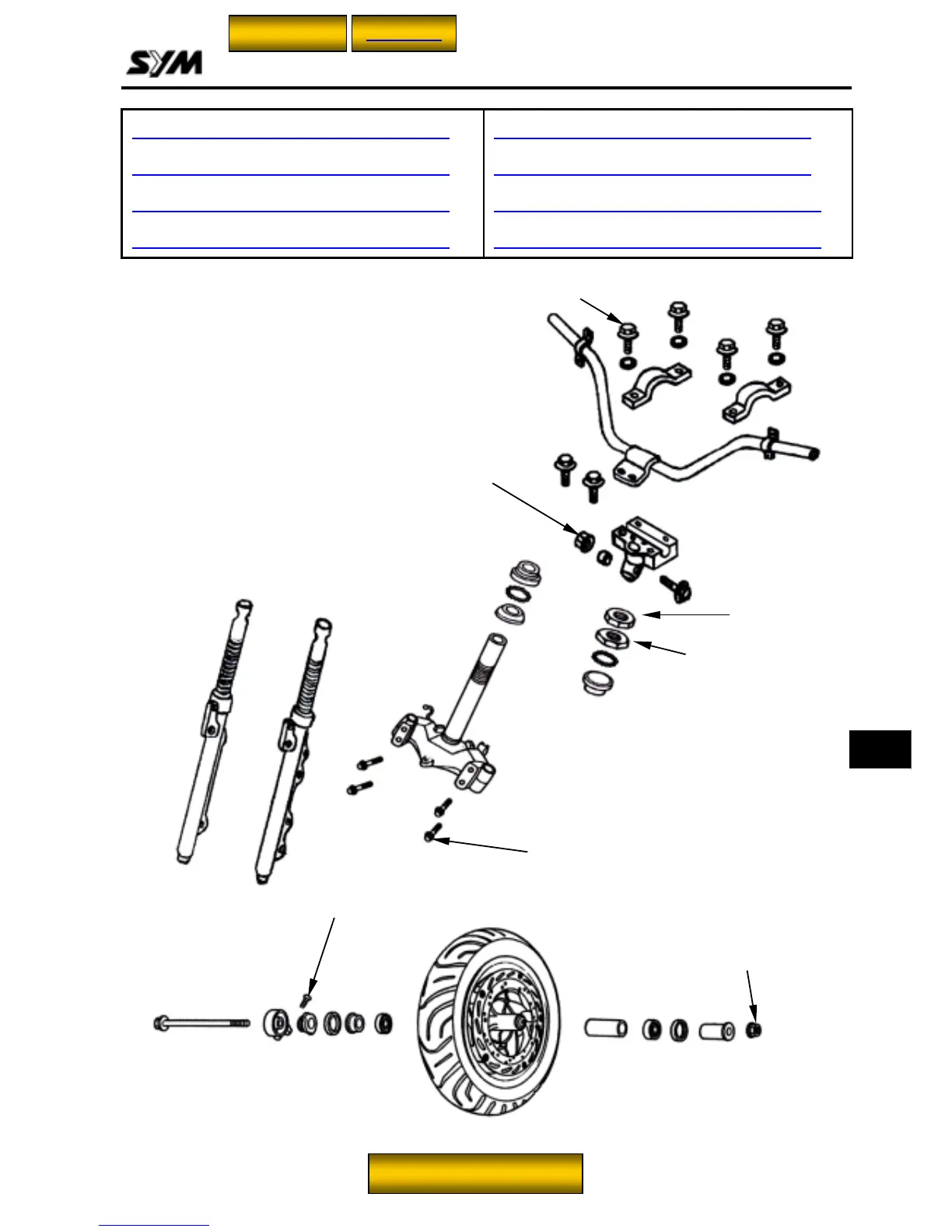

15. STEERING/FRONT WHEEL/FRONT BRAKE/FRONT CUSHION
15-1
Mechanical Illustration.................. 15-1 Front Wheel....................................15-6
Operational Precautions............... 15-2 Front Brake.....................................15-9
Trouble Diagnosis......................... 15-2 Front Shock Absorber...................15-10
Steering Handlebar ....................... 15-3 Front Fork/Steering .......................15-11
15
2.4~3.0 kgf-m
4.0~5.0 kgf-m
2.4~3.0 kgf-m
10.0~12.0 kgf-m
0.15~0.3 kgf-m
0.2~0.3 kgf-m
1.0~2.0 kgf-m
