Sym Joyride125 - Digital Meters Trouble Diagnosis

17.ELECTRICAL SYSTEM
17-19
Gauges
Digital meters trouble diagnosis

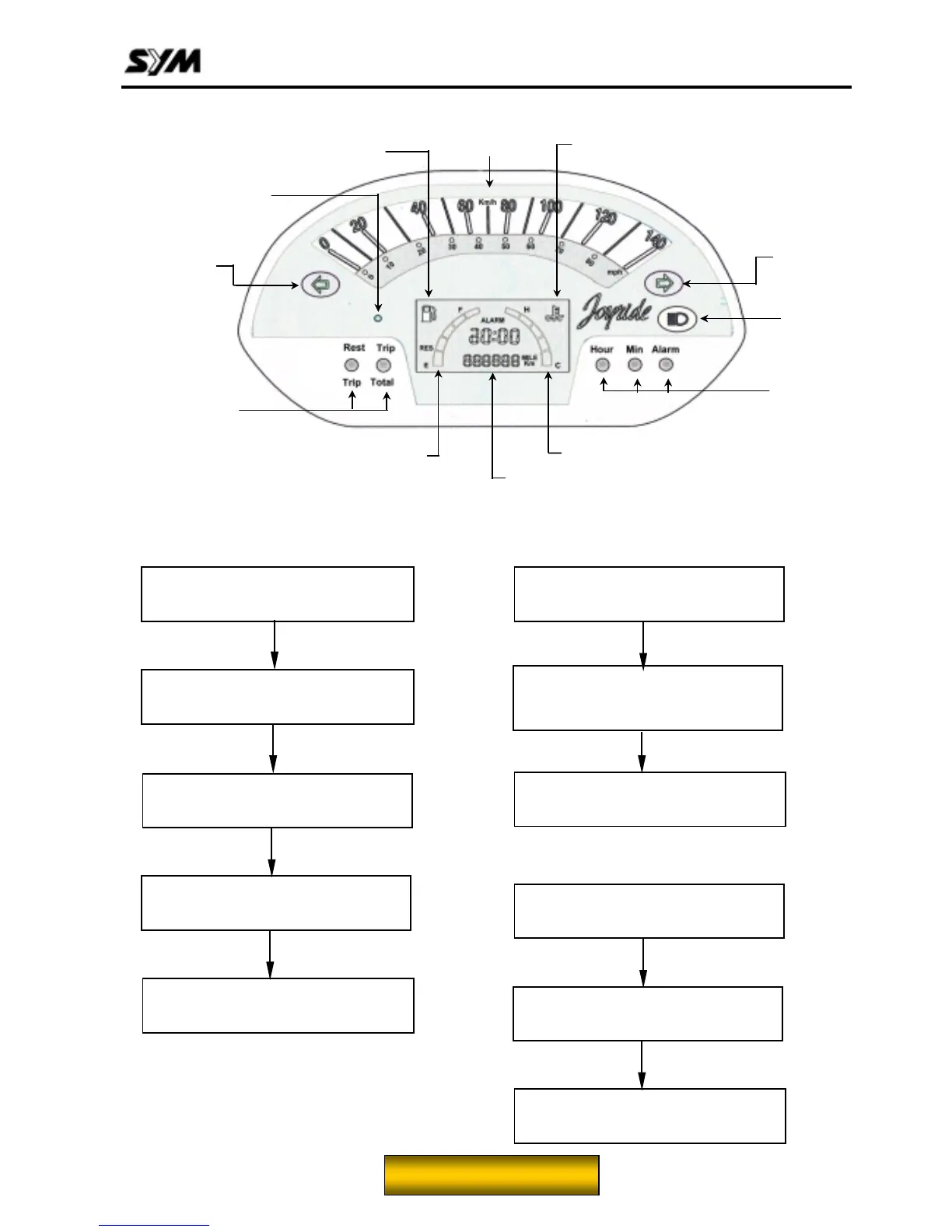

1. The meter doesn’t indicate
2.The monitor indicates but doesn’t work:
3.Water temperature is too high
Check if the main switch is ON
Check the White/Green wire for
loosening
Check the Red wire for loosening
Check the fuse in the fuse box for
broken
Water temperature
gauge
High Beam
Indicator
Fuel
Gauge
Turn Signal
Indicator
Turn Signal
Indicator
Water
temperature
Odometer
Fuel Warning
Indicator
S
p
eedometer
Fuel Indicator
Odometer set
btt
Alarm set
button
Replace a new one
Turn off the main switch then turn
on again
Discount the Red wire of wire
harness 10 seconds and connect
it a
g
ain
Replace a new one
Check if the cooling fan works
Check if the coolant in the reserve
tank is enough
Replace a new one
