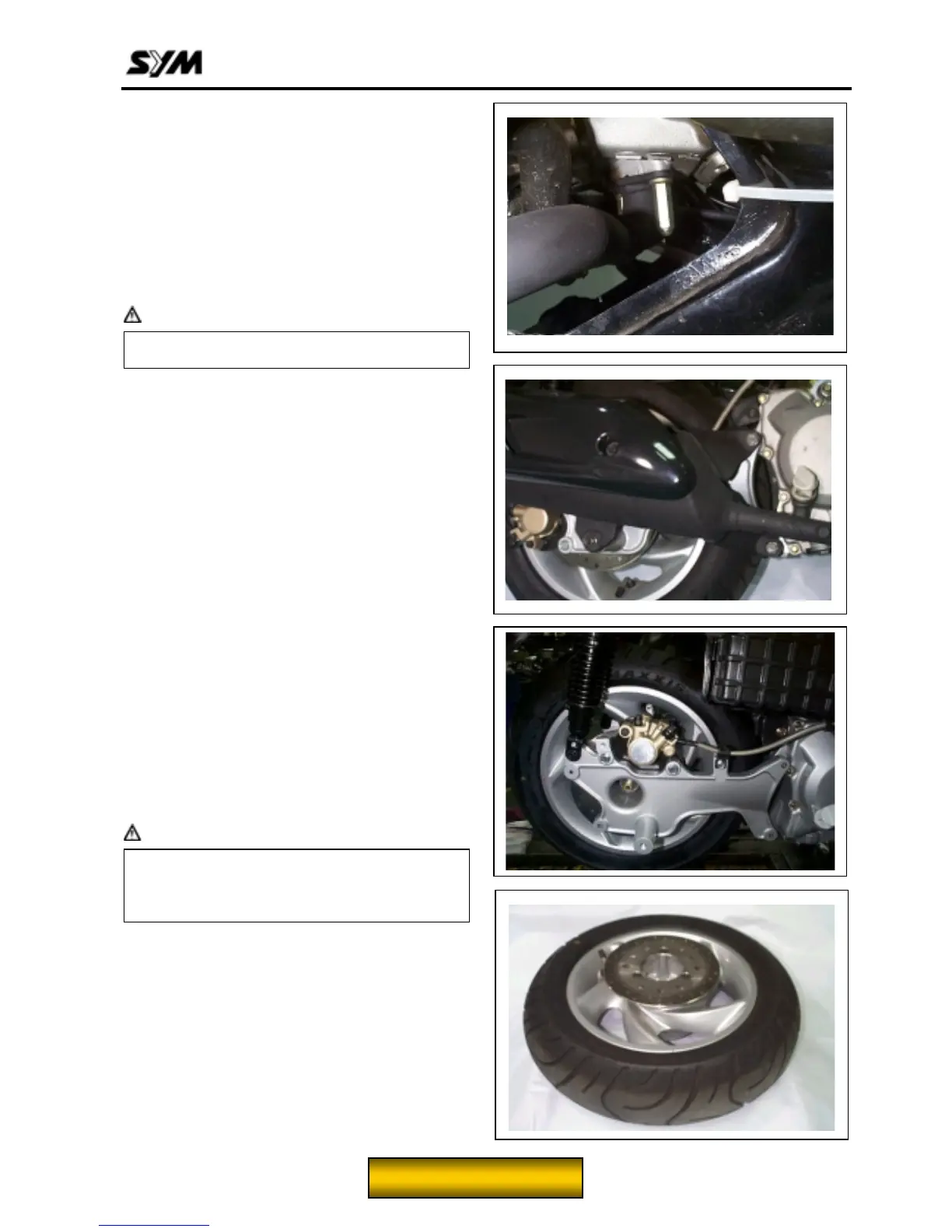

16. REAR WHEEL/REAR BRAKE/REAR CUSHION
16-3
Muffler
Removal
Loosen the front lock nuts of the muffler (nut x2).
Loosen the lock bolts (bolt x 3).
Remove the exhaust pipe.
Installation
In reverse order of the removal.
Caution
Torque Value
For lock bolt: 3.2 ~ 3.8 kgf-m
For lock nut: 2.7 ~ 3.3 kgf-m
Rear Wheel
Removal
Remove the rear cover (screw x 4).
Remove the right side cover (screw x 3).
Remove the muffler (bolt x 3, nut x 2).
Remove the brake hose clamp (bolt x 2).
Remove the brake cllipper (bolt x 2).
Remove the lower bolts of the rear cushion (bolt
x 1).
Remove the nut of the rear wheel shaft (nut x 1).
Remove the rear rocker arm.
Remove the rear wheel.
Caution
Inspection
Inspection on Brake Disc
Visually check disc for any deformation and
damage.
Measure the thickness of the lining at several
places. Replace if wear is beyond the specified
value.
Allowable thickness: 2.0 mm
Replace the front gasket if worn or deformed.
When the brake caliper is removed, never
tamper with the brake lever to avoid that the
brake pad is being squeezed out.
